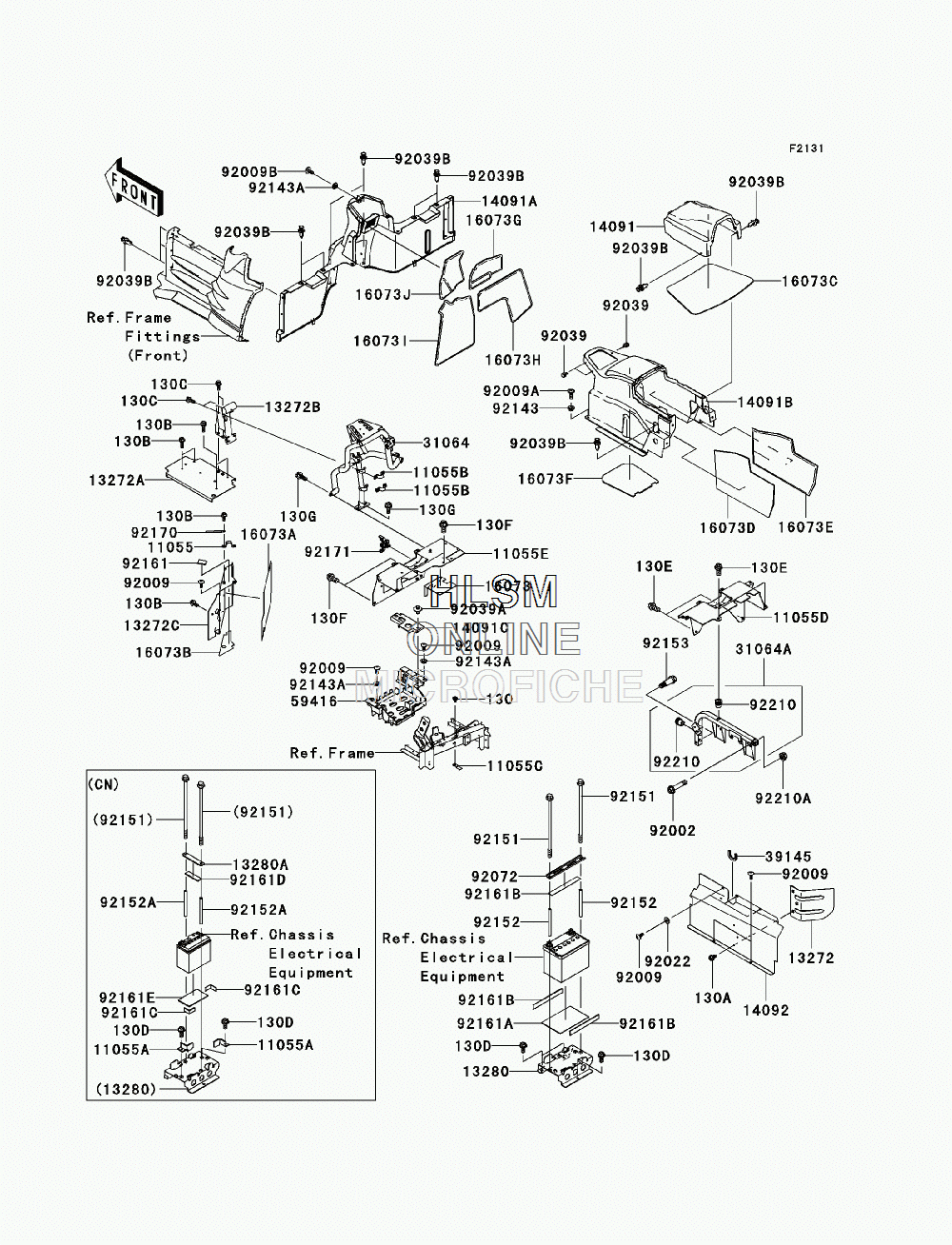

FRAME FITTINGS (REAR) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SBFA) - 2011 года выпуска
-
№АртикулНазвание
-
1105511055-0419 BRACKETBRACKET
-
11055A11055-0433 BRACKET (CANADA ONLY)BRACKET (CANADA ONLY)
-
11055B11055-0896 BRACKETBRACKET
-
11055C11055-1384 BRACKETBRACKET
-
11055D11055-1409 BRACKET, SEAT LOCK PLATE (RIGHT)BRACKET, SEAT LOCK PLATE (RIGHT)
-
11055E11055-1921 BRACKET, SEAT LOCK PLATE (LEFT)BRACKET, SEAT LOCK PLATE (LEFT)
-
1327213272-0318 PLATEPLATE
-
13272A13272-0421 PLATE, TUNNEL PLATEPLATE, TUNNEL PLATE
-
13272B13272-0434 PLATEPLATE
-
13272C13272-0731 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
1328013280-0361 HOLDER, BATTERYHOLDER, BATTERY
-
13280A13280-7505 HOLDER, BATTERY (CANADA ONLY)HOLDER, BATTERY (CANADA ONLY)
-
1409114091-0975-6Z COVER, CONSOLE CENTER (F.BLACK)COVER, CONSOLE CENTER (F.BLACK)
-
14091A14091-0982-6Z COVER, SEAT (F.BLACK)COVER, SEAT (F.BLACK)
-
14091B14091-1724-6Z COVER, CONSOLE CENTER (F.BLACK)COVER, CONSOLE CENTER (F.BLACK)
-
14091C14091-1761 COVER, ELECTRICCOVER, ELECTRIC
-
1409214092-0051 COVER, HEATCOVER, HEAT
-
1607316073-0097 INSULATOR, SEAT BRACKETINSULATOR, SEAT BRACKET
-
16073A16073-0112 INSULATOR, EXHAUST PIPEINSULATOR, EXHAUST PIPE
-
16073B16073-0113 INSULATOR, EXHAUST PIPEINSULATOR, EXHAUST PIPE
-
16073C16073-0115 INSULATOR, A/C (UPPER)INSULATOR, A/C (UPPER)
-
16073D16073-0116 INSULATOR, CONSOLE (LEFT)INSULATOR, CONSOLE (LEFT)
-
16073E16073-0117 INSULATOR, CONSOLE (RIGHT)INSULATOR, CONSOLE (RIGHT)
-
16073F16073-0118 INSULATOR, CONSOLE (UPPER)INSULATOR, CONSOLE (UPPER)
-
16073G16073-0119 INSULATOR (UPPER)INSULATOR (UPPER)
-
16073H16073-0120 INSULATOR (RIGHT)INSULATOR (RIGHT)
-
16073I16073-0121 INSULATOR (LEFT) (LOWER)INSULATOR (LEFT) (LOWER)
-
16073J16073-0122 INSULATOR (LEFT) (UPPER)INSULATOR (LEFT) (UPPER)
-
3106431064-0193 PIPE-COMP, SHIFTPIPE-COMP, SHIFT
-
31064A31064-0201 PIPE-COMP, SEAT RAILPIPE-COMP, SEAT RAIL
-
3914539145-0040 TRIM-SEAL, L=120TRIM-SEAL, L=120
-
5941659416-0018 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1740 BOLT, FLANGED, 10X46BOLT, FLANGED, 10X46
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9203992039-0046 RIVETRIVET
-
130130BA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
130A130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130C130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130D130BA0818 BOLT-FLANGED, 8X18 (USA ONLY)BOLT-FLANGED, 8X18 (USA ONLY)
-
130D130BA0818 BOLT-FLANGED, 8X18 (CANADA ONLY)BOLT-FLANGED, 8X18 (CANADA ONLY)
-
130E130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130F130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130G130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
92039A92039-0086 RIVETRIVET
-
92039B92039-1229 RIVETRIVET
-
9207292072-0128 BAND, BATTERY (UPPER) (USA ONLY)BAND, BATTERY (UPPER) (USA ONLY)
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215192151-1788 BOLT, 8X177BOLT, 8X177
-
9215292152-0794 COLLAR, 10.22X12.7X158.8 (USA ONLY)COLLAR, 10.22X12.7X158.8 (USA ONLY)
-
92152A92152-0841 COLLAR, 10.2X12.7X150.6 (CANADA ONLY)COLLAR, 10.2X12.7X150.6 (CANADA ONLY)
-
9215392153-1742 BOLT, FLANGED, 10X38BOLT, FLANGED, 10X38
-
9216192161-0273 DAMPERDAMPER
-
92161A92161-0578 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161B92161-0579 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161C92161-0580 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
92161D92161-0844 DAMPER, 88X25X4 (CANADA ONLY)DAMPER, 88X25X4 (CANADA ONLY)
-
92161E92161-0846 DAMPER, 130X74X4 (CANADA ONLY)DAMPER, 130X74X4 (CANADA ONLY)
-
9217092170-1925 CLAMPCLAMP
-
9217192171-0453 CLAMPCLAMP
-
9221092210-0573 NUT, 10MMNUT, 10MM
-
92210A92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
