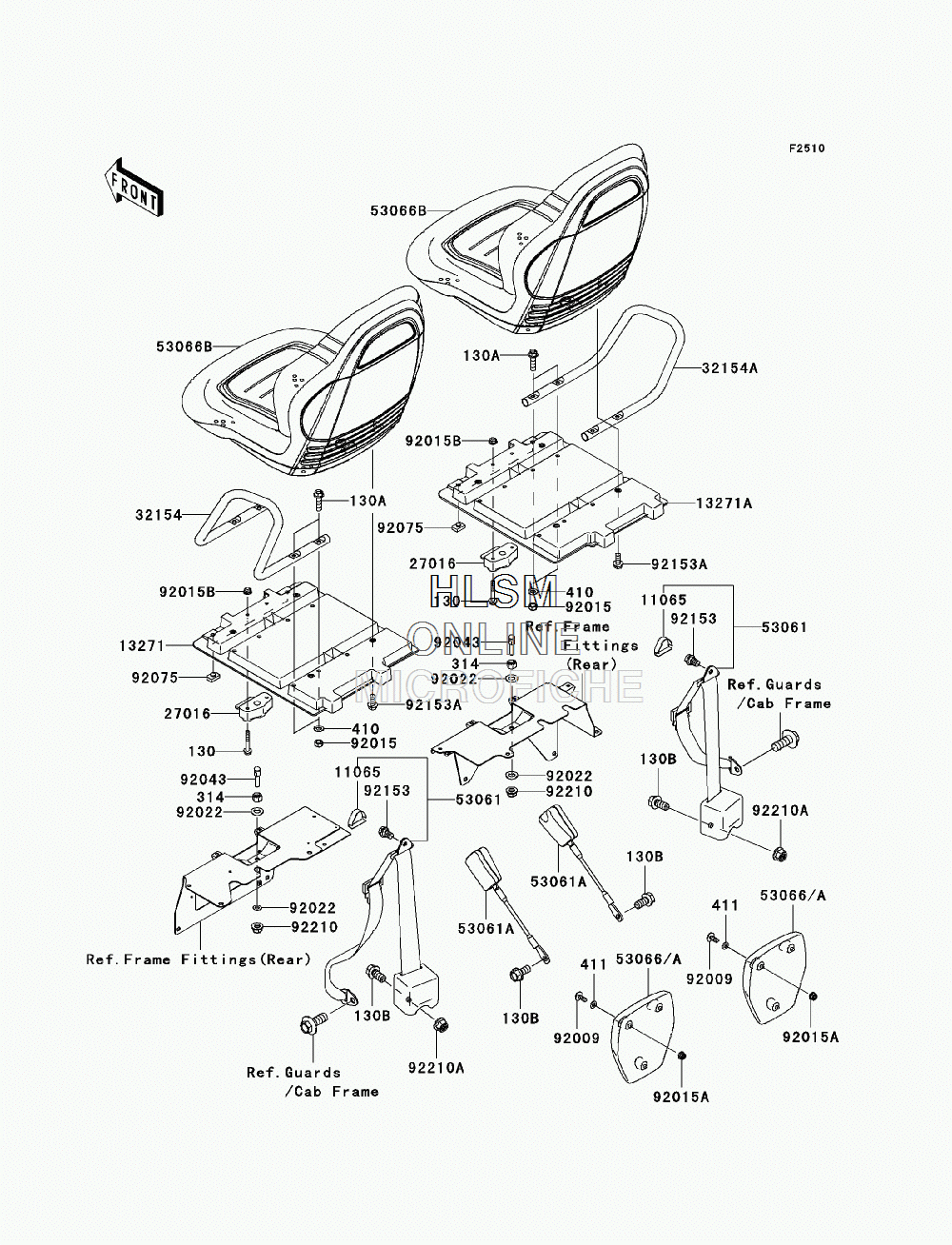

SEAT для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SBFA) - 2011 года выпуска
-
№АртикулНазвание
-
130130CA0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
130A130CA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130B130CA1225 BOLT-FLANGED, 12X25BOLT-FLANGED, 12X25
-
314314AA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
411411AB0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
1106511065-0287 CAP, SEAT BELTCAP, SEAT BELT
-
1327113271-0894-6Z PLATE, SEAT (LOWER) (LEFT) (F.BLACK)PLATE, SEAT (LOWER) (LEFT) (F.BLACK)
-
13271A13271-0895-6Z PLATE, SEAT (LOWER) (RIGHT) (F.BLACK)PLATE, SEAT (LOWER) (RIGHT) (F.BLACK)
-
2701627016-3758 LOCK-ASSY, SEAT, FRONT & REARLOCK-ASSY, SEAT, FRONT & REAR
-
3215432154-1249 PIPE, SEAT PLATE (LEFT)PIPE, SEAT PLATE (LEFT)
-
32154A32154-1250 PIPE, SEAT PLATE (RIGHT)PIPE, SEAT PLATE (RIGHT)
-
5306153061-0007 BELT-SEATBELT-SEAT
-
53061A53061-0010 BELT-SEATBELT-SEAT
-
53066A53066-0163-6D SEAT-ASSY, PAD HEAD (BLACK)SEAT-ASSY, PAD HEAD (BLACK)
-
53066B53066-0195 SEAT-ASSYSEAT-ASSY
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1124 NUT, LOCK, 8MMNUT, LOCK, 8MM
-
92015A92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015B92015-1699 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
9204392043-0126 PINPIN
-
9207592075-1153 DAMPER, SEATDAMPER, SEAT
-
9215392153-1740 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
92153A92153-1924 BOLTBOLT
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0603 NUT, 12MMNUT, 12MM
