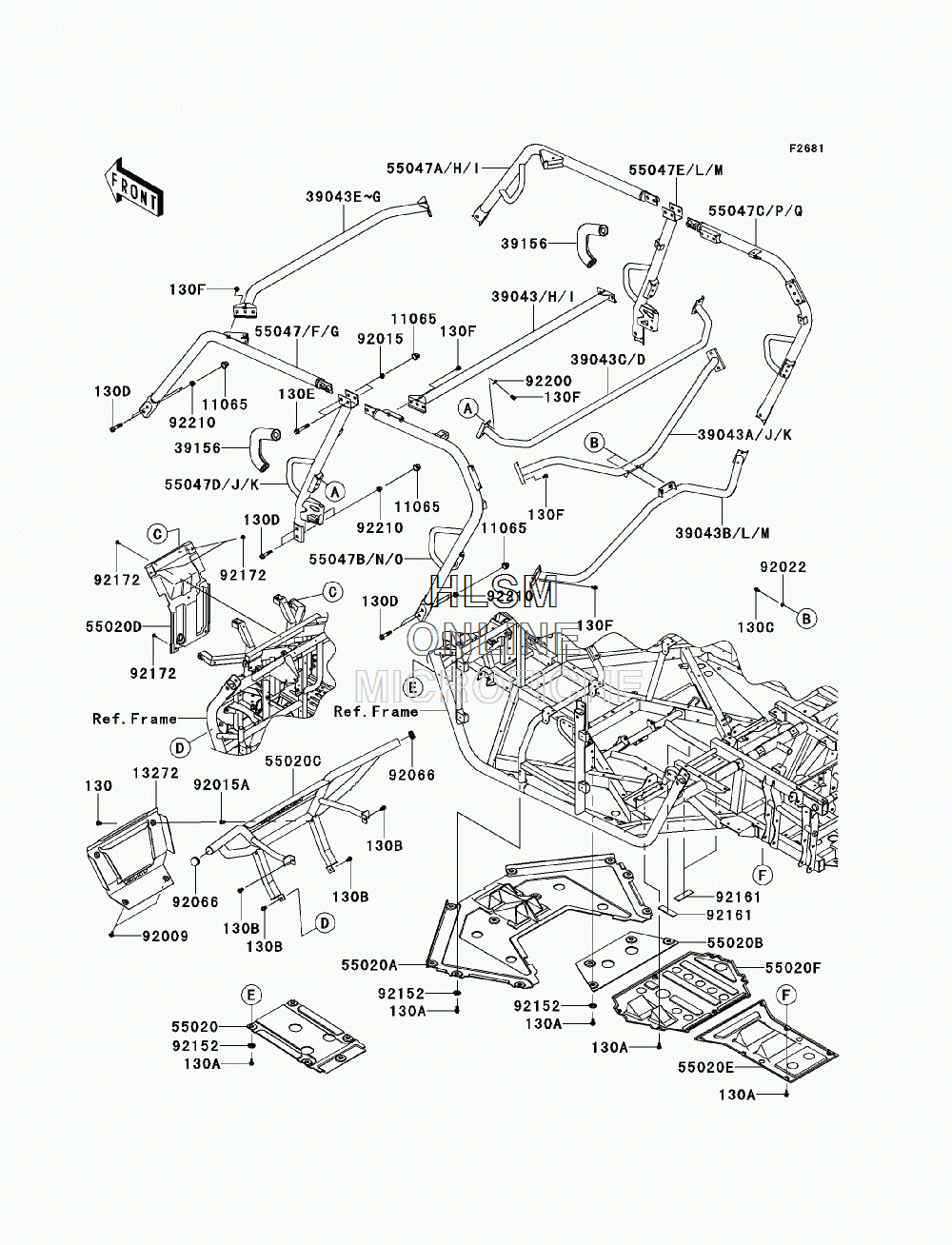

GUARD(S) / CAB FRAME для Kawasaki TERYX4 750 4X4 EPS (KRT750ACFA) - 2012 года выпуска
-
№АртикулНазвание
-
130130AB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130BA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130C130BB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130D130BB1260 BOLT-FLANGED, 12X60BOLT-FLANGED, 12X60
-
130E130BB1275 BOLT-FLANGED, 12X75BOLT-FLANGED, 12X75
-
130F130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
1106511065-0751 CAPCAP
-
1327213272-0994-388 PLATE, T.BLACKPLATE, T.BLACK
-
3904339043-0322-388 CROSSMEMBER-COMP, CNT, UPPER, (T.BLACK)CROSSMEMBER-COMP, CNT, UPPER, (T.BLACK)
-
39043A39043-0323-388 CROSSMEMBER-COMP, REAR, UPPER, (T.BLACK)CROSSMEMBER-COMP, REAR, UPPER, (T.BLACK)
-
39043B39043-0324-388 CROSSMEMBER-COMP, REAR, LOWER, (T.BLACK)CROSSMEMBER-COMP, REAR, LOWER, (T.BLACK)
-
39043D39043-0325-388 CROSSMEMBER-COMP, CNT, LOWER, (T.BLACK)CROSSMEMBER-COMP, CNT, LOWER, (T.BLACK)
-
39043E39043-0327-388 CROSSMEMBER-COMP, FRONT, UPPER, (T.BLACK)CROSSMEMBER-COMP, FRONT, UPPER, (T.BLACK)
-
3915639156-0764 PADPAD
-
5502055020-0723 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0724 GUARD, SKID, FRONT MIDDLEGUARD, SKID, FRONT MIDDLE
-
55020B55020-0726 GUARD, SKID, CNT, FRONTGUARD, SKID, CNT, FRONT
-
55020C55020-0727-388 GUARD, FRONT, (T.BLACK)GUARD, FRONT, (T.BLACK)
-
55020D55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020E55020-0812 GUARD, SKID, REARGUARD, SKID, REAR
