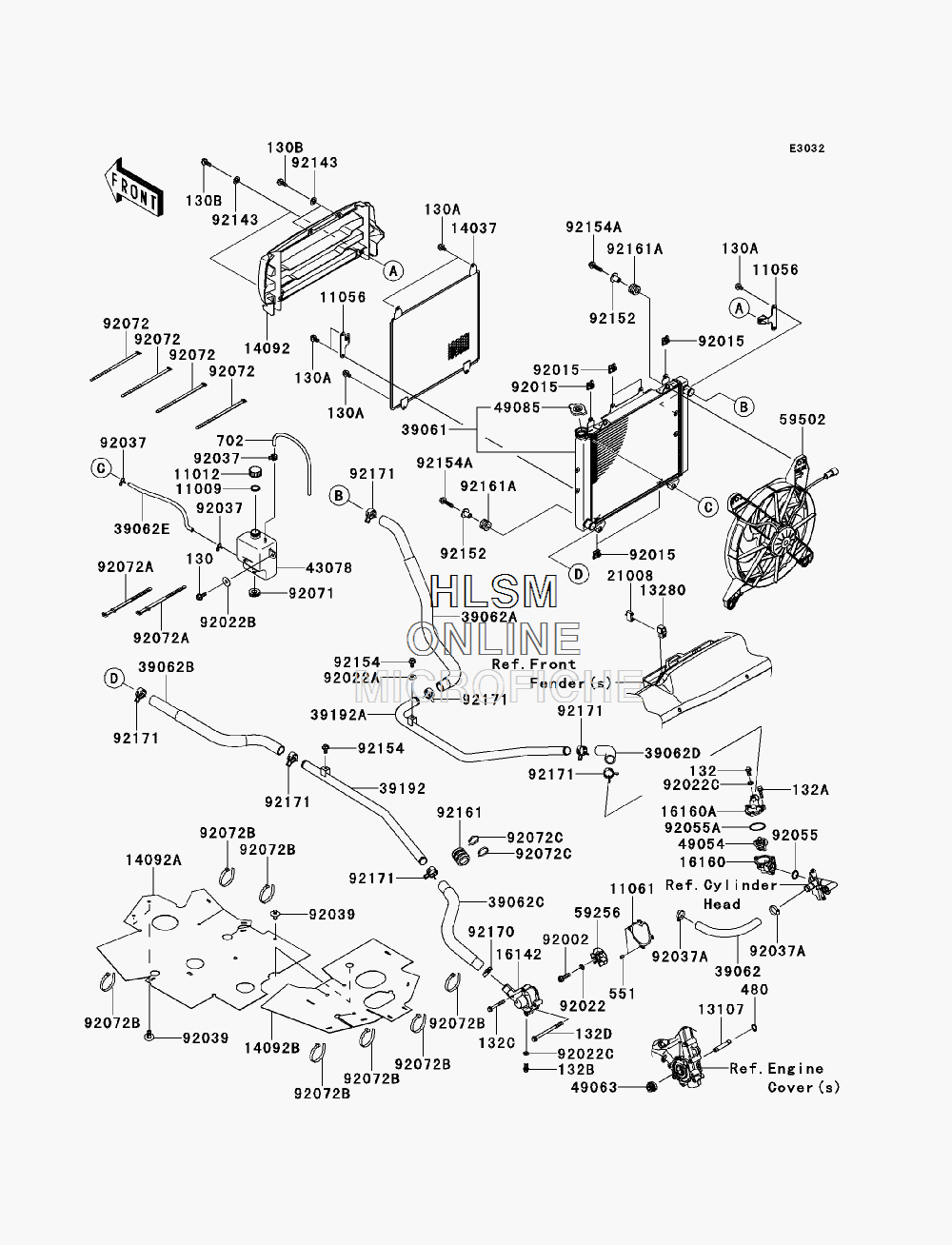

RADIATOR для Kawasaki TERYX4 750 4X4 EPS (KRT750ACFA) - 2012 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130B130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132B132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132C132BD0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132D132BD0680 BOLT-FLANGED-SMALL, 6X80BOLT-FLANGED-SMALL, 6X80
-
480480J1200 CIRCLIP-TYPE-C, 12MMCIRCLIP-TYPE-C, 12MM
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
702702A051375 TUBE-RUBBER, 5X8X1375TUBE-RUBBER, 5X8X1375
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105611056-0722 BRACKETBRACKET
-
1106111061-0731 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1310713107-0719 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-0739 SCREENSCREEN
-
1409214092-0086-6Z COVER, RADIATOR, (F.BLACK)COVER, RADIATOR, (F.BLACK)
-
14092A14092-0900 COVER, FRONTCOVER, FRONT
-
14092B14092-0901 COVER, REARCOVER, REAR
-
1614216142-0705 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-0189 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
16160A16160-0225 BODY, THERMOSTAT, UPPERBODY, THERMOSTAT, UPPER
-
2100821008-0554 BREAKER, RAD. FAN, 20ABREAKER, RAD. FAN, 20A
-
3906139061-0568 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0316 HOSE-COOLING, FRONT HEAD-THERMOHOSE-COOLING, FRONT HEAD-THERMO
-
39062A39062-0578 HOSE-COOLING, RADIATOR INHOSE-COOLING, RADIATOR IN
-
39062B39062-0579 HOSE-COOLING, RADIATOR OUTHOSE-COOLING, RADIATOR OUT
-
39062C39062-0580 HOSE-COOLING, WATER PUMP INHOSE-COOLING, WATER PUMP IN
-
39062D39062-0581 HOSE-COOLING, THERMO OUTHOSE-COOLING, THERMO OUT
-
39062E39062-0582 HOSE-COOLING, RESERVOIR-RAD.HOSE-COOLING, RESERVOIR-RAD.
-
3919239192-0555 PIPE-WATER, LEFT HANDPIPE-WATER, LEFT HAND
-
39192A39192-0556 PIPE-WATER, RIGHT HANDPIPE-WATER, RIGHT HAND
-
4307843078-0070 RESERVOIRRESERVOIR
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5925659256-0555 IMPELLERIMPELLER
-
5950259502-0557 FAN-ASSYFAN-ASSY
-
9200292002-1154 BOLT, 6X22BOLT, 6X22
-
9201592015-1487 NUTNUT
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1565 WASHER, 6.5X16X2WASHER, 6.5X16X2
-
92022B92022-165 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
92022C92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9203992039-0086 RIVETRIVET
-
9205592055-1081 RING-O, 22.1X2.4RING-O, 22.1X2.4
-
92055A92055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207192071-1115 GROMMETGROMMET
-
9207292072-032 BAND, L=218BAND, L=218
-
92072A92072-056 BAND, L=186BAND, L=186
-
92072B92072-1237 BAND, L=250BAND, L=250
-
92072C92072-1239 BAND, L=188BAND, L=188
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1512 COLLARCOLLAR
-
9215492154-0485 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
92154A92154-0498 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216192161-1111 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92161A92161-1349 DAMPERDAMPER
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-0060 CLAMP, COOLING HOSECLAMP, COOLING HOSE
