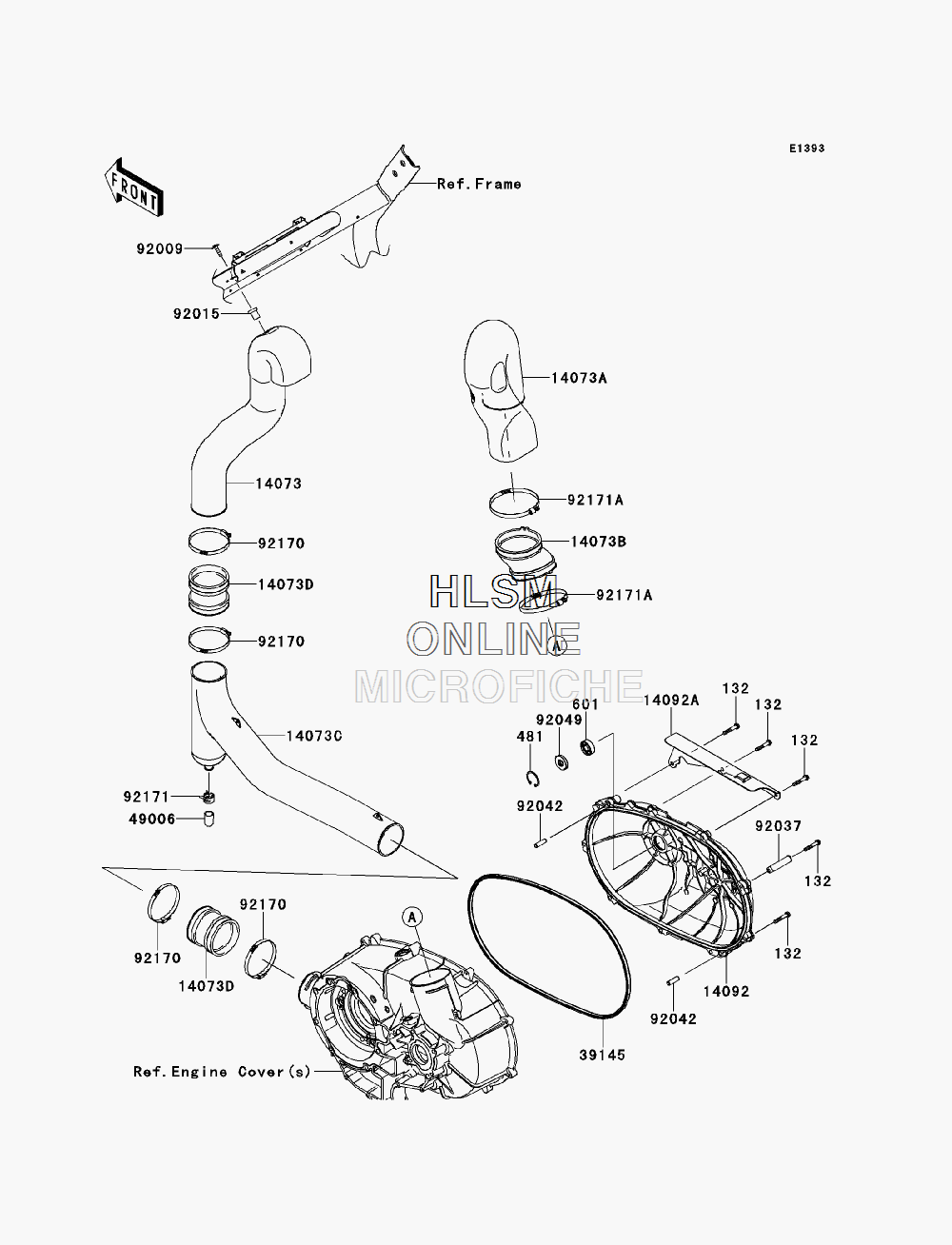

CONVERTER COVER для Kawasaki TERYX4 750 4X4 EPS REALTREE AGP HD (KRT750DCF) - 2012 года выпуска
-
№АртикулНазвание
-
132132BA0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
481481J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
601601A6201 BEARING-BALLBEARING-BALL
-
1407314073-0305 DUCT, INTAKEDUCT, INTAKE
-
14073A14073-0306 DUCT, EXHAUSTDUCT, EXHAUST
-
14073B14073-0307 DUCT, JOINTDUCT, JOINT
-
14073C14073-0716 DUCT, INTAKE, LWRDUCT, INTAKE, LWR
-
14073D14073-1805 DUCT, JOINTDUCT, JOINT
-
1409214092-0266 COVER, CVTCOVER, CVT
-
14092A14092-0924 COVER, HEAT GUARDCOVER, HEAT GUARD
-
3914539145-0043 TRIM-SEAL, CVT COVERTRIM-SEAL, CVT COVER
-
4900649006-0555 BOOTBOOT
-
9200992009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
9201592015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
9203792037-1993 CLAMPCLAMP
-
9204292042-050 PIN, DOWEL, 8X28PIN, DOWEL, 8X28
-
9204992049-0167 SEAL-OIL, 12X32X5.8SEAL-OIL, 12X32X5.8
-
9217092170-1763 CLAMPCLAMP
-
9217192171-1277 CLAMPCLAMP
-
92171A92171-1383 CLAMPCLAMP
