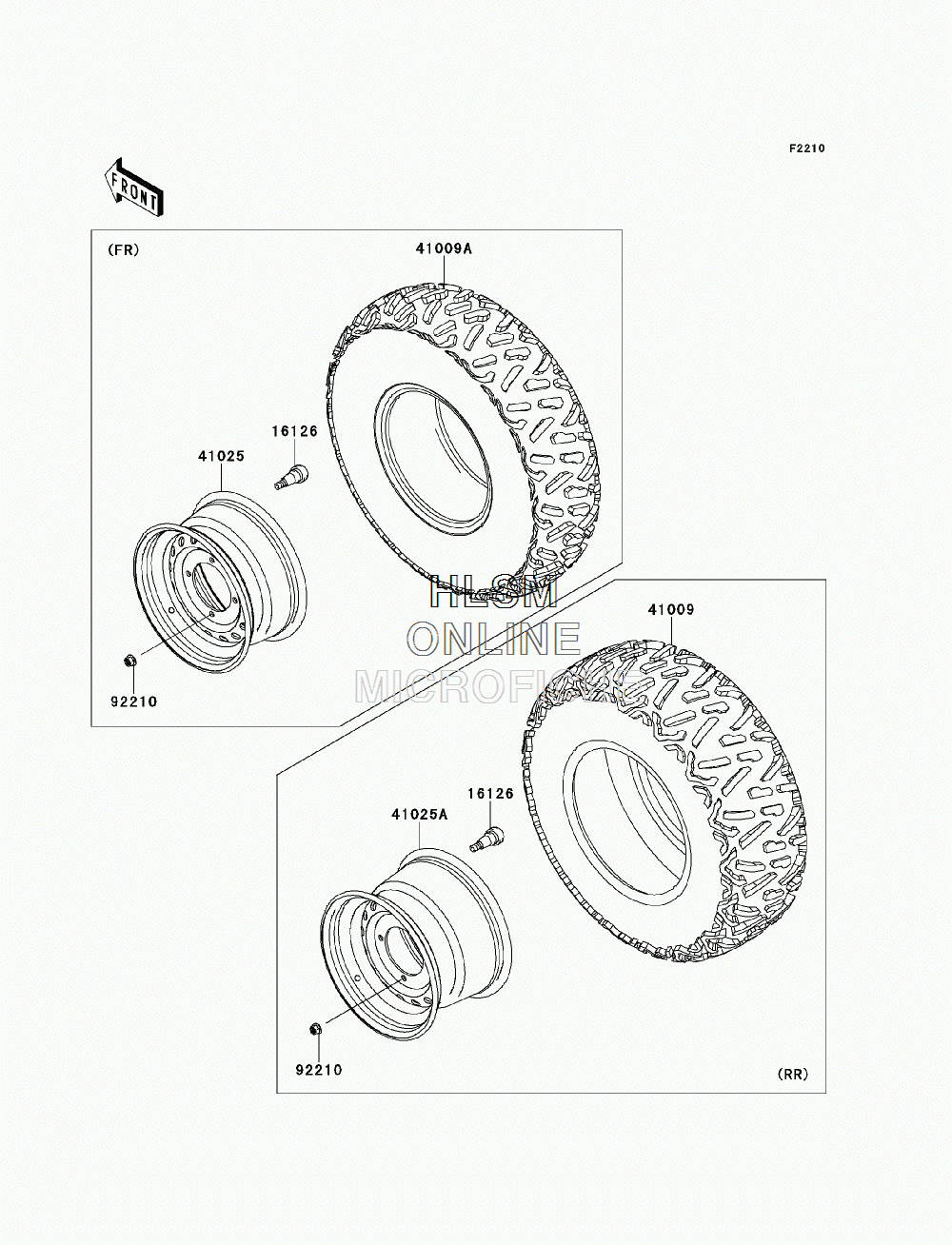

WHEELS - TIRES для Kawasaki TERYX4 750 4X4 EPS REALTREE AGP HD (KRT750DCF) - 2012 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-0506 TIRE, REAR, 26X11.00-12, MU10TIRE, REAR, 26X11.00-12, MU10
-
41009A41009-0511 TIRE, FRONT, 26X9.00R12 6PLY, BIGHORN2TIRE, FRONT, 26X9.00R12 6PLY, BIGHORN2
-
4102541025-0310-16N RIM, FRONT, 12X6.0AT, (CAMOUFLAGE)RIM, FRONT, 12X6.0AT, (CAMOUFLAGE)
-
41025A41025-0311-16N RIM, REAR, 12X8.0AT, (CAMOUFLAGE)RIM, REAR, 12X8.0AT, (CAMOUFLAGE)
-
9221092210-0603 NUT, 12MMNUT, 12MM
