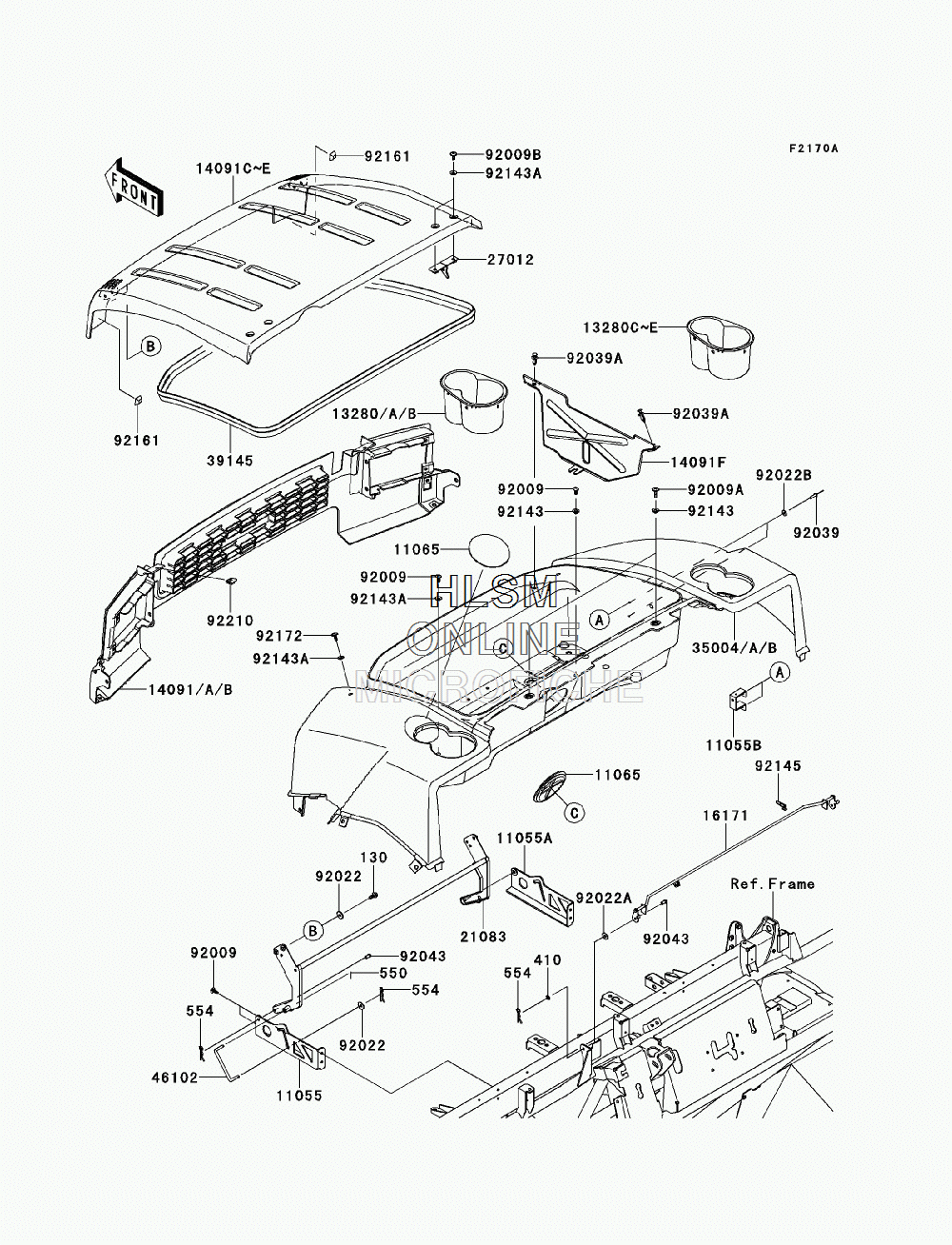

FENDER(S) для Kawasaki MULE 4010 TRANS4X4 DIESEL (KAF950GDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
550550AA1615 PIN-COTTER, 1.6X15PIN-COTTER, 1.6X15
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105511055-0037 BRACKET, HINGE, LEFT HANDBRACKET, HINGE, LEFT HAND
-
11055A11055-0038 BRACKET, HINGE, RIGHT HANDBRACKET, HINGE, RIGHT HAND
-
11055B11055-0124 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1106511065-1053-6Z CAP, (F.BLACK)CAP, (F.BLACK)
-
1328013280-0265-16L HOLDER, CUP HOLDER, LEFT HAND, (D.R.RED) (FOR 16M)HOLDER, CUP HOLDER, LEFT HAND, (D.R.RED) (FOR 16M)
-
13280B13280-0265-31R HOLDER, CUP HOLDER, LEFT HAND, (S.GREEN) (FOR 42F)HOLDER, CUP HOLDER, LEFT HAND, (S.GREEN) (FOR 42F)
-
13280C13280-0266-16L HOLDER, CUP HOLDER, RIGHT HAND, (D.R.RED) (FOR 16M)HOLDER, CUP HOLDER, RIGHT HAND, (D.R.RED) (FOR 16M)
-
13280E13280-0266-31R HOLDER, CUP HOLDER, RIGHT HAND, (S.GREEN) (FOR 42F)HOLDER, CUP HOLDER, RIGHT HAND, (S.GREEN) (FOR 42F)
-
1409114091-0818-16L COVER, FRONT GRILL, (D.R.RED) (FOR 16M)COVER, FRONT GRILL, (D.R.RED) (FOR 16M)
-
14091B14091-0818-31R COVER, FRONT GRILL, (S.GREEN) (FOR 42F)COVER, FRONT GRILL, (S.GREEN) (FOR 42F)
-
14091C14091-0829-16L COVER, FRONT FENDER, (D.R.RED) (FOR 16M)COVER, FRONT FENDER, (D.R.RED) (FOR 16M)
-
14091E14091-0829-31R COVER, FRONT FENDER, (S.GREEN) (FOR 42F)COVER, FRONT FENDER, (S.GREEN) (FOR 42F)
-
14091F14091-1715 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
1617116171-0013 LINKLINK
-
2108321083-0051 ARM, HOODARM, HOOD
-
2701227012-0119 HOOK, HOODHOOK, HOOD
-
3500435004-0096-16L FENDER-FRONT, CNT, (D.R.RED) (FOR 16M)FENDER-FRONT, CNT, (D.R.RED) (FOR 16M)
-
35004B35004-0096-31R FENDER-FRONT, CNT, (S.GREEN) (FOR 42F)FENDER-FRONT, CNT, (S.GREEN) (FOR 42F)
-
3914539145-0032 TRIM-SEAL, L=2350TRIM-SEAL, L=2350
-
4610246102-0103 RODROD
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-1346 WASHER, 6.5X20X1.6, (BLACK)WASHER, 6.5X20X1.6, (BLACK)
-
92022A92022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
92022B92022-1949 WASHER, 4.3X12.5X1WASHER, 4.3X12.5X1
-
9203992039-1150 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-1626 PIN, 6X9PIN, 6X9
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9214592145-0215 SPRINGSPRING
-
9216192161-0790 DAMPER, FRONT HOODDAMPER, FRONT HOOD
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
