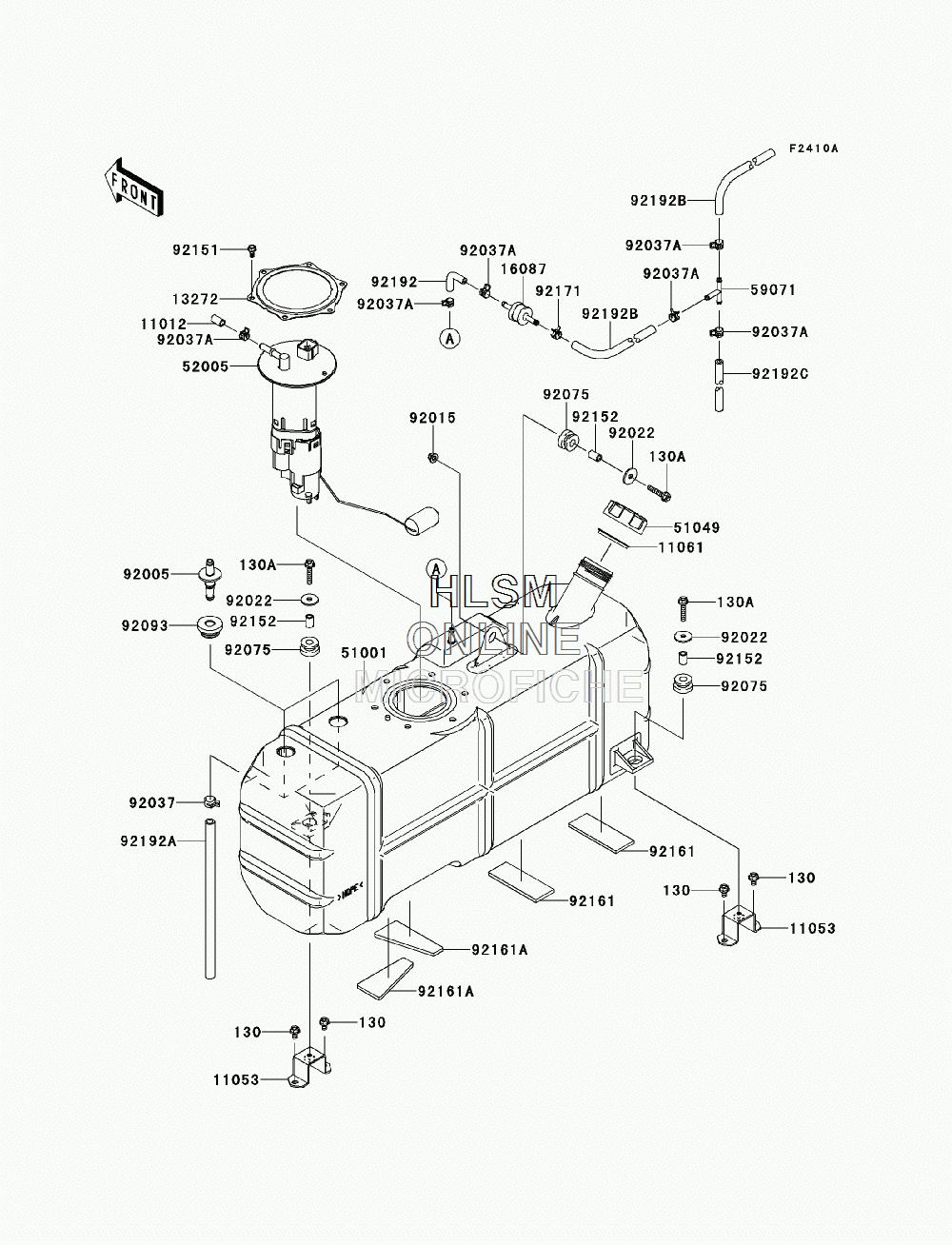

FUEL TANK для Kawasaki MULE 4010 TRANS4X4 DIESEL (KAF950GDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1101211012-1899 CAPCAP
-
1105311053-7512 BRACKETBRACKET
-
1106111061-7508 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
1327213272-1398 PLATEPLATE
-
1608716087-0703 VALVE-CHECKVALVE-CHECK
-
5100151001-0764 TANK-COMP-FUELTANK-COMP-FUEL
-
5104951049-7002 CAP-TANK, FUELCAP-TANK, FUEL
-
5200552005-0723 GAUGEGAUGE
-
5907159071-3705 JOINTJOINT
-
9200592005-7501 FITTINGFITTING
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
9203792037-1181 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
92037A92037-1461 CLAMP, TUBECLAMP, TUBE
-
9207592075-1787 DAMPERDAMPER
-
9209392093-7502 SEALSEAL
-
9215192151-1754 BOLT, FLANGED, 5X11.5BOLT, FLANGED, 5X11.5
-
9215292152-7511 COLLAR, 7.02X10.32X15.3COLLAR, 7.02X10.32X15.3
-
9216192161-0813 DAMPER, 92X35X4.76DAMPER, 92X35X4.76
-
92161A92161-0814 DAMPER, 92X19X4.76DAMPER, 92X19X4.76
-
9217192171-0515 CLAMPCLAMP
-
9219292192-0067 TUBE, FUEL TANK-CHECK VALVETUBE, FUEL TANK-CHECK VALVE
-
92192A92192-7503 TUBE, 8X13X260TUBE, 8X13X260
-
92192B92192-7512 TUBE, 7X11X370TUBE, 7X11X370
-
92192C92192-7513 TUBE, 7X11X225TUBE, 7X11X225
