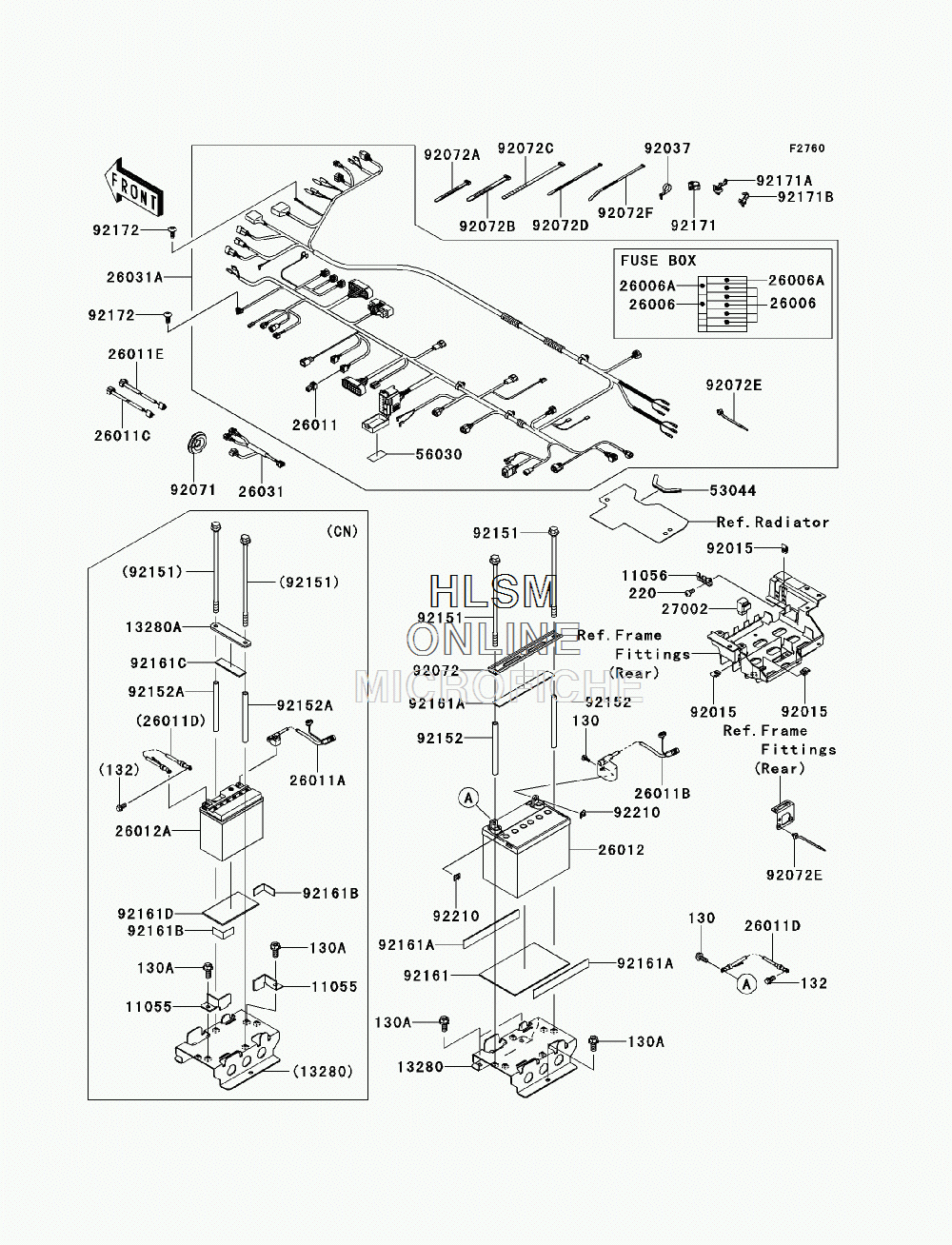

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX 750 FI 4X4 LE (KRF750PDF) - 2013 года выпуска
-
№АртикулНазвание
-
1105511055-0433 BRACKET (CANADA ONLY)BRACKET (CANADA ONLY)
-
1105611056-1518 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1328013280-0361 HOLDER, BATTERYHOLDER, BATTERY
-
13280A13280-7505 HOLDER, BATTERY (CANADA ONLY)HOLDER, BATTERY (CANADA ONLY)
-
2600626006-1078 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
26006A26006-1080 FUSE, MINI BLADE, 30A, (GREEN)FUSE, MINI BLADE, 30A, (GREEN)
-
2601126011-0037 WIRE-LEADWIRE-LEAD
-
26011A26011-0130 WIRE-LEAD, BATTERY(+) (CANADA ONLY)WIRE-LEAD, BATTERY(+) (CANADA ONLY)
-
26011B26011-0190 WIRE-LEAD, BATTERY(+) (USA ONLY)WIRE-LEAD, BATTERY(+) (USA ONLY)
-
26011C26011-0276 WIRE-LEAD, HEAD LAMP, LEFT HANDWIRE-LEAD, HEAD LAMP, LEFT HAND
-
26011D26011-0753 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011E26011-0759 WIRE-LEAD, HEAD LAMP, RIGHT HANDWIRE-LEAD, HEAD LAMP, RIGHT HAND
-
2601226012-0107 BATTERY, 12V 14AH (USA ONLY)BATTERY, 12V 14AH (USA ONLY)
-
26012A26012-1414 BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)
-
2603126031-0752 HARNESS, SUBHARNESS, SUB
-
26031A26031-1263 HARNESS, MAINHARNESS, MAIN
-
2700227002-1062 RELAY-ASSYRELAY-ASSY
-
5304453044-0564 TRIMTRIM
-
5603056030-0753 LABEL, FUSELABEL, FUSE
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207192071-0030 GROMMETGROMMET
-
9207292072-0128 BAND, BATTERY, UPP (USA ONLY)BAND, BATTERY, UPP (USA ONLY)
-
92072A92072-030 BAND, L=123BAND, L=123
-
92072B92072-031 BAND, L=149BAND, L=149
-
92072C92072-032 BAND, L=218BAND, L=218
-
92072D92072-056 BAND, L=186BAND, L=186
-
92072E92072-1414 BANDBAND
-
92072F92072-3509 BAND, L=292.1BAND, L=292.1
-
9215192151-1788 BOLT, 8X177BOLT, 8X177
-
9215292152-0794 COLLAR, 10.22X12.7X158.8 (USA ONLY)COLLAR, 10.22X12.7X158.8 (USA ONLY)
-
92152A92152-0841 COLLAR, 10.2X12.7X150.6 (CANADA ONLY)COLLAR, 10.2X12.7X150.6 (CANADA ONLY)
-
130130BA0616 BOLT-FLANGED, 6X16 (USA ONLY)BOLT-FLANGED, 6X16 (USA ONLY)
-
130A130BA0818 BOLT-FLANGED, 8X18 (USA ONLY)BOLT-FLANGED, 8X18 (USA ONLY)
-
130A130BA0818 BOLT-FLANGED, 8X18 (CANADA ONLY)BOLT-FLANGED, 8X18 (CANADA ONLY)
-
132132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
220220AA0612 SCREW-PAN-CROS, 6X12SCREW-PAN-CROS, 6X12
-
9216192161-0578 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161A92161-0579 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161B92161-0580 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
92161C92161-0844 DAMPER, 88X25X4 (CANADA ONLY)DAMPER, 88X25X4 (CANADA ONLY)
-
92161D92161-0846 DAMPER, 130X74X4 (CANADA ONLY)DAMPER, 130X74X4 (CANADA ONLY)
-
9217192171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0453 CLAMP (CANADA ONLY)CLAMP (CANADA ONLY)
-
92171A92171-0453 CLAMP (USA ONLY)CLAMP (USA ONLY)
-
92171B92171-1415 CLAMP, DIA=13CLAMP, DIA=13
-
9217292172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9221092210-1352 NUT, PLATE, 6MM (USA ONLY)NUT, PLATE, 6MM (USA ONLY)
