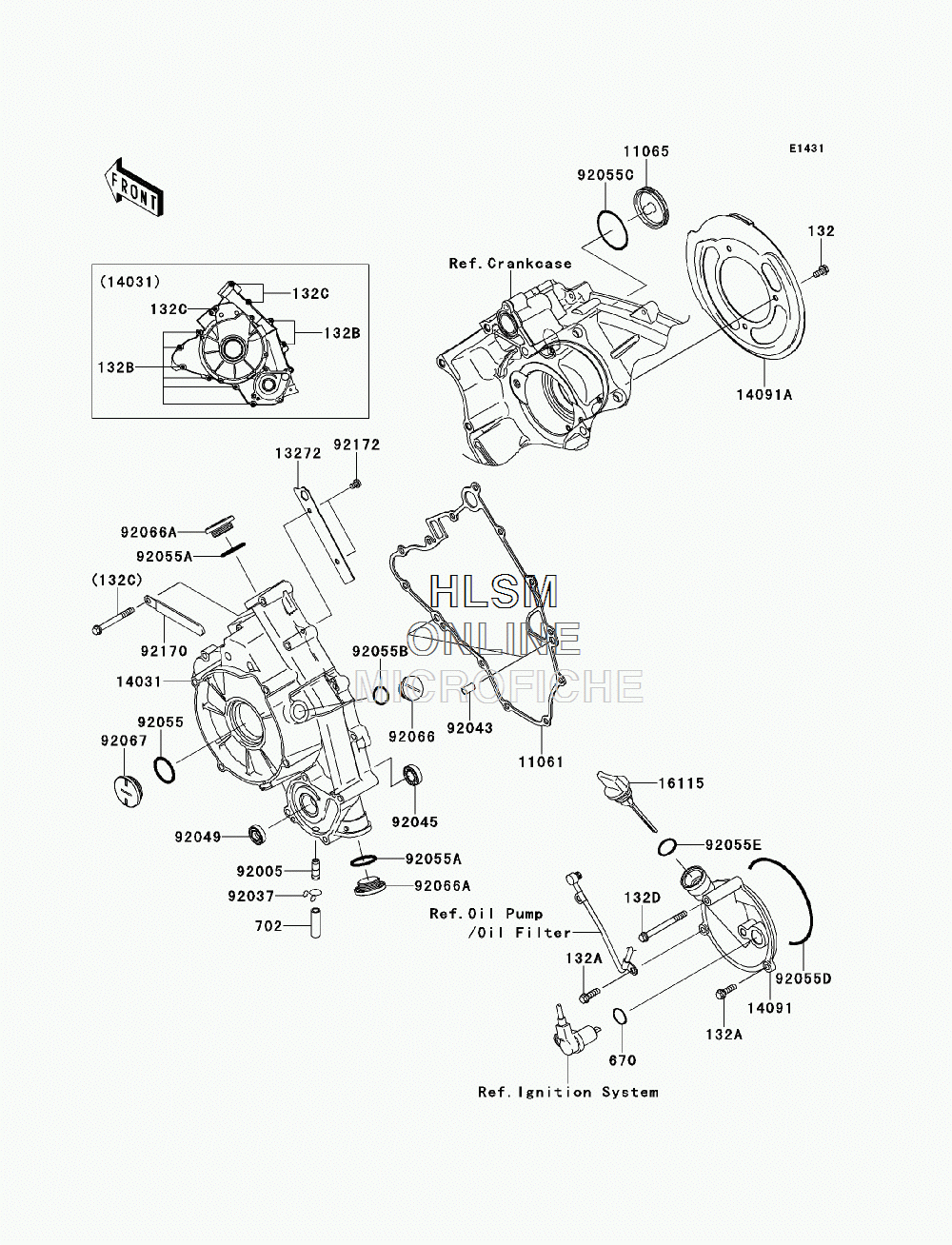

ENGINE COVER(S) для Kawasaki TERYX 750 FI 4X4 LE (KRF750PDF) - 2013 года выпуска
-
№АртикулНазвание
-
132132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132B132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132C132BD0655 BOLT-FLANGED-SMALL, 6X55BOLT-FLANGED-SMALL, 6X55
-
132D132BD0665 BOLT-FLANGED-SMALL, 6X65BOLT-FLANGED-SMALL, 6X65
-
670670D2018 O RINGO RING
-
702702A07035 TUBE-RUBBER, 7X10X35TUBE-RUBBER, 7X10X35
-
1106111061-1119 GASKETGASKET
-
1106511065-1151 CAPCAP
-
1327213272-1090 PLATEPLATE
-
1403114031-0565 COVER-GENERATORCOVER-GENERATOR
-
1409114091-1365 COVERCOVER
-
14091A14091-1571 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
1611516115-0023 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-1369 FITTINGFITTING
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-0084 BEARING-BALL, 6901BEARING-BALL, 6901
-
9204992049-1228 SEAL-OIL, SC 12X22X5SEAL-OIL, SC 12X22X5
-
9205592055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
92055A92055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92055B92055-1146 RING-O, 20X2RING-O, 20X2
-
92055C92055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
92055D92055-1632 RING-O, 99.5X2.0RING-O, 99.5X2.0
-
92055E92055-2185 RING-O, 20X3RING-O, 20X3
-
9206692066-0011 PLUG, COVERPLUG, COVER
-
92066A92066-0012 PLUG, 25X8PLUG, 25X8
-
9206792067-024 PLUG, 30X8PLUG, 30X8
-
9217092170-1925 CLAMPCLAMP
-
9217292172-0119 SCREW, 5X8SCREW, 5X8
