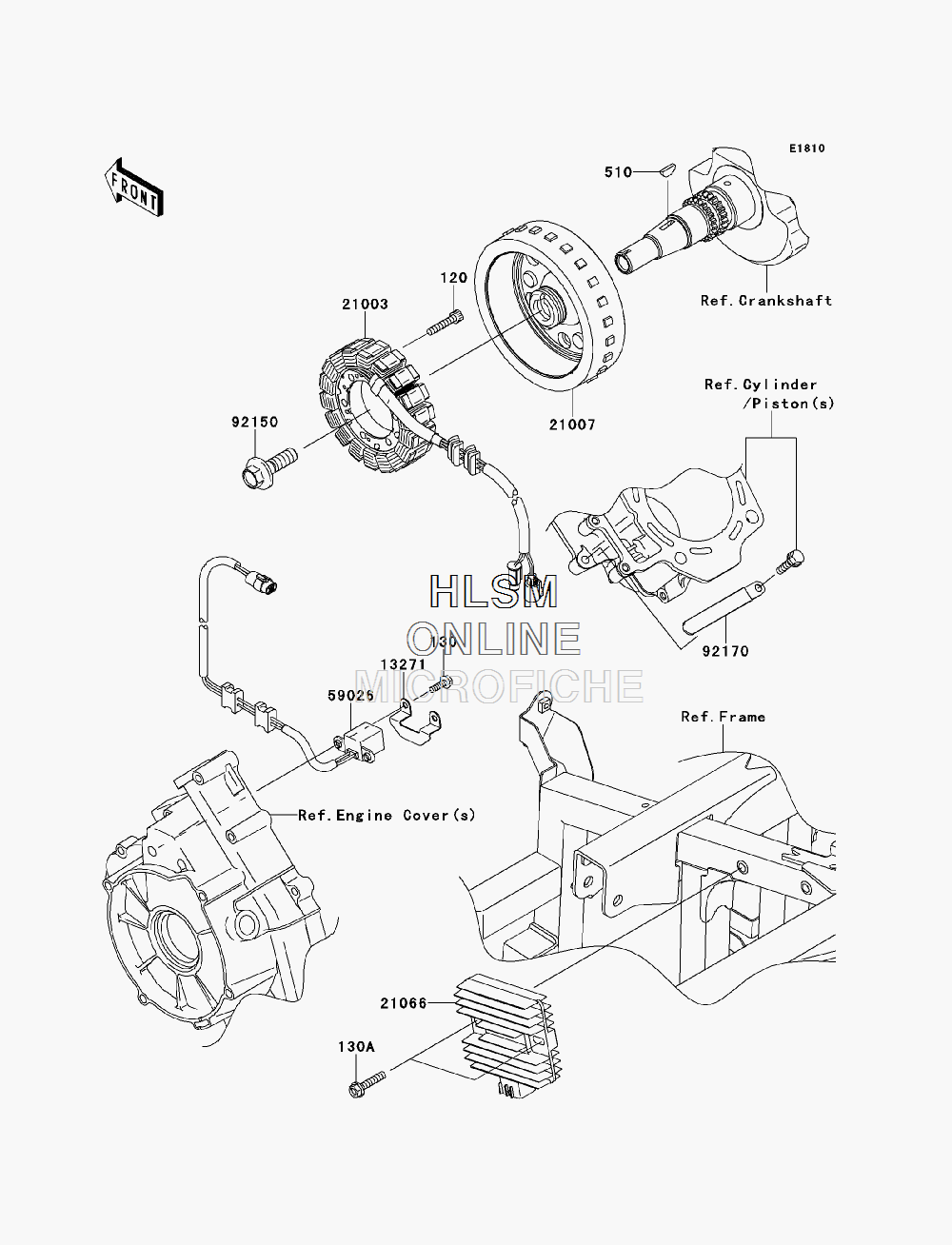

GENERATOR для Kawasaki TERYX 750 FI 4X4 LE (KRF750RDF) - 2013 года выпуска
-
№АртикулНазвание
-
120120CB0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
130130BA0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
130A130BB0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-1369 PLATEPLATE
-
2100321003-0125 STATORSTATOR
-
2100721007-0561 ROTORROTOR
-
2106621066-0030 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
5902659026-1159 COIL-PULSINGCOIL-PULSING
-
9215092150-1717 BOLT, 12X40BOLT, 12X40
-
9217092170-1925 CLAMPCLAMP
