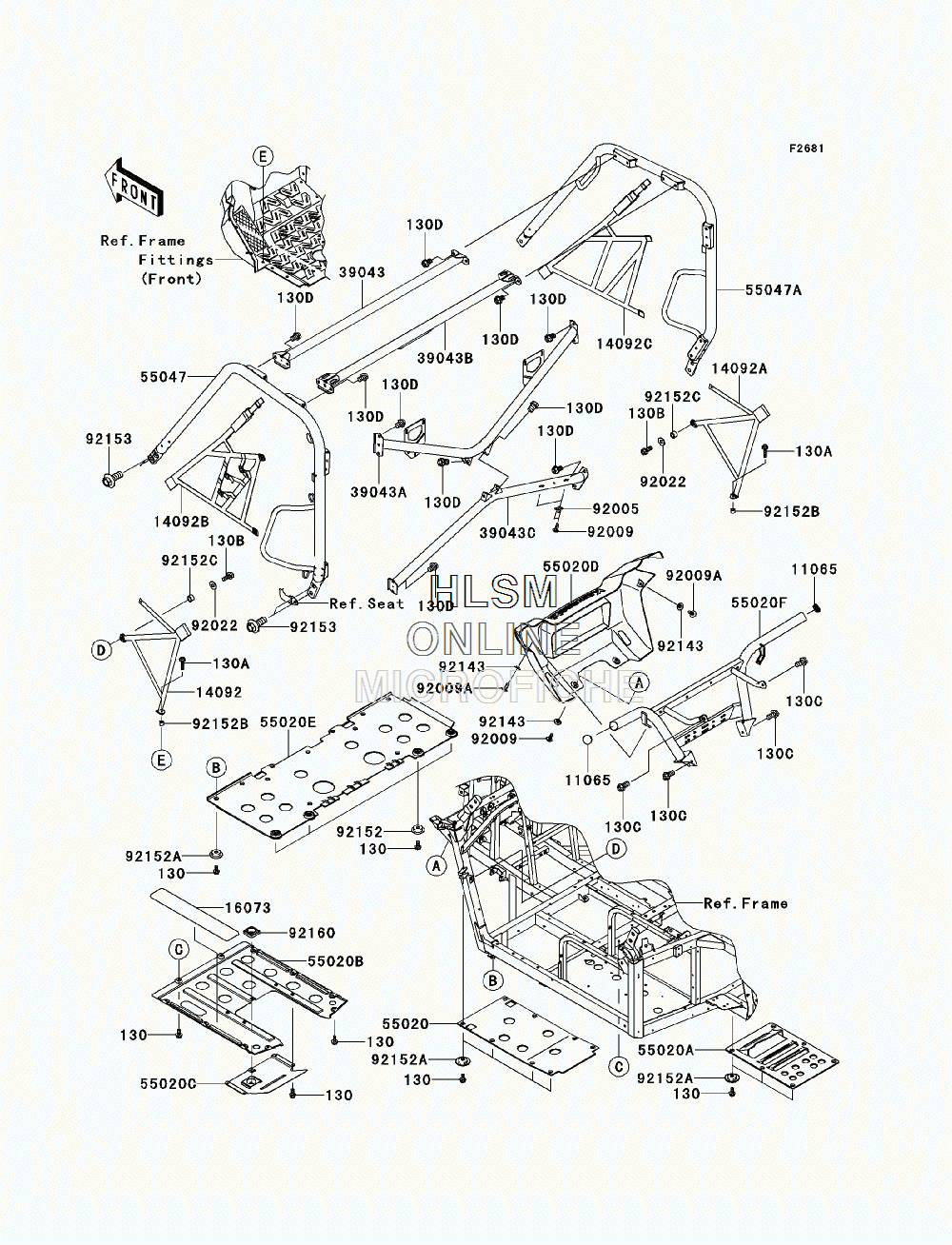

GUARD(S) / CAB FRAME для Kawasaki TERYX 750 FI 4X4 LE (KRF750RDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
130B130BB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130C130CA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130D130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
1106511065-0214 CAPCAP
-
1409214092-0942 COVER, LEFT HAND, LWRCOVER, LEFT HAND, LWR
-
14092A14092-0944 COVER, RIGHT HAND, LWRCOVER, RIGHT HAND, LWR
-
14092B14092-0955 COVER, LEFT HAND, UPPCOVER, LEFT HAND, UPP
-
14092C14092-0956 COVER, RIGHT HAND, UPPCOVER, RIGHT HAND, UPP
-
1607316073-0045 INSULATOR, ENGINE GUARDINSULATOR, ENGINE GUARD
-
3904339043-0001-388 CROSSMEMBER-COMP, UPP, FRONT, (BLACK) (FOR 16P)CROSSMEMBER-COMP, UPP, FRONT, (BLACK) (FOR 16P)
-
39043A39043-0005-388 CROSSMEMBER-COMP, REAR, UPP, (BLACK) (FOR 16P)CROSSMEMBER-COMP, REAR, UPP, (BLACK) (FOR 16P)
-
39043B39043-0007-388 CROSSMEMBER-COMP, UPP, REAR, (BLACK) (FOR 16P)CROSSMEMBER-COMP, UPP, REAR, (BLACK) (FOR 16P)
-
39043C39043-0008-388 CROSSMEMBER-COMP, REAR, LWR, (BLACK) (FOR 16P)CROSSMEMBER-COMP, REAR, LWR, (BLACK) (FOR 16P)
-
5502055020-0301 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0402 GUARD, SKID, REARGUARD, SKID, REAR
-
55020B55020-0437 GUARD, SKID, MIDDLEGUARD, SKID, MIDDLE
-
55020C55020-0438 GUARD, ENGINE, SUBGUARD, ENGINE, SUB
-
55020D55020-0520 GUARD, FRONT COVERGUARD, FRONT COVER
-
55020E55020-0522 GUARD, SKID, MIDDLEGUARD, SKID, MIDDLE
-
55020F55020-0810-388 GUARD, FRONT PIPE, (T.BLACK) (FOR 16P)GUARD, FRONT PIPE, (T.BLACK) (FOR 16P)
-
5504755047-0332-388 BAR-COMP, LEFT HAND, (T.BLACK) (FOR 16P)BAR-COMP, LEFT HAND, (T.BLACK) (FOR 16P)
-
55047A55047-0333-388 BAR-COMP, RIGHT HAND, (T.BLACK) (FOR 16P)BAR-COMP, RIGHT HAND, (T.BLACK) (FOR 16P)
-
9200592005-0077 FITTINGFITTING
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-1317 WASHER, 8.5X20X1.6, (BLACK)WASHER, 8.5X20X1.6, (BLACK)
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0512 COLLARCOLLAR
-
92152A92152-0784 COLLARCOLLAR
-
92152B92152-1576 COLLAR, 6.2X9.5X7.5COLLAR, 6.2X9.5X7.5
-
92152C92152-1608 COLLAR, 9.3X13.5X8.6COLLAR, 9.3X13.5X8.6
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216092160-1772 DAMPERDAMPER
