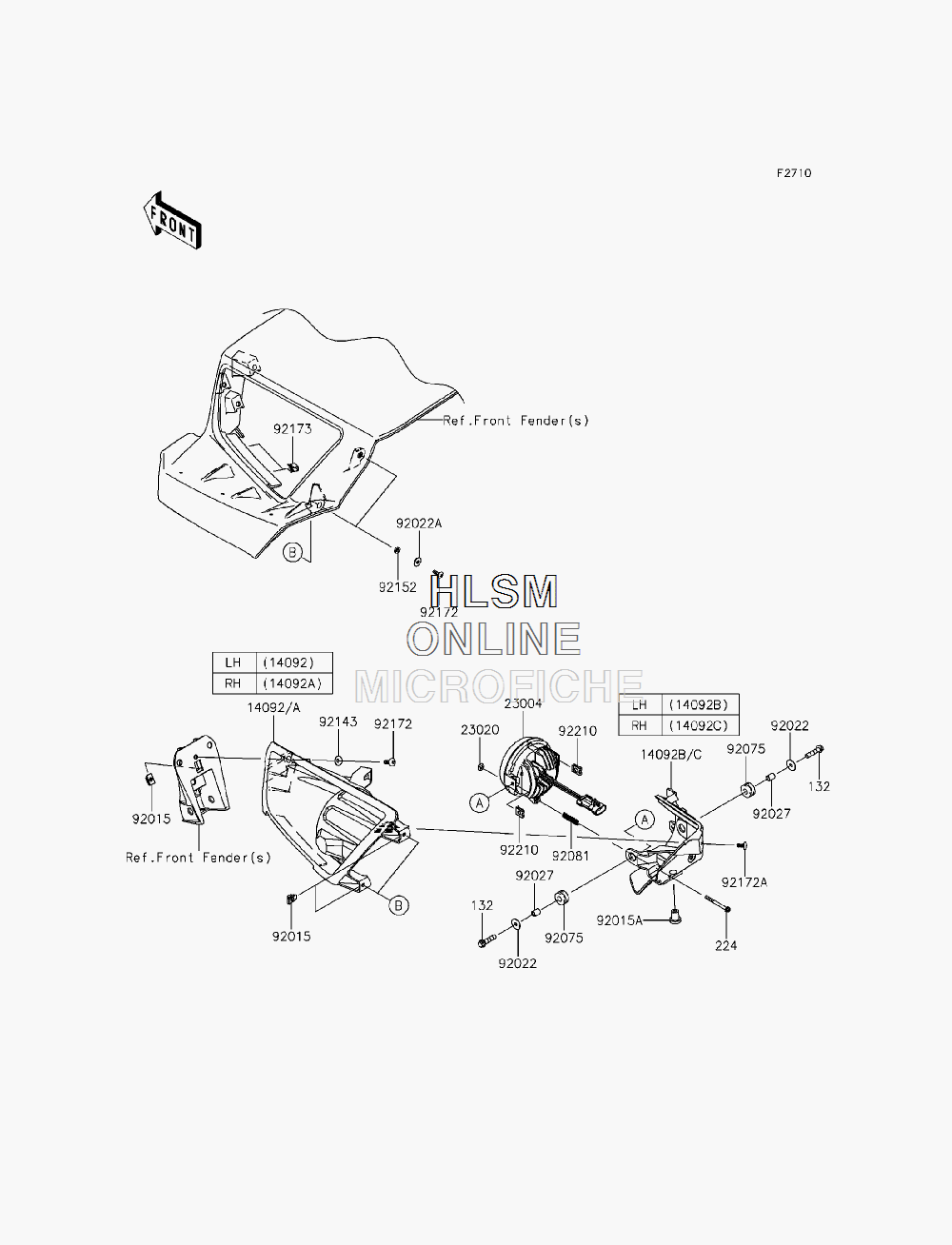

HEADLIGHT(S) для Kawasaki TERYX CAMO (KRF800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
224224AA0445 SCREW-PAN-WP-CROS, 4X45SCREW-PAN-WP-CROS, 4X45
-
1409214092-0054 COVER, HEAD LAMP, FRONT, LEFT HANDCOVER, HEAD LAMP, FRONT, LEFT HAND
-
14092A14092-0055 COVER, HEAD LAMP, FRONT, RIGHT HANDCOVER, HEAD LAMP, FRONT, RIGHT HAND
-
14092B14092-0056 COVER, HEAD LAMP, REAR, LEFT HANDCOVER, HEAD LAMP, REAR, LEFT HAND
-
14092C14092-0057 COVER, HEAD LAMP, REAR, RIGHT HANDCOVER, HEAD LAMP, REAR, RIGHT HAND
-
2300423004-0341 LAMP-HEAD, LEDLAMP-HEAD, LED
-
2302023020-018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
9201592015-1627 NUT, 5MMNUT, 5MM
-
92015A92015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92022A92022-263 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
9202792027-162 COLLAR, 6.8X10X12COLLAR, 6.8X10X12
-
9207592075-1690 DAMPERDAMPER
-
9208192081-1896 SPRING, FOCUS ADJUSTSPRING, FOCUS ADJUST
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1703 COLLAR, 5.3X10.7X3COLLAR, 5.3X10.7X3
-
9217292172-0322 SCREW, 5X16SCREW, 5X16
-
92172A92172-3714 SCREW, 5X12SCREW, 5X12
-
9217392173-0104 CLAMPCLAMP
-
9221092210-1125 NUTNUT
