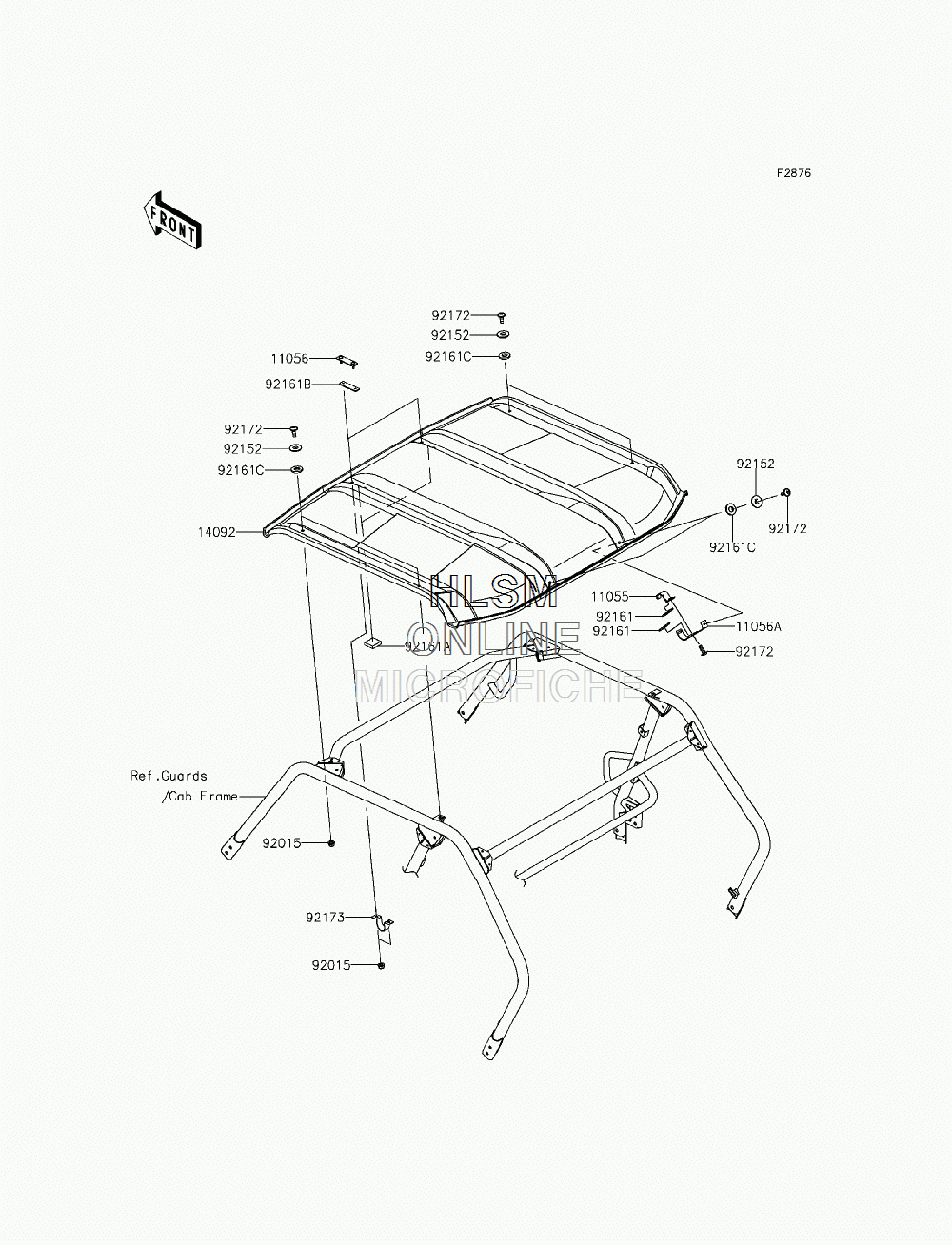

SUN TOP для Kawasaki TERYX CAMO (KRF800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105511055-0914 BRACKET, SUN TOP COVERBRACKET, SUN TOP COVER
-
1105611056-1523 BRACKETBRACKET
-
11056A11056-2508 BRACKETBRACKET
-
1409214092-1073 COVER, SUN TOPCOVER, SUN TOP
-
9201592015-1339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9215292152-1569 COLLAR, 6.3X26X5.1COLLAR, 6.3X26X5.1
-
9216192161-0978 DAMPER, 25X65X4.7DAMPER, 25X65X4.7
-
92161A92161-1405 DAMPER, 25.4X25.4X6.3DAMPER, 25.4X25.4X6.3
-
92161B92161-1476 DAMPERDAMPER
-
92161C92161-1477 DAMPERDAMPER
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
9217392173-0884 CLAMPCLAMP
