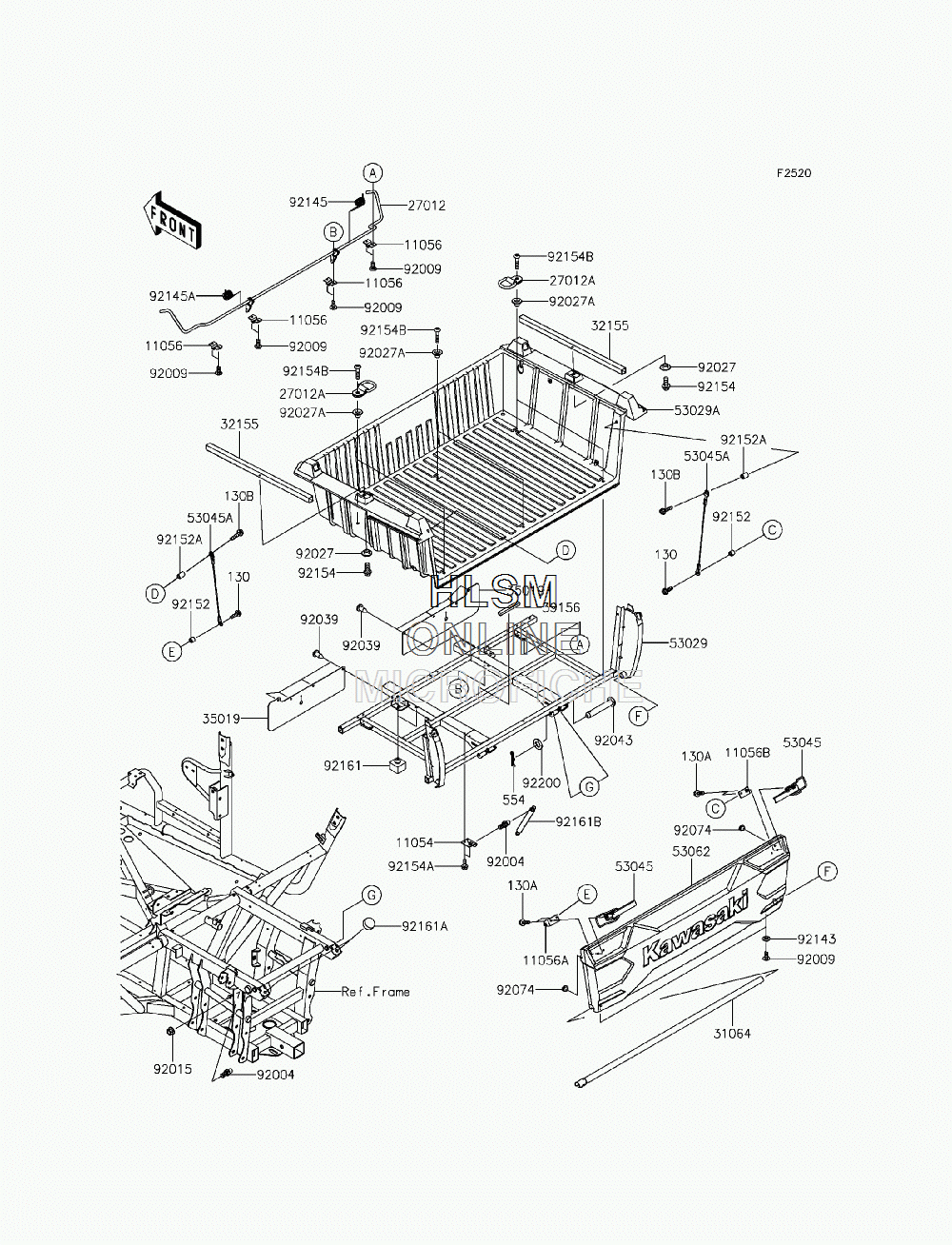

CARRIER(S) для Kawasaki TERYX (KRF800BEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BB0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130BB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130B130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
1105411054-1159 BRACKETBRACKET
-
1105611056-2422 BRACKET, RODBRACKET, ROD
-
11056A11056-2437 BRACKETBRACKET
-
11056B11056-2447 BRACKETBRACKET
-
2701227012-0744 HOOK, RODHOOK, ROD
-
27012A27012-0766 HOOKHOOK
-
3106431064-0647 PIPE-COMP, PIVOTPIPE-COMP, PIVOT
-
3215532155-1360 PIPE, ACCESSORY RAILPIPE, ACCESSORY RAIL
-
3501935019-0583 FLAP, MUDFLAP, MUD
-
3915639156-0068 PADPAD
-
5302953029-0331 CAREARIER, FRAMECAREARIER, FRAME
-
53029A53029-0332 CAREARIERCAREARIER
-
5304553045-0020 HOOK-ASSY, LATCHHOOK-ASSY, LATCH
-
53045A53045-0021 HOOK-ASSY, CABLEHOOK-ASSY, CABLE
-
5306253062-0019 GATE-TAILGATE-TAIL
-
9200492004-0034 STUD, 8X13.5STUD, 8X13.5
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202792027-1745 COLLARCOLLAR
-
92027A92027-1767 COLLARCOLLAR
-
9203992039-1229 RIVETRIVET
-
9204392043-0716 PIN, 12.4X72.4PIN, 12.4X72.4
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9214392143-1087 COLLARCOLLAR
-
9214592145-1609 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
92145A92145-1610 SPRING, LEFT HANDSPRING, LEFT HAND
-
9215292152-0621 COLLAR, 6.3X9.5X8COLLAR, 6.3X9.5X8
-
92152A92152-1750 COLLAR, 6.2X9.5X14.0COLLAR, 6.2X9.5X14.0
-
9215492154-1226 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92154A92154-1250 BOLT, 6X15.6BOLT, 6X15.6
-
92154B92154-1316 BOLT, TORX, 6X30BOLT, TORX, 6X30
-
9216192161-0421 DAMPERDAMPER
-
92161A92161-1065 DAMPER, SEATDAMPER, SEAT
-
92161B92161-1607 DAMPER, GASDAMPER, GAS
-
9220092200-0451 WASHER, 13X24X2WASHER, 13X24X2
