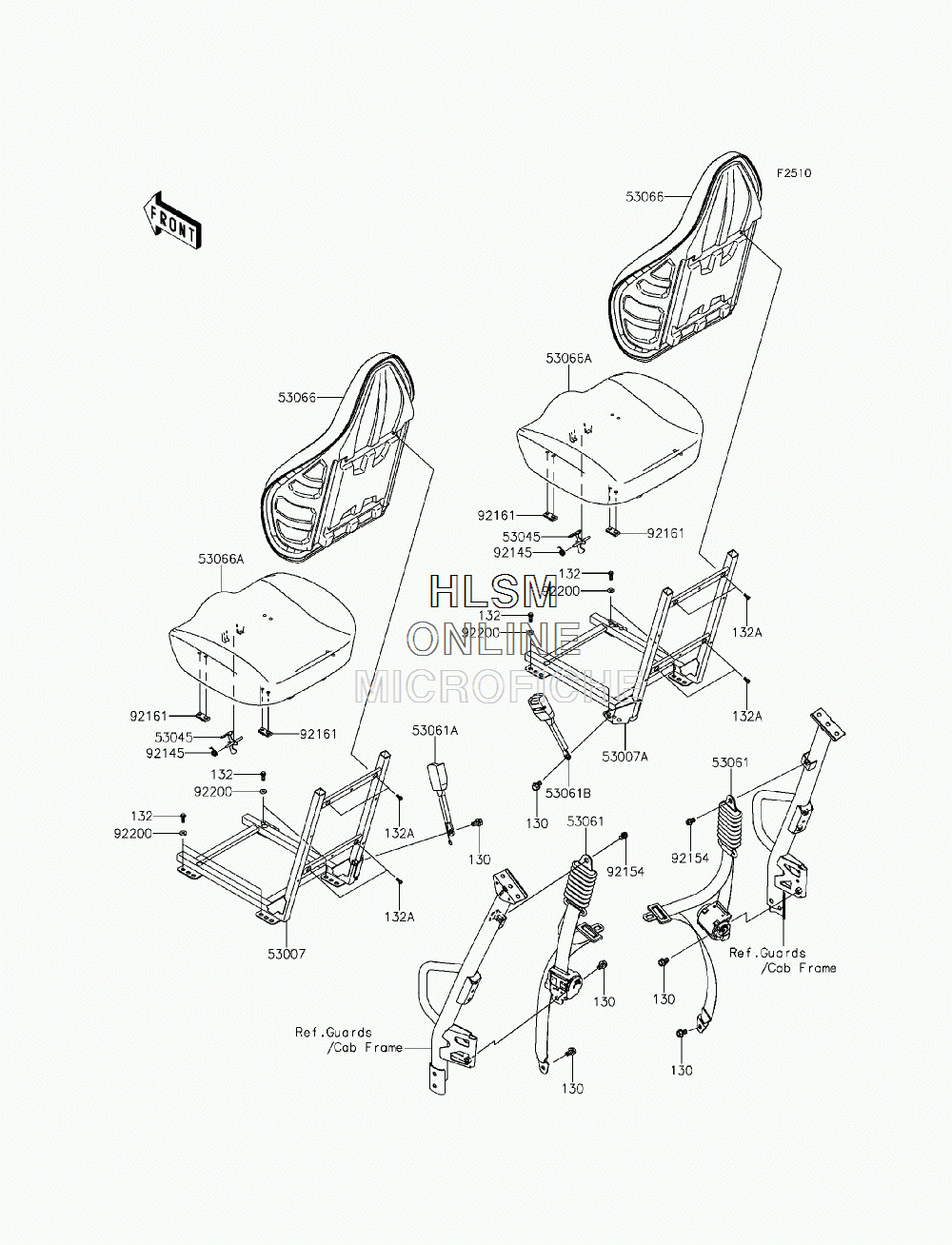

SEAT для Kawasaki TERYX (KRF800BEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED, 12X20BOLT-FLANGED, 12X20
-
132132BA0822 BOLT-FLANGED-SMALL, 8X22BOLT-FLANGED-SMALL, 8X22
-
132A132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
5300753007-0347 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0348 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0016 BELT-SEAT, RETRACTOR, L=2950BELT-SEAT, RETRACTOR, L=2950
-
53061A53061-0018 BELT-SEAT, BUCKLE, SW.BELT-SEAT, BUCKLE, SW.
-
53061B53061-0019 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
5306653066-0394-41H SEAT-ASSY, BACK, (BLACK/SILVER) (FOR 40D)SEAT-ASSY, BACK, (BLACK/SILVER) (FOR 40D)
-
53066A53066-0420-13Z SEAT-ASSY, BOTTOM, (SILVER/BLACK) (FOR 40D)SEAT-ASSY, BOTTOM, (SILVER/BLACK) (FOR 40D)
-
9214592145-0022 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
9215492154-1136 BOLT, 10X16BOLT, 10X16
-
9216192161-1489 DAMPER, SEATDAMPER, SEAT
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
