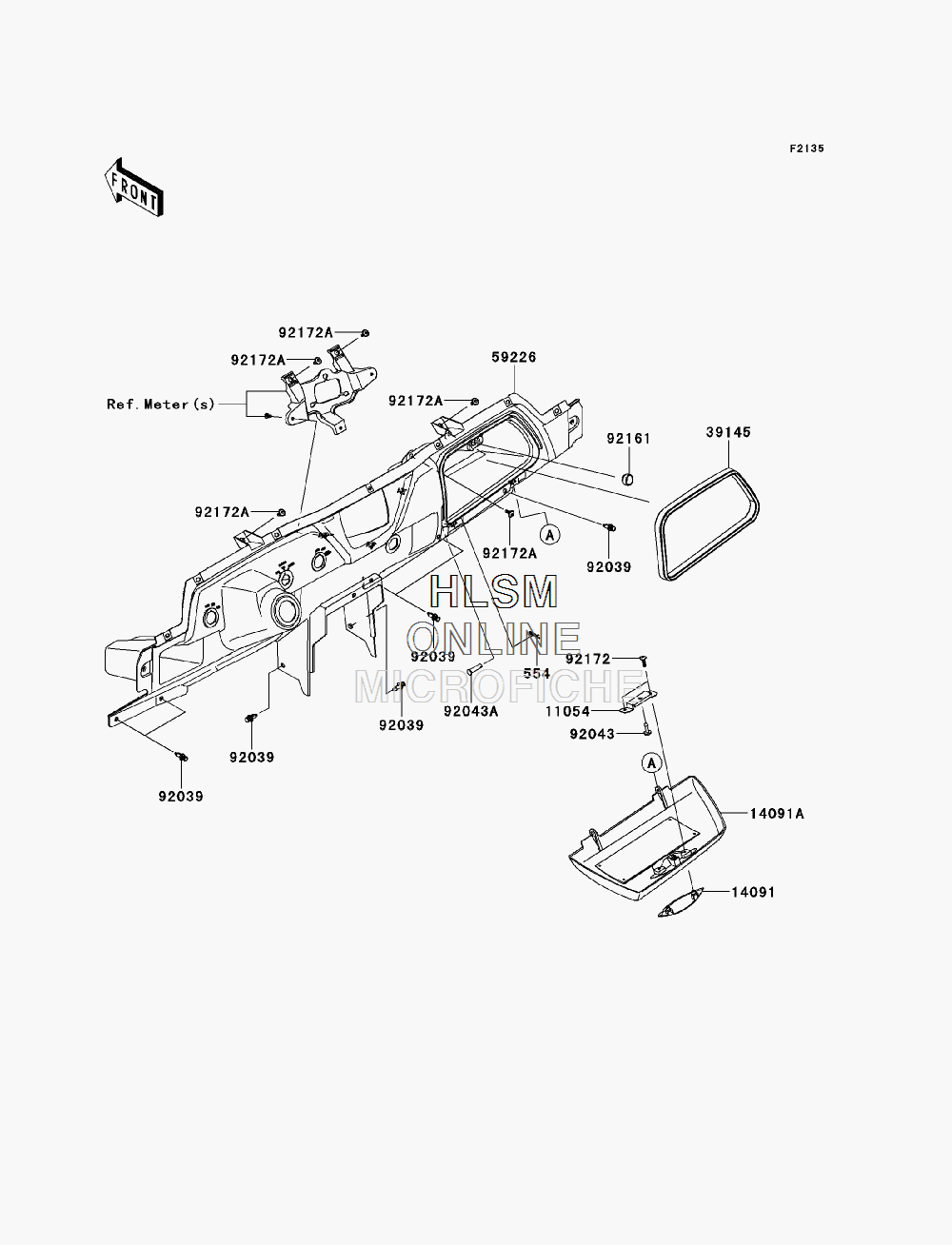

FRONT BOX для Kawasaki TERYX4 (KRT800BEF) - 2014 года выпуска
-
№АртикулНазвание
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105411054-1789 BRACKETBRACKET
-
1409114091-0700-6Z COVER, STORAGE CAP, (F.BLACK) (FOR 40E)COVER, STORAGE CAP, (F.BLACK) (FOR 40E)
-
14091A14091-0985-6Z COVER, STORAGE, (F.BLACK) (FOR 40E)COVER, STORAGE, (F.BLACK) (FOR 40E)
-
3914539145-0029 TRIM-SEAL, L=940TRIM-SEAL, L=940
-
5922659226-0033 PANEL-CONTROLPANEL-CONTROL
-
9203992039-1229 RIVETRIVET
-
9204392043-0138 PINPIN
-
92043A92043-0164 PIN, 6X23PIN, 6X23
-
9216192161-0568 DAMPERDAMPER
-
9217292172-0347 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92172A92172-0826 SCREW, 6X16SCREW, 6X16
