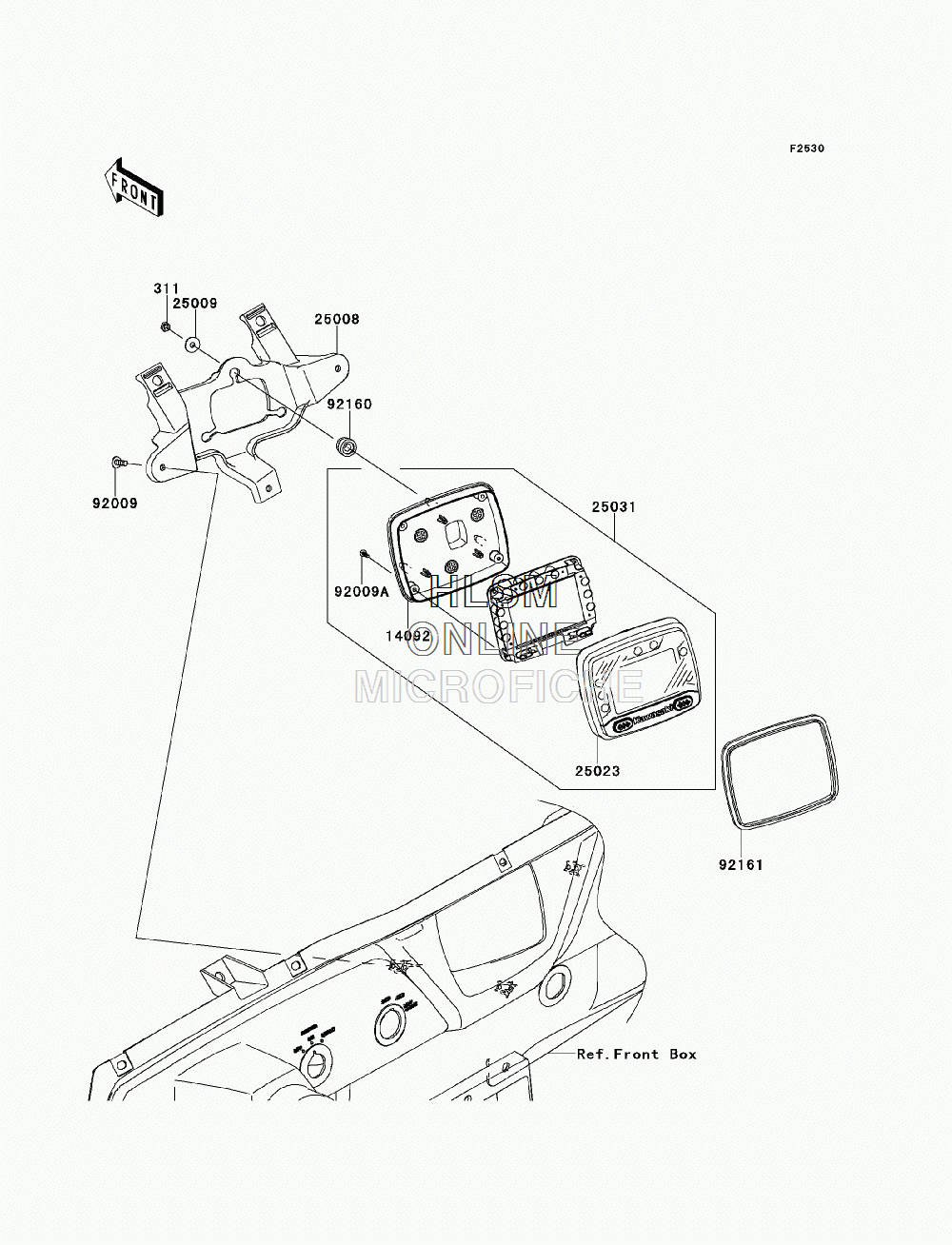

METER(S) для Kawasaki TERYX4 (KRT800BEF) - 2014 года выпуска
-
№АртикулНазвание
-
311311AB0500 NUT-HEXNUT-HEX
-
1409214092-0834 COVER, METER, LOWERCOVER, METER, LOWER
-
2500825008-0305 BRACKET-METERBRACKET-METER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2502325023-0075 COVER-METER CASE, UPPERCOVER-METER CASE, UPPER
-
2503125031-0471 METER-ASSY, LCDMETER-ASSY, LCD
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009A92009-1255 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
9216092160-1460 DAMPERDAMPER
-
9216192161-0906 DAMPER, METERDAMPER, METER
