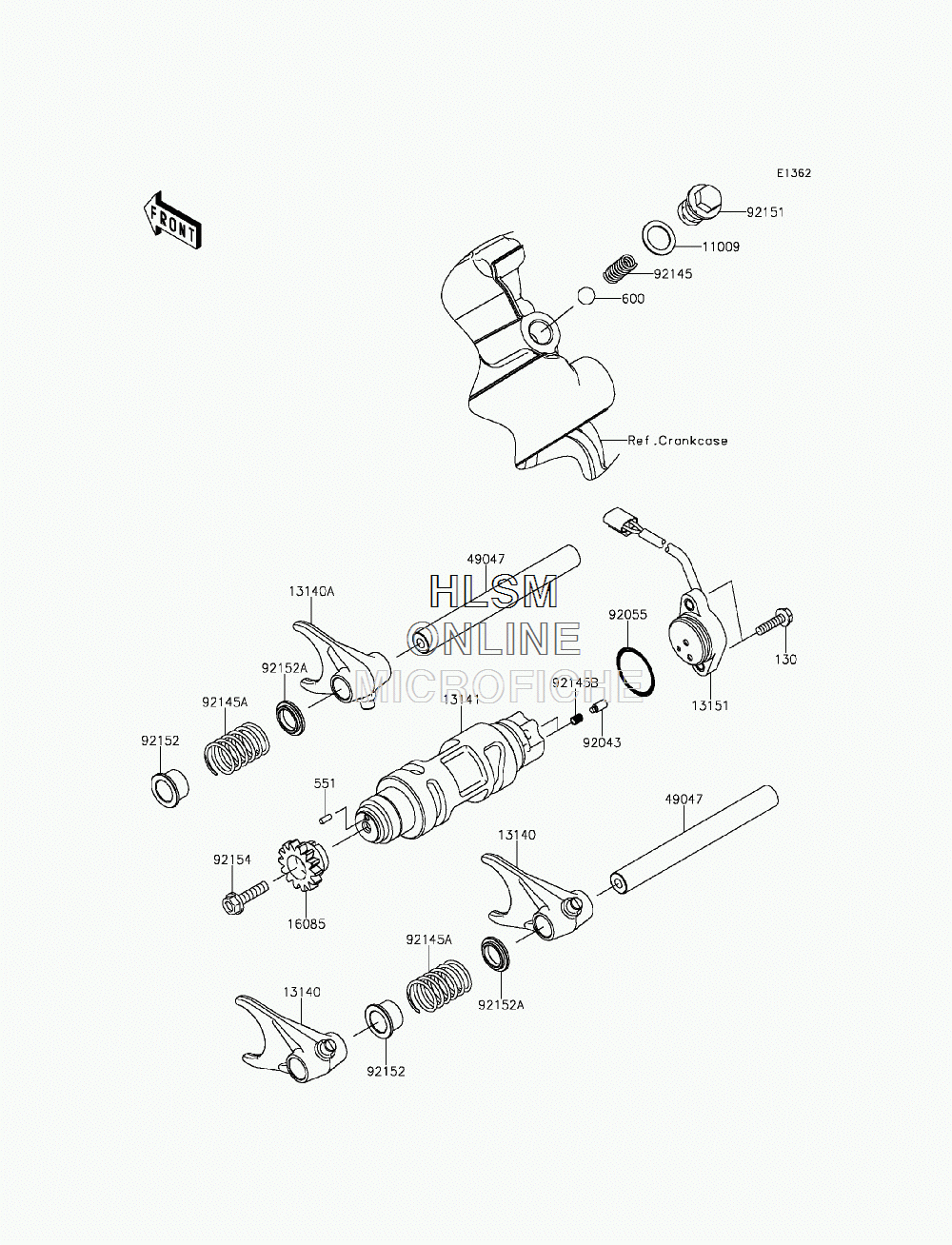

GEAR CHANGE DRUM/SHIFT FORK(S) для Kawasaki TERYX (KRF800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130BA0520 BOLT-FLANGED,5X20BOLT-FLANGED,5X20
-
551551A0308 PIN-DOWEL,3X8PIN-DOWEL,3X8
-
600600A1300 BALL-STEEL,13/32BALL-STEEL,13/32
-
1100911009-1008 GASKET,15.5X22X1GASKET,15.5X22X1
-
1314013140-0622 FORK-SHIFT,COUNTERFORK-SHIFT,COUNTER
-
13140A13140-0623 FORK-SHIFT,INPUTFORK-SHIFT,INPUT
-
1314113141-0576 DRUM-CHANGEDRUM-CHANGE
-
1315113151-0561 SWITCH-COMP,GEAR POSITIONSWITCH-COMP,GEAR POSITION
-
1608516085-0589 GEAR,14TGEAR,14T
-
4904749047-0619 ROD-SHIFTROD-SHIFT
-
9204392043-1654 PINPIN
-
9205592055-091 RING-O,27.7X2.4RING-O,27.7X2.4
-
9214592145-0828 SPRINGSPRING
-
92145A92145-0898 SPRINGSPRING
-
92145B92145-1414 SPRINGSPRING
-
9215192151-1451 BOLTBOLT
-
9215292152-1595 COLLAR,14X18X12.5COLLAR,14X18X12.5
-
92152A92152-1596 COLLAR,14X18X4COLLAR,14X18X4
-
9215492154-0707 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
