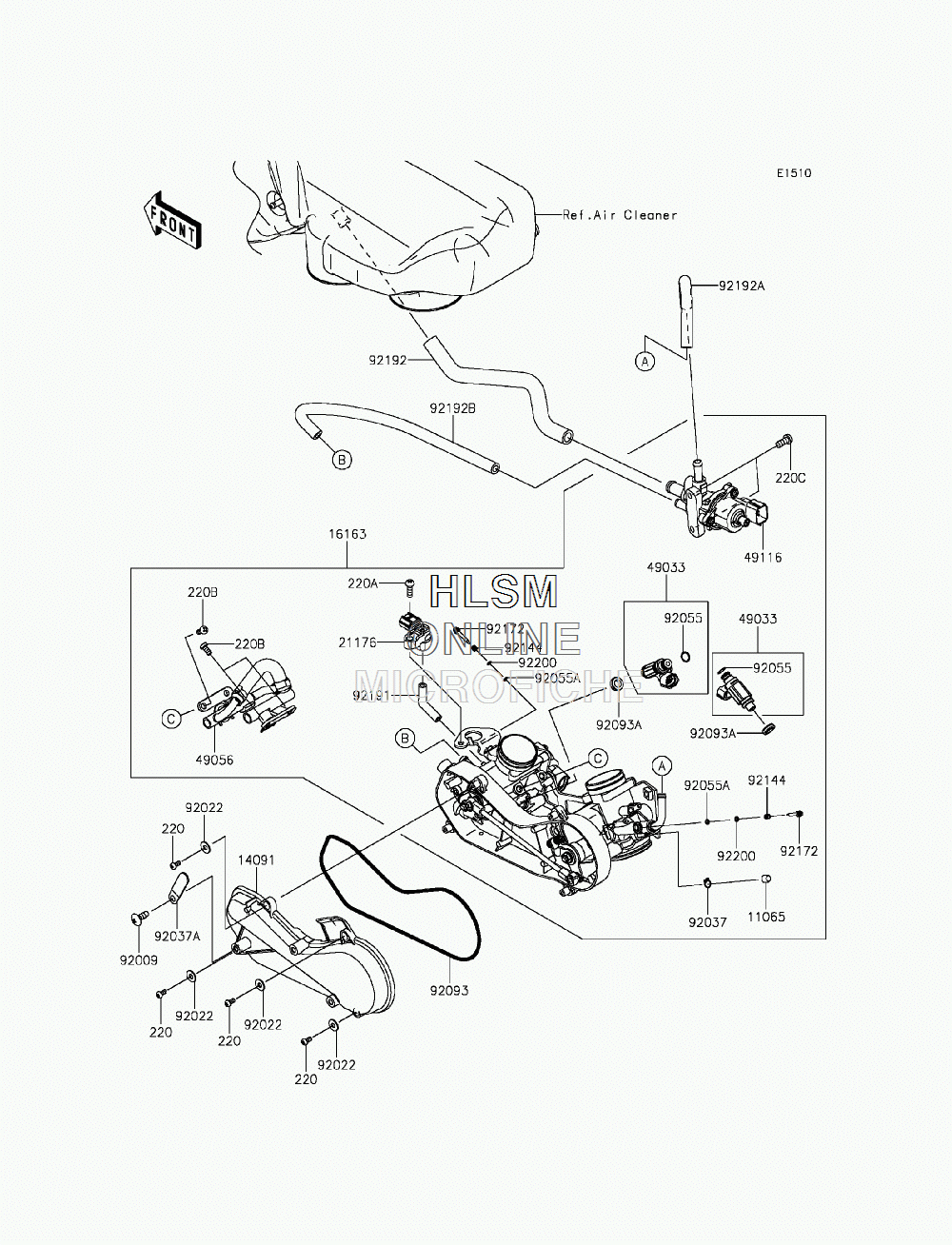

THROTTLE BODY для Kawasaki TERYX (KRF800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
220220AA0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220AA0516 SCREW-PAN-CROS,5X16SCREW-PAN-CROS,5X16
-
220B220AA0612 SCREW-PAN-CROS,6X12SCREW-PAN-CROS,6X12
-
220C220AA0614 SCREW-PAN-CROS,6X14SCREW-PAN-CROS,6X14
-
1106511065-0072 CAPCAP
-
1409114091-1731 COVER,THROTTLE LINKCOVER,THROTTLE LINK
-
1616316163-0790 THROTTLE-ASSY,36EISTHROTTLE-ASSY,36EIS
-
2117621176-0111 SENSOR,PRESSURESENSOR,PRESSURE
-
4903349033-0011 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0033 PIPE-INJECTIONPIPE-INJECTION
-
4911649116-0021 VALVE-ASSY,ISCVALVE-ASSY,ISC
-
9200992009-1480 SCREW,6X12SCREW,6X12
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203792037-1124 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1539 CLAMP,L=45CLAMP,L=45
-
9205592055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
92055A92055-1658 RING-O,AIR SCREWRING-O,AIR SCREW
-
9209392093-0082 SEALSEAL
-
92093A92093-0127 SEALSEAL
-
9214492144-1674 SPRING,THROTTLE STOP SCREWSPRING,THROTTLE STOP SCREW
-
9217292172-0156 SCREWSCREW
-
9219192191-1552 TUBE,3.2X7.4X70TUBE,3.2X7.4X70
-
9219292192-0948 TUBE,ISC-CHAMBERTUBE,ISC-CHAMBER
-
92192A92192-1211 TUBE,ISC-THROTTLE REARTUBE,ISC-THROTTLE REAR
-
92192B92192-1212 TUBE,ISC-THROTTLE FRTUBE,ISC-THROTTLE FR
-
9220092200-1564 WASHER,PILOT AIR SCREWWASHER,PILOT AIR SCREW
