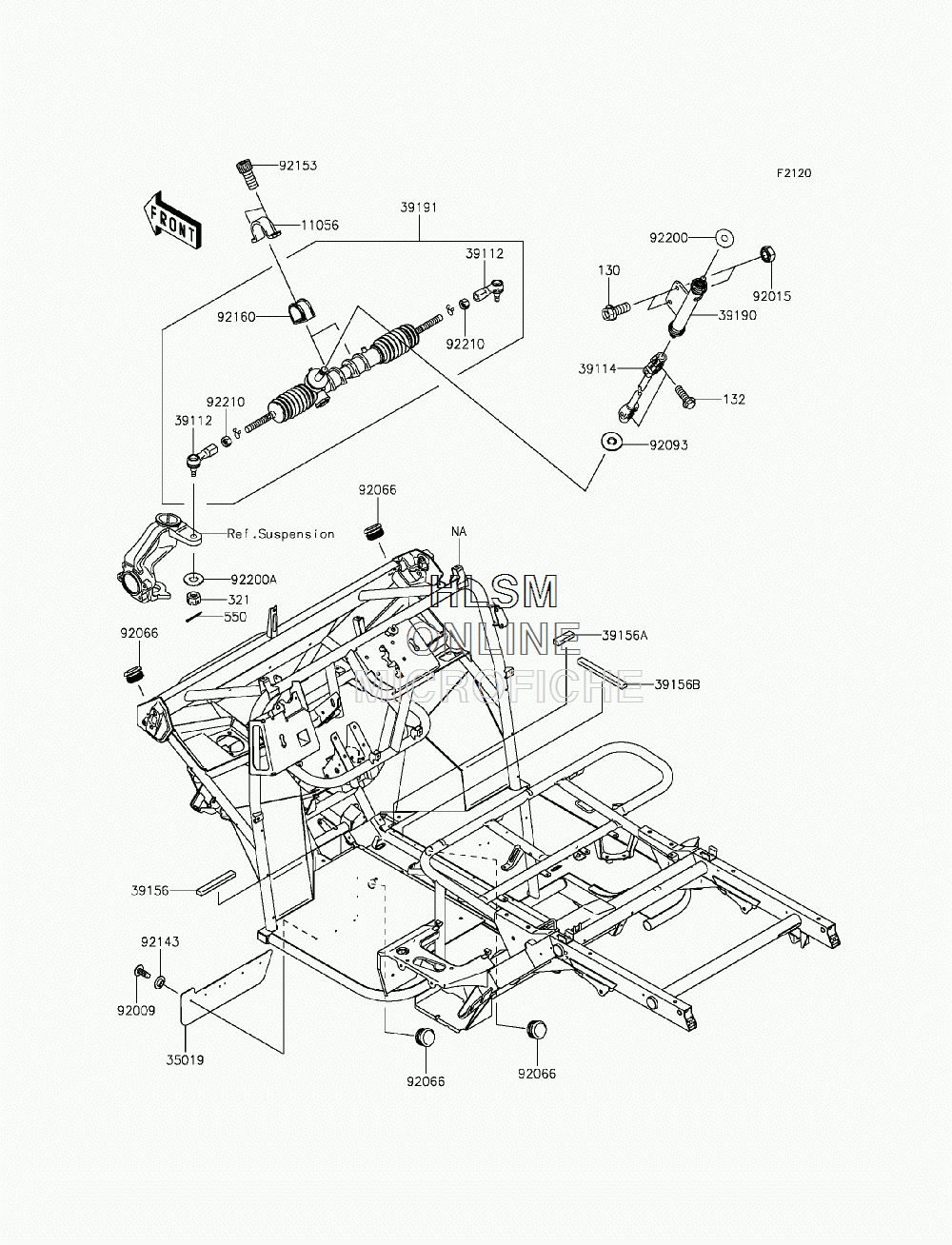

FRAME для Kawasaki MULE 610 4X4 (KAF400AGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BB1025 BOLT-FLANGED,10X25BOLT-FLANGED,10X25
-
132132BB0825 BOLT-FLANGED-SMALL,8X25BOLT-FLANGED-SMALL,8X25
-
321321BA1000 NUT-CASTLENUT-CASTLE
-
550550AA2022 PIN-COTTER,2.0X22PIN-COTTER,2.0X22
-
1105611056-2238 BRACKET,STEERING GEARBRACKET,STEERING GEAR
-
3501935019-0589 FLAPFLAP
-
3911239112-0008 RODEND-TIE,STEERING GEARRODEND-TIE,STEERING GEAR
-
3911439114-0003 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3915639156-0068 PADPAD
-
39156A39156-0069 PADPAD
-
39156B39156-0070 PADPAD
-
3919039190-0004 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0022 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9201592015-1189 NUT,LOCK,10MM,(BLACK)NUT,LOCK,10MM,(BLACK)
-
9206692066-0036 PLUGPLUG
-
9209392093-1313 SEALSEAL
-
9214392143-1087 COLLARCOLLAR
-
9215392153-1269 BOLT,SOCKET,10X23BOLT,SOCKET,10X23
-
9216092160-1084 DAMPER,STEERING GEARDAMPER,STEERING GEAR
-
9220092200-1130 WASHER,15X45X0.6WASHER,15X45X0.6
-
92200A92200-2009 WASHER,10.3X23X1.6WASHER,10.3X23X1.6
-
9221092210-0217 NUT,14MMNUT,14MM
