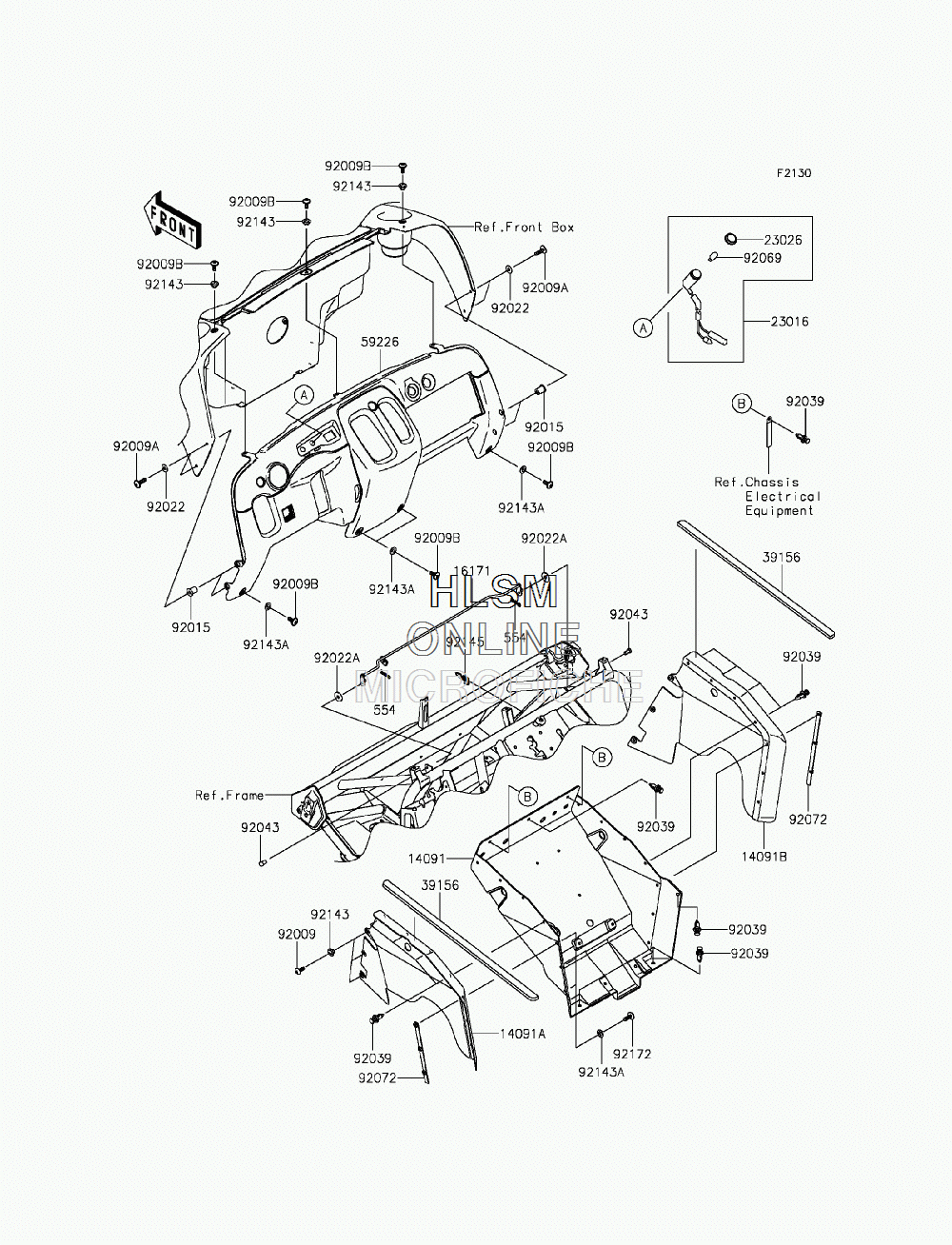

FRAME FITTINGS (FRONT) для Kawasaki MULE 610 4X4 (KAF400AGF) - 2016 года выпуска
-
№АртикулНазвание
-
554554DA0600 PIN-SNAP,1.2X21.2PIN-SNAP,1.2X21.2
-
1409114091-0408 COVER,FLOOR,CNTCOVER,FLOOR,CNT
-
14091A14091-0424 COVER,FLOOR,SIDE, LEFT HANDCOVER,FLOOR,SIDE, LEFT HAND
-
14091B14091-0425 COVER,FLOOR,SIDE, RIGHT HANDCOVER,FLOOR,SIDE, RIGHT HAND
-
1617116171-0026 LINK,HOODLINK,HOOD
-
2301623016-1128 LAMP-ASSY,TEMPLAMP-ASSY,TEMP
-
2302623026-1157 LENS,TEMP LAMPLENS,TEMP LAMP
-
3915639156-0071 PADPAD
-
5922659226-0009-284 PANEL-CONTROL,(GRAY)PANEL-CONTROL,(GRAY)
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1256 SCREW,6X22,(BLACK)SCREW,6X22,(BLACK)
-
92009B92009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1700 NUTNUT
-
9202292022-1143 WASHER,6.5X16X1WASHER,6.5X16X1
-
92022A92022-1346 WASHER,6.5X20X1.6,(BLACK)WASHER,6.5X20X1.6,(BLACK)
-
9203992039-1229 RIVETRIVET
-
9204392043-1626 PIN,6X9PIN,6X9
-
9206992069-1059 BULB,12V 1.7W,T10BULB,12V 1.7W,T10
-
9207292072-0042 BANDBAND
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9214592145-0215 SPRINGSPRING
-
9217292172-0002 SCREW,6X18SCREW,6X18
