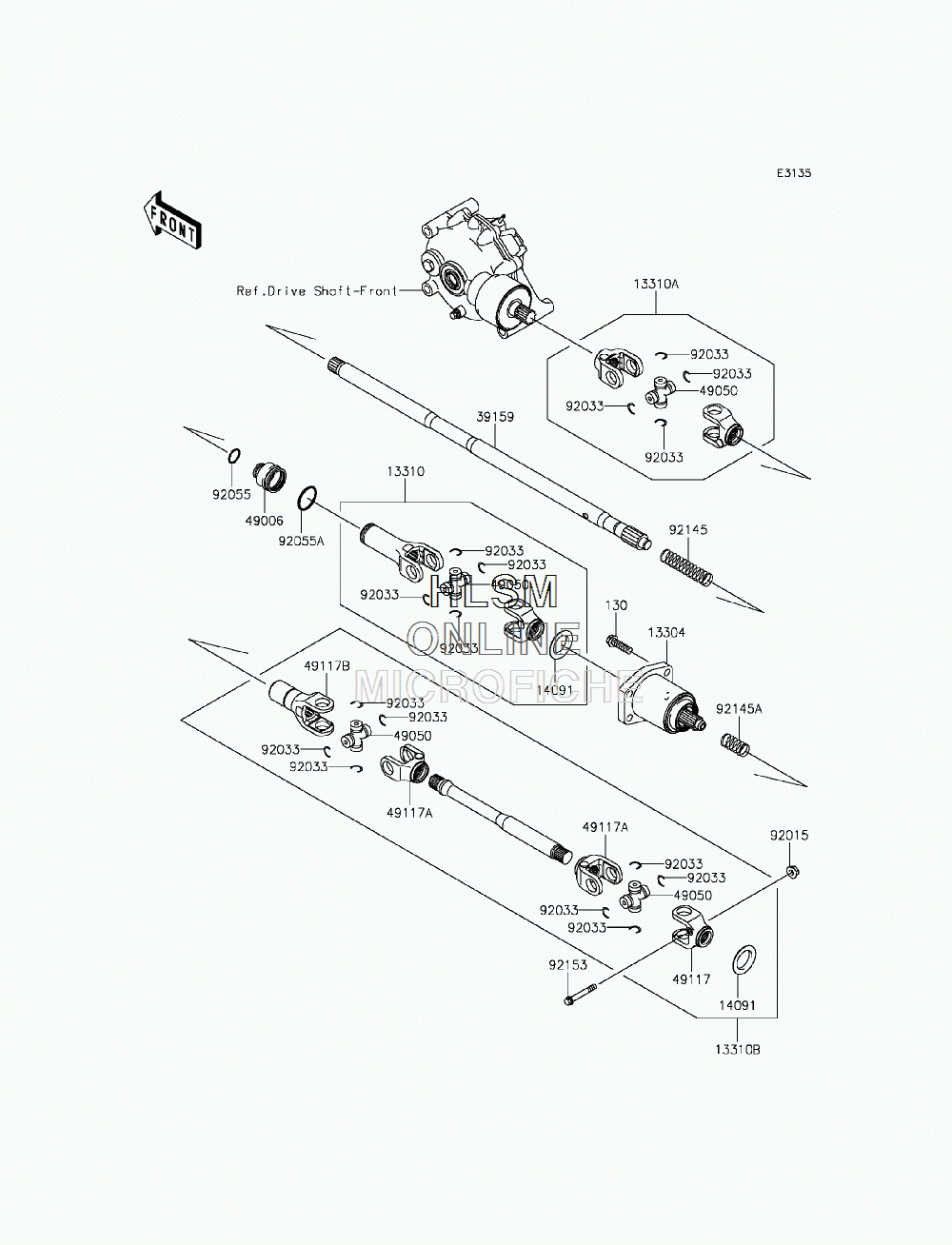

DRIVE SHAFT (PROPELLER) для Kawasaki MULE 610 4X4 SE FLEET (KAF400GGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA1035 BOLT-FLANGED,10X35BOLT-FLANGED,10X35
-
1330413304-0002 HOUSING-ASSYHOUSING-ASSY
-
1331013310-0569 SHAFT-ASSY,HOUSINGSHAFT-ASSY,HOUSING
-
13310A13310-0570 SHAFT-ASSY, FRONT GEARSHAFT-ASSY, FRONT GEAR
-
13310B13310-0571 SHAFT-ASSY, REAR GEARSHAFT-ASSY, REAR GEAR
-
1409114091-0434 COVERCOVER
-
3915939159-0568 SHAFT-DRIVE, FRONTSHAFT-DRIVE, FRONT
-
4900649006-0010 BOOTBOOT
-
4905049050-1075 SPIDERSPIDER
-
4911749117-0568 YOKE,21TYOKE,21T
-
49117A49117-0570 YOKE,21TYOKE,21T
-
49117B49117-0572 YOKE,13TYOKE,13T
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9203392033-1030 RING-SNAPRING-SNAP
-
9205592055-1633 RING-O,18X24X3RING-O,18X24X3
-
92055A92055-1693 RING-O,30X35X2.5RING-O,30X35X2.5
-
9214592145-0247 SPRINGSPRING
-
92145A92145-0280 SPRINGSPRING
-
9215392153-0595 BOLT,6X44BOLT,6X44
