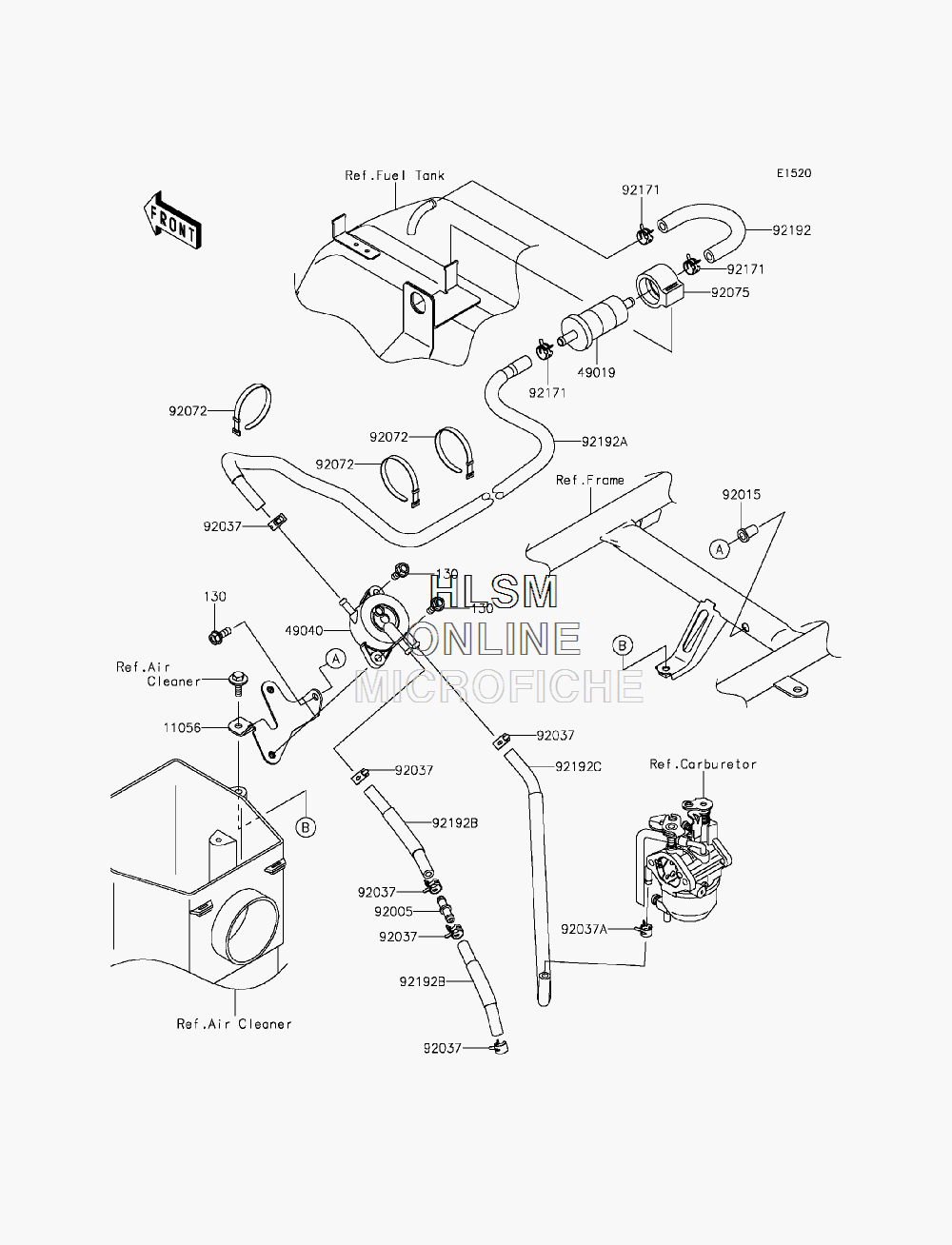

FUEL PUMP для Kawasaki MULE 610 4X4 SE FLEET (KAF400GGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
1105611056-7402 BRACKET,PUMP FUELBRACKET,PUMP FUEL
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
4904049040-0005 PUMP-FUELPUMP-FUEL
-
9200592005-0789 FITTINGFITTING
-
9201592015-1759 NUT,POP,6MMNUT,POP,6MM
-
9203792037-1505 CLAMP,TUBECLAMP,TUBE
-
92037A92037-2113 CLAMPCLAMP
-
9207292072-056 BAND,L=186BAND,L=186
-
9207592075-1853 DAMPER,FUEL FILTERDAMPER,FUEL FILTER
-
9217192171-0515 CLAMPCLAMP
-
9219292192-0243 TUBE,7.5X12.5X200TUBE,7.5X12.5X200
-
92192A92192-1453 TUBE,FILTER FUEL-PUMP FUELTUBE,FILTER FUEL-PUMP FUEL
-
92192B92192-1613 TUBE,CRAB.INSULATOR-PUMPTUBE,CRAB.INSULATOR-PUMP
-
92192C92192-1614 TUBE,PUMP FUEL-CARB.TUBE,PUMP FUEL-CARB.
