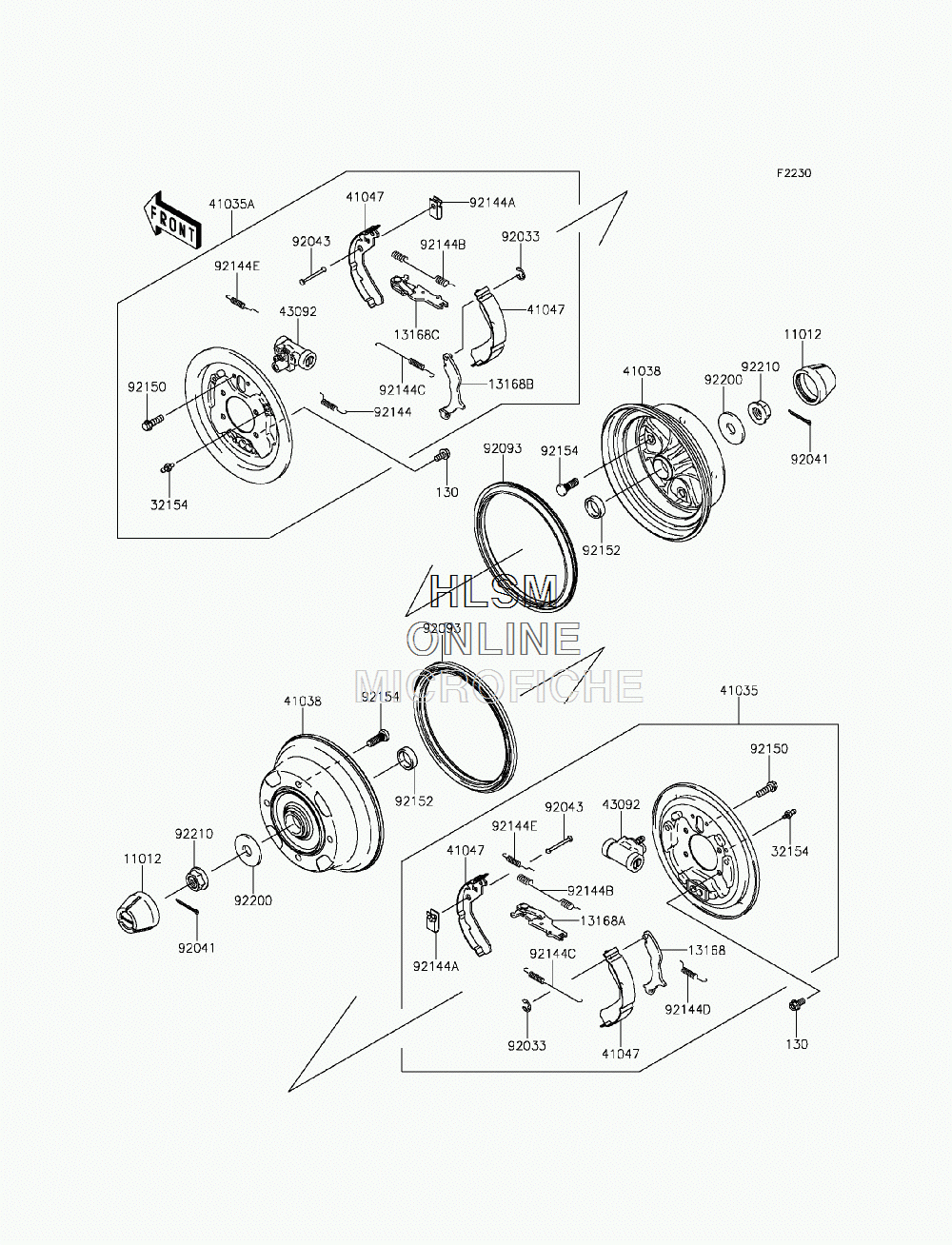

BRAKE - FRONT W/ HUB для Kawasaki MULE 610 4X4 XC CAMO (KAF400EGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130CA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
1101211012-1969 CAP,WHEELCAP,WHEEL
-
1316813168-0065 LEVER,BRAKE, LEFT HANDLEVER,BRAKE, LEFT HAND
-
13168A13168-0066 LEVER,BRAKE, LEFT HANDLEVER,BRAKE, LEFT HAND
-
13168B13168-0067 LEVER,BRAKE, RIGHT HANDLEVER,BRAKE, RIGHT HAND
-
13168C13168-0068 LEVER,BRAKE, RIGHT HANDLEVER,BRAKE, RIGHT HAND
-
3215432154-0335 PIPEPIPE
-
4103541035-0057 PANEL-ASSY-BRAKE, FRONT, LEFT HANDPANEL-ASSY-BRAKE, FRONT, LEFT HAND
-
41035A41035-0059 PANEL-ASSY-BRAKE, FRONT, RIGHT HANDPANEL-ASSY-BRAKE, FRONT, RIGHT HAND
-
4103841038-0013 DRUM, FRONT BRAKEDRUM, FRONT BRAKE
-
4104741047-0001 SHOE-ASSY-BRAKESHOE-ASSY-BRAKE
-
4309243092-0002 CYLINDER,BRAKECYLINDER,BRAKE
-
9203392033-1279 RING-SNAPRING-SNAP
-
9204192041-1053 COTTER,4.0X35COTTER,4.0X35
-
9204392043-1460 PIN,SHOE HOLDPIN,SHOE HOLD
-
9209392093-0031 SEAL,BS184.8X13.5-1SEAL,BS184.8X13.5-1
-
9214492144-1608 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
92144A92144-1609 SPRING,SHOE HOLDSPRING,SHOE HOLD
-
92144B92144-1612 SPRING, RETURN,UPPERSPRING, RETURN,UPPER
-
92144C92144-1613 SPRING, RETURN,LOWERSPRING, RETURN,LOWER
-
92144D92144-1614 SPRINGSPRING
-
92144E92144-1615 SPRINGSPRING
-
9215092150-1664 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9215292152-0164 COLLAR,25X34X10COLLAR,25X34X10
-
9215492154-1482 BOLT,10X34.6BOLT,10X34.6
-
9220092200-1474 WASHER,18.5X52X4.5WASHER,18.5X52X4.5
-
9221092210-0132 NUT,FLANGED,18MMNUT,FLANGED,18MM
