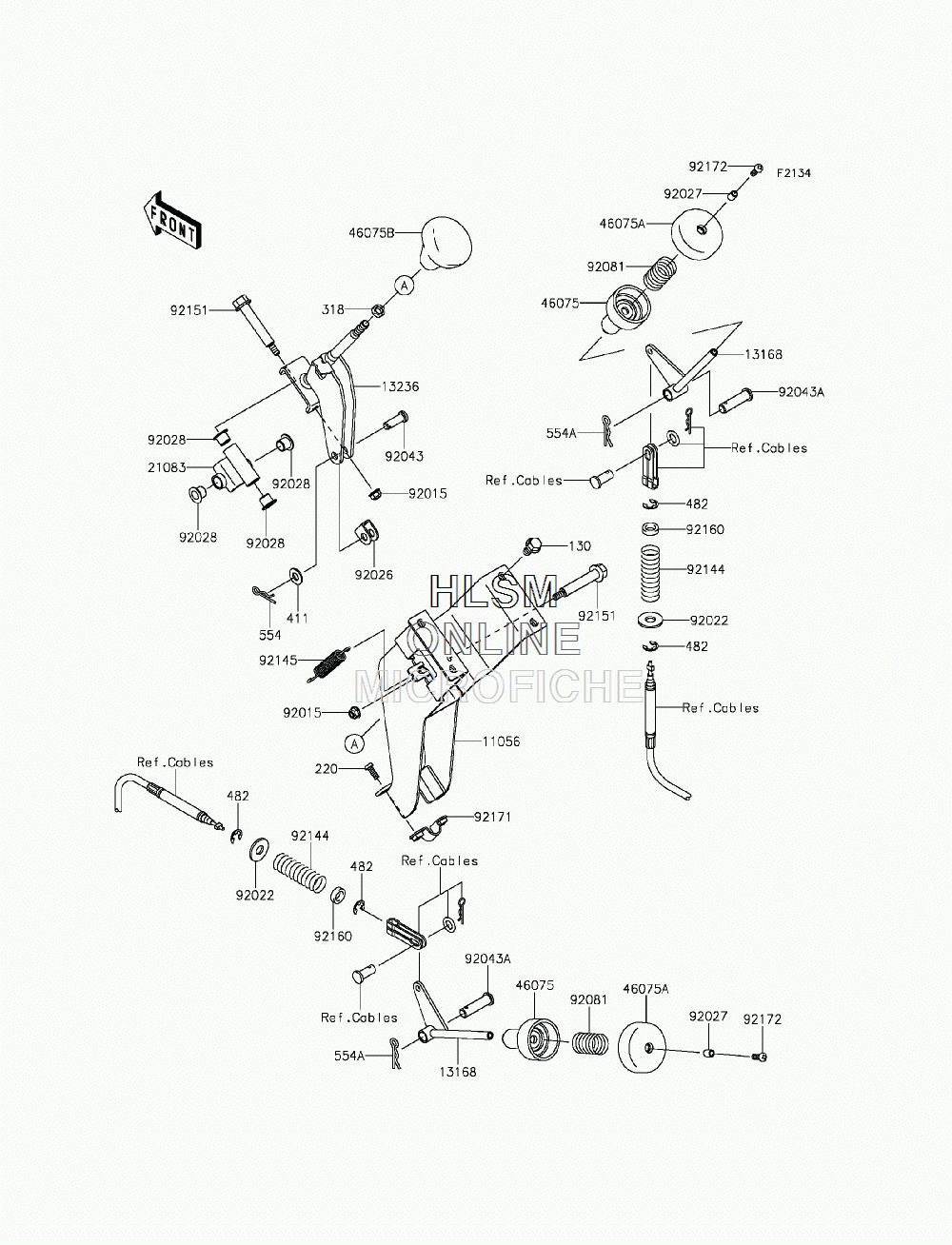

SHIFT LEVER(S) для Kawasaki MULE 610 4X4 XC CAMO (KAF400EGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
220220AA0514 SCREW-PAN-CROS,5X14SCREW-PAN-CROS,5X14
-
318318BB0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
411411AA0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
482482EA8000 CIRCLIP-TYPE-E,8MMCIRCLIP-TYPE-E,8MM
-
554554DA0800 PIN-SNAPPIN-SNAP
-
554A554DA1000 PIN-SNAP,10MMPIN-SNAP,10MM
-
1105611056-2237 BRACKET,SHIFT LEVERBRACKET,SHIFT LEVER
-
1316813168-0069 LEVERLEVER
-
1323613236-0073 LEVER-COMP,SHIFTLEVER-COMP,SHIFT
-
2108321083-0023 ARMARM
-
4607546075-0012 GRIPGRIP
-
46075A46075-0014 GRIPGRIP
-
46075B46075-0046 GRIP,SHIFTGRIP,SHIFT
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9202292022-044 WASHER,10.5X26X2.3WASHER,10.5X26X2.3
-
9202692026-0074 SPACERSPACER
-
9202792027-1313 COLLAR,5X7X9.3COLLAR,5X7X9.3
-
9202892028-1507 BUSHINGBUSHING
-
9204392043-0053 PINPIN
-
92043A92043-1069 PIN,10X34PIN,10X34
-
9208192081-1714 SPRINGSPRING
-
9214492144-1510 SPRINGSPRING
-
9214592145-0249 SPRINGSPRING
-
9215192151-1747 BOLT,6MMBOLT,6MM
-
9216092160-3754 DAMPERDAMPER
-
9217192171-0365 CLAMPCLAMP
-
9217292172-7501 SCREWSCREW
