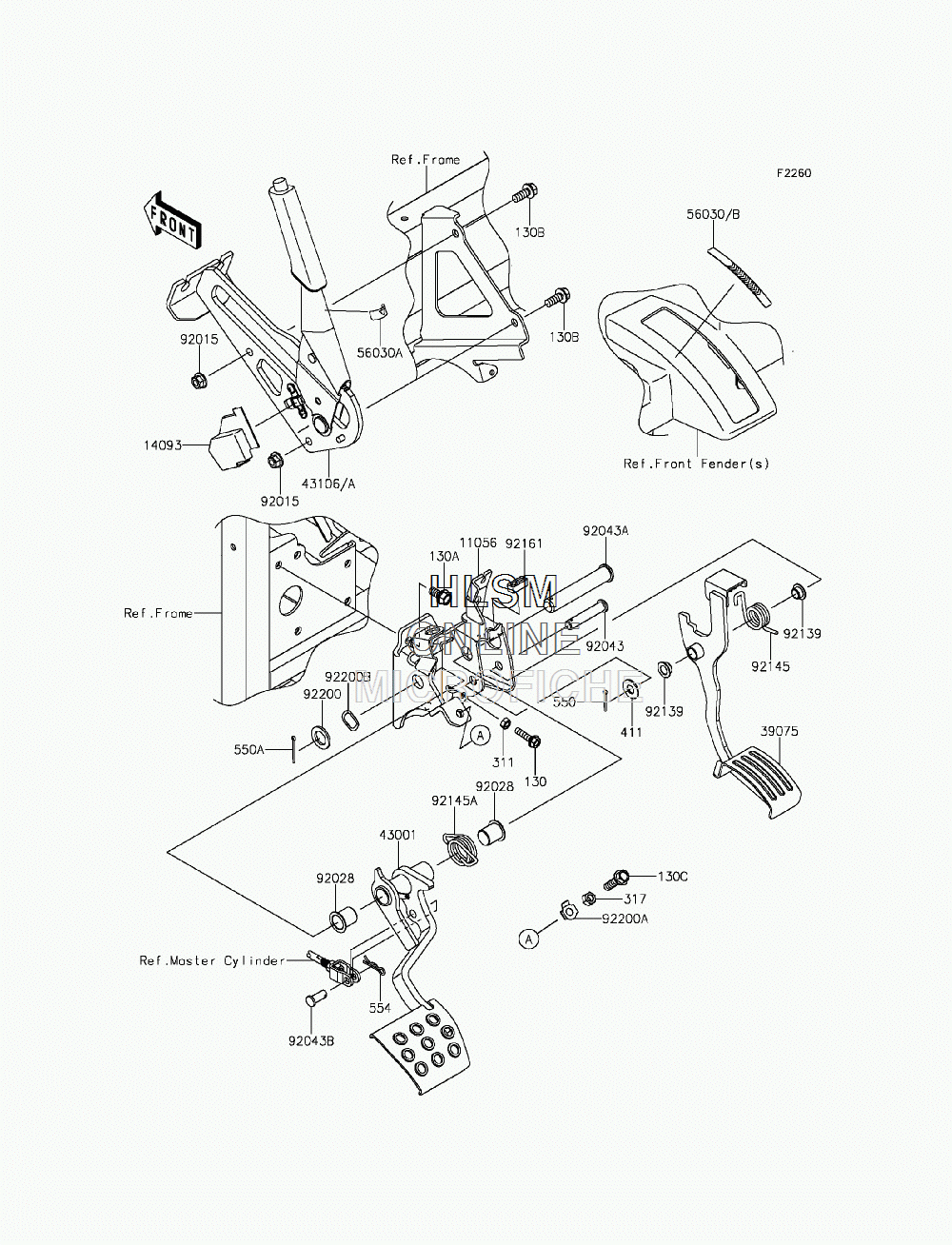

BRAKE PEDAL W/ THROTTLE LEVER для Kawasaki MULE PRO-FXT EPS LE (KAF820CGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0625 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
130A130BA0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
130B130BA0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
130C130BA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
311311BA0600 NUT-HEX,6MMNUT-HEX,6MM
-
317317BA0800 NUT-HEX-SMALL,8MMNUT-HEX-SMALL,8MM
-
411411AA1000 WASHER-PLAIN,10MMWASHER-PLAIN,10MM
-
550550AA2518 PIN-COTTER,2.5X18PIN-COTTER,2.5X18
-
550A550AA2525 PIN-COTTER,2.5X25PIN-COTTER,2.5X25
-
554554DA1000 PIN-SNAP,10MMPIN-SNAP,10MM
-
1105611056-2834 BRACKET,BRAKEBRACKET,BRAKE
-
1409314093-0241 COVER,PARKING BRAKE SW.COVER,PARKING BRAKE SW.
-
3907539075-0018 LEVER-THROTTLELEVER-THROTTLE
-
4300143001-0728 LEVER-BRAKE,FOOTLEVER-BRAKE,FOOT
-
43106A43106-0006 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
56030A56030-0905 LABEL,AREAROWLABEL,AREAROW
-
56030B56030-0930 LABEL,STROKE RANGELABEL,STROKE RANGE
-
9201592015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9202892028-1571 BUSHINGBUSHING
-
9204392043-0785 PIN,10X51.5PIN,10X51.5
-
92043A92043-0786 PIN,16X88PIN,16X88
-
92043B92043-1039 PINPIN
-
9213992139-0230 BUSHINGBUSHING
-
9214592145-0999 SPRING, RETURN,22X3.5SPRING, RETURN,22X3.5
-
92145A92145-1615 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
-
9216192161-1695 DAMPERDAMPER
-
9220092200-0043 WASHER,16X26X2.3WASHER,16X26X2.3
-
92200A92200-0993 WASHER,8.5X17X0.8WASHER,8.5X17X0.8
-
92200B92200-1689 WASHER,17X23X2.5WASHER,17X23X2.5
