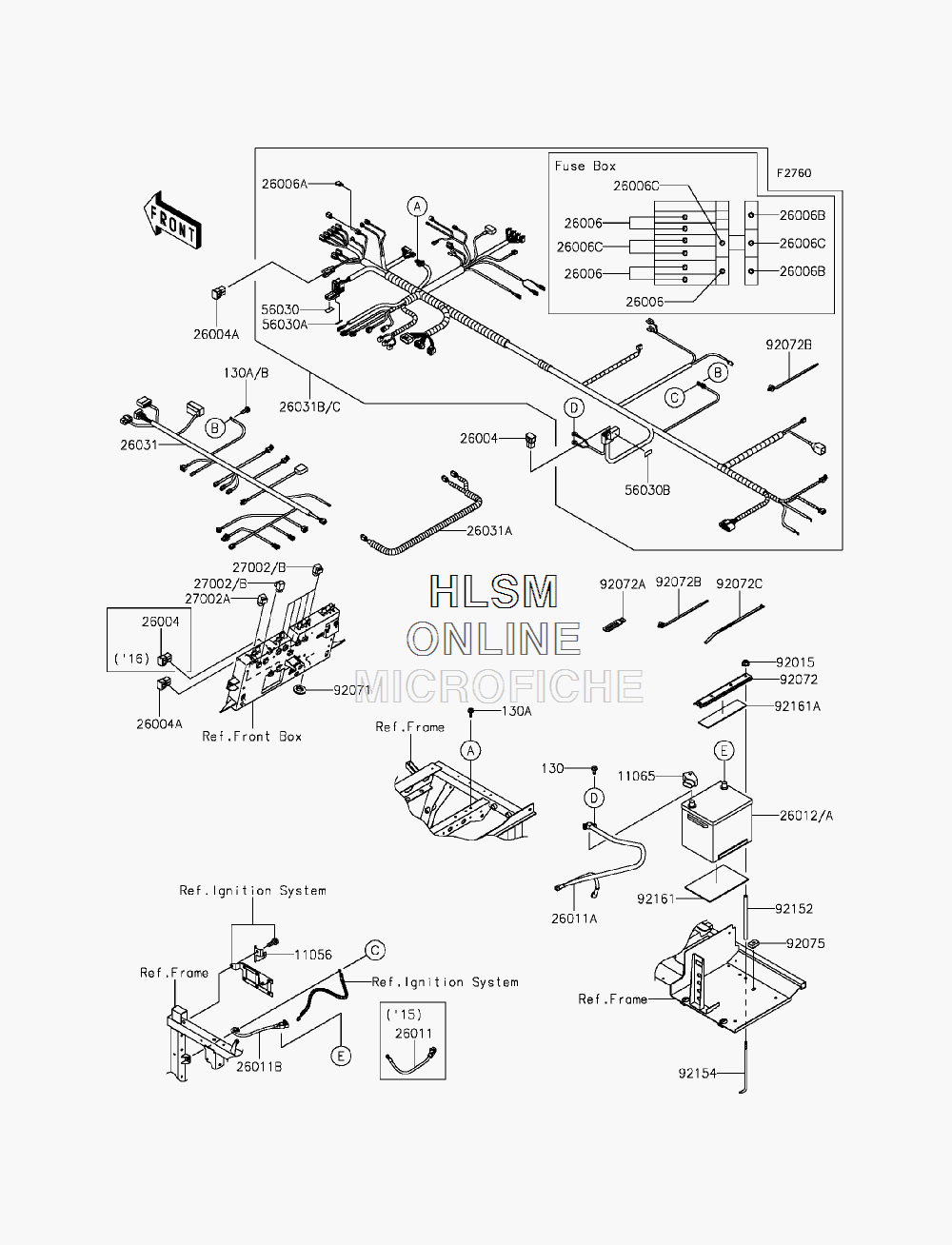

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE PRO-FXT EPS LE (KAF820CGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130B130BA0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
1105611056-4397 BRACKETBRACKET
-
1106511065-0850 CAPCAP
-
2600426004-0024 FUSE-ASSY,60AFUSE-ASSY,60A
-
26004A26004-1093 FUSE-ASSY,40AFUSE-ASSY,40A
-
2600626006-0009 FUSE,MINI BLADE,10A, (RED)FUSE,MINI BLADE,10A, (RED)
-
26006A26006-0052 FUSE,MINI BLADE,2A,(GRAY)FUSE,MINI BLADE,2A,(GRAY)
-
26006B26006-1080 FUSE,MINI BLADE,30A,(GREEN)FUSE,MINI BLADE,30A,(GREEN)
-
26006C26006-3704 FUSE,MINI BLADE,20A,(YELLOW)FUSE,MINI BLADE,20A,(YELLOW)
-
26011A26011-0851 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011B26011-0912 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
2601226012-0619 BATTERY,12V 32AH (USA ONLY)BATTERY,12V 32AH (USA ONLY)
-
26012A26012-7501 BATTERY,WET,(26R) (CANADA ONLY)BATTERY,WET,(26R) (CANADA ONLY)
-
2603126031-1644 HARNESSHARNESS
-
26031A26031-1647 HARNESS,SUBHARNESS,SUB
-
26031C26031-1857 HARNESS,MAINHARNESS,MAIN
-
27002A27002-0022 RELAY-ASSYRELAY-ASSY
-
27002B27002-1062 RELAY-ASSYRELAY-ASSY
-
5603056030-0850 LABEL,FUSE BOX1LABEL,FUSE BOX1
-
56030A56030-0854 LABEL,FUSE BOX2LABEL,FUSE BOX2
-
56030B56030-0891 LABEL,FUSE CASELABEL,FUSE CASE
-
9201592015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9207192071-0729 GROMMET,22X45X9GROMMET,22X45X9
-
9207292072-0767 BANDBAND
-
92072A92072-0770 BANDBAND
-
92072B92072-1414 BANDBAND
-
92072C92072-3509 BAND,L=292.1BAND,L=292.1
-
9207592075-099 DAMPERDAMPER
-
9215292152-1852 COLLAR,9.4X12.7X190.8COLLAR,9.4X12.7X190.8
-
9215492154-1650 BOLT,BATTERYBOLT,BATTERY
-
9216192161-0578 DAMPERDAMPER
-
92161A92161-1753 DAMPERDAMPER
