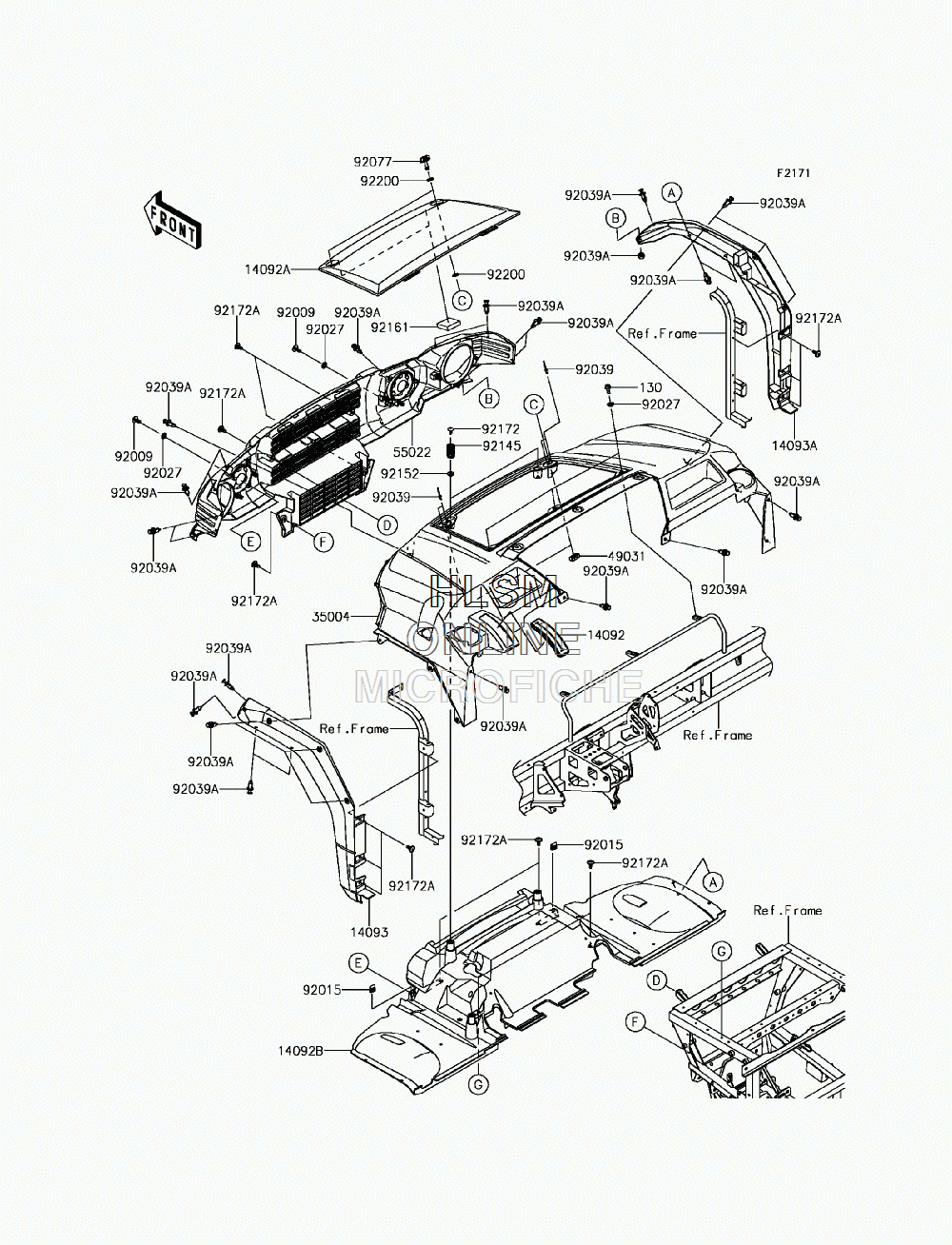

FENDER - FRONT для Kawasaki MULE PRO-DX (KAF1000DHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130CA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
1409214092-0791 COVER,CENTER CONSOLE,TOPCOVER,CENTER CONSOLE,TOP
-
14092A14092-1177-839 COVER,OPEN,S.BLACK (FOR 839)COVER,OPEN,S.BLACK (FOR 839)
-
14092A14092-1177-839 COVER,OPEN,S.BLACK (FOR 839)COVER,OPEN,S.BLACK (FOR 839)
-
14092B14092-1194 COVER,TOP, FRONT INNERCOVER,TOP, FRONT INNER
-
1409314093-0596 COVER,SIDE, LEFT HANDCOVER,SIDE, LEFT HAND
-
14093A14093-0597 COVER,SIDE, RIGHT HANDCOVER,SIDE, RIGHT HAND
-
3500435004-0335-839 FENDER-FRONT,S.BLACK (FOR 839)FENDER-FRONT,S.BLACK (FOR 839)
-
4903149031-0008 LATCHLATCH
-
5502255022-0304 COVER-HEAD LAMPCOVER-HEAD LAMP
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202792027-1168 COLLAR,L=4.6COLLAR,L=4.6
-
9203992039-0013 RIVET,3.2X9.8RIVET,3.2X9.8
-
92039A92039-1229 RIVETRIVET
-
9207792077-0030 KNOBKNOB
-
9214592145-1727 SPRING,17X65SPRING,17X65
-
9215292152-0140 COLLARCOLLAR
-
9216192161-1861 DAMPER,40X40X10DAMPER,40X40X10
-
9217292172-0284 SCREW,6X16SCREW,6X16
-
92172A92172-0711 SCREW,6X16SCREW,6X16
-
9220092200-0503 WASHERWASHER
