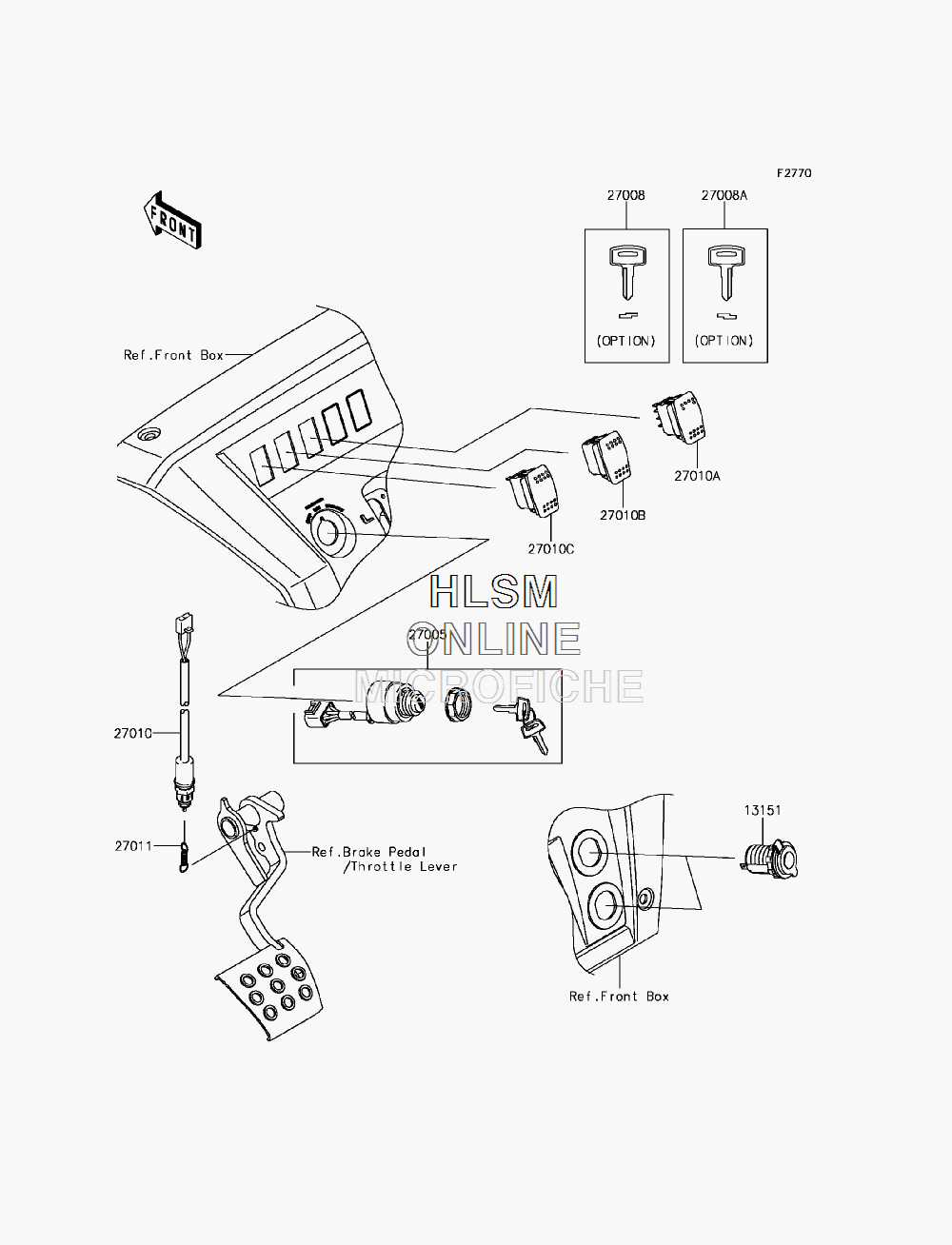

SWITCHES для Kawasaki MULE PRO-DX (KAF1000DHF) - 2017 года выпуска
-
№АртикулНазвание
-
1315113151-0556 SWITCH-COMP,OUTLET,12VSWITCH-COMP,OUTLET,12V
-
2700527005-0585 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0724 SWITCH,BRAKESWITCH,BRAKE
-
27010A27010-0750 SWITCH,HEAD LAMPSWITCH,HEAD LAMP
-
27010B27010-0751 SWITCH,2WD/4WDSWITCH,2WD/4WD
-
27010C27010-0810 SWITCH,DIFF LOCKSWITCH,DIFF LOCK
-
2701127011-006 SPRING,BRAKE LAMP SWITCHSPRING,BRAKE LAMP SWITCH
