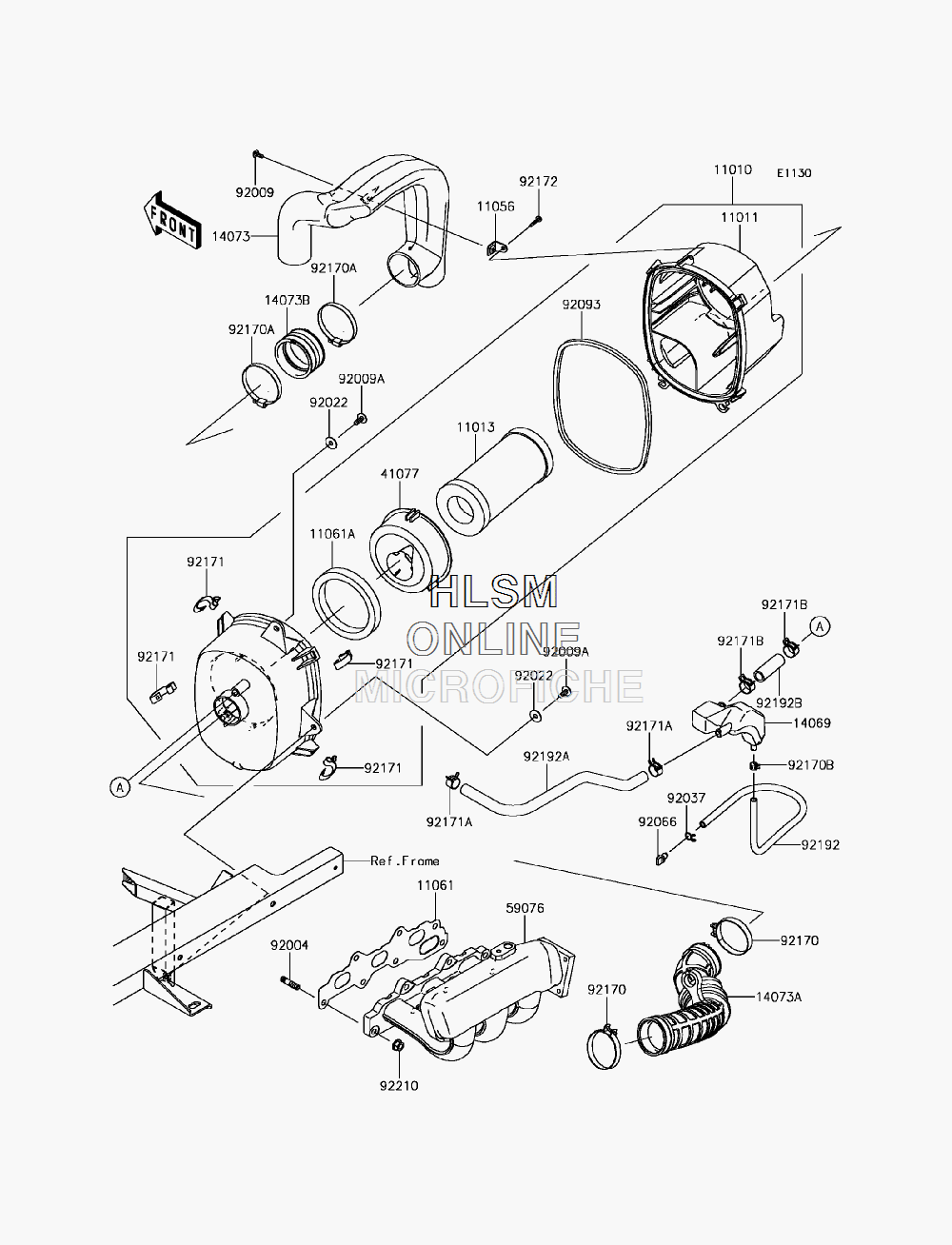

AIR CLEANER для Kawasaki MULE PRO-FX (KAF820EHF) - 2017 года выпуска
-
№АртикулНазвание
-
1101011010-0808 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0813 CASE-AIR FILTER,UPPCASE-AIR FILTER,UPP
-
1101311013-1290 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1105611056-3734 BRACKET,AIR FILTERBRACKET,AIR FILTER
-
1106111061-0956 GASKET,INTAKE MANIFOLDGASKET,INTAKE MANIFOLD
-
11061A11061-0961 GASKET,ADAPTERGASKET,ADAPTER
-
1406914069-0020 BREATHERBREATHER
-
1407314073-0786 DUCT,INTAKEDUCT,INTAKE
-
14073A14073-0787 DUCT,AIR FILTER-THROTTLEDUCT,AIR FILTER-THROTTLE
-
14073B14073-1775 DUCT,JOINTDUCT,JOINT
-
4107741077-0719 ADAPTER,ELEMENTADAPTER,ELEMENT
-
5907659076-0007 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9200492004-0734 STUDSTUD
-
9200992009-1154 SCREW,5X12SCREW,5X12
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
9202292022-165 WASHER,PLAIN,6MMWASHER,PLAIN,6MM
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9209392093-0607 SEAL,AIR FILTERSEAL,AIR FILTER
-
9217092170-1448 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
-
92170B92170-2042 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-0533 CLAMPCLAMP
-
92171B92171-1277 CLAMPCLAMP
-
9217292172-0009 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
9219292192-0156 TUBE,7X10X500TUBE,7X10X500
-
92192A92192-1339 TUBE,ENGINE-CATCH TANKTUBE,ENGINE-CATCH TANK
-
92192B92192-1438 TUBE,AIR FILTER-CATCH TANKTUBE,AIR FILTER-CATCH TANK
-
9221092210-0944 NUTNUT
