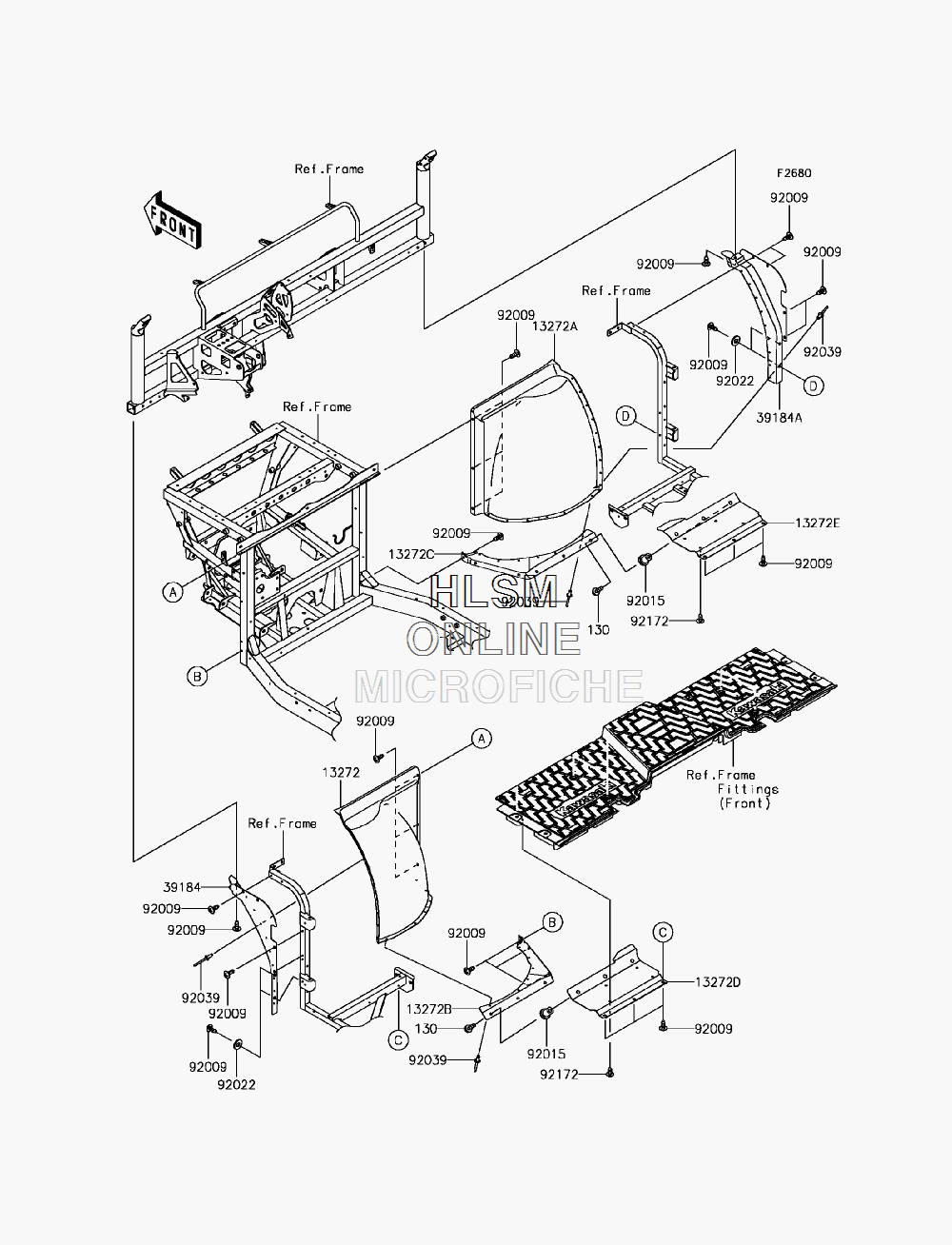

GUARD(S) для Kawasaki MULE PRO-FX (KAF820EHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
1327213272-2323 PLATEPLATE
-
13272A13272-2324 PLATEPLATE
-
13272B13272-2327 PLATEPLATE
-
13272C13272-2328 PLATEPLATE
-
13272D13272-2330 PLATE,UNDER GUARD, LEFT HANDPLATE,UNDER GUARD, LEFT HAND
-
13272E13272-2331 PLATE,UNDER GUARD, RIGHT HANDPLATE,UNDER GUARD, RIGHT HAND
-
3918439184-0718 BRACKET-ASSY,SIDE, LEFT HANDBRACKET-ASSY,SIDE, LEFT HAND
-
39184A39184-0719 BRACKET-ASSY,SIDE, RIGHT HANDBRACKET-ASSY,SIDE, RIGHT HAND
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9201592015-1692 NUT,RUBBER,6MMNUT,RUBBER,6MM
-
9202292022-1533 WASHER,8.2X19X2WASHER,8.2X19X2
-
9203992039-0778 RIVETRIVET
-
9217292172-0284 SCREW,6X16SCREW,6X16
