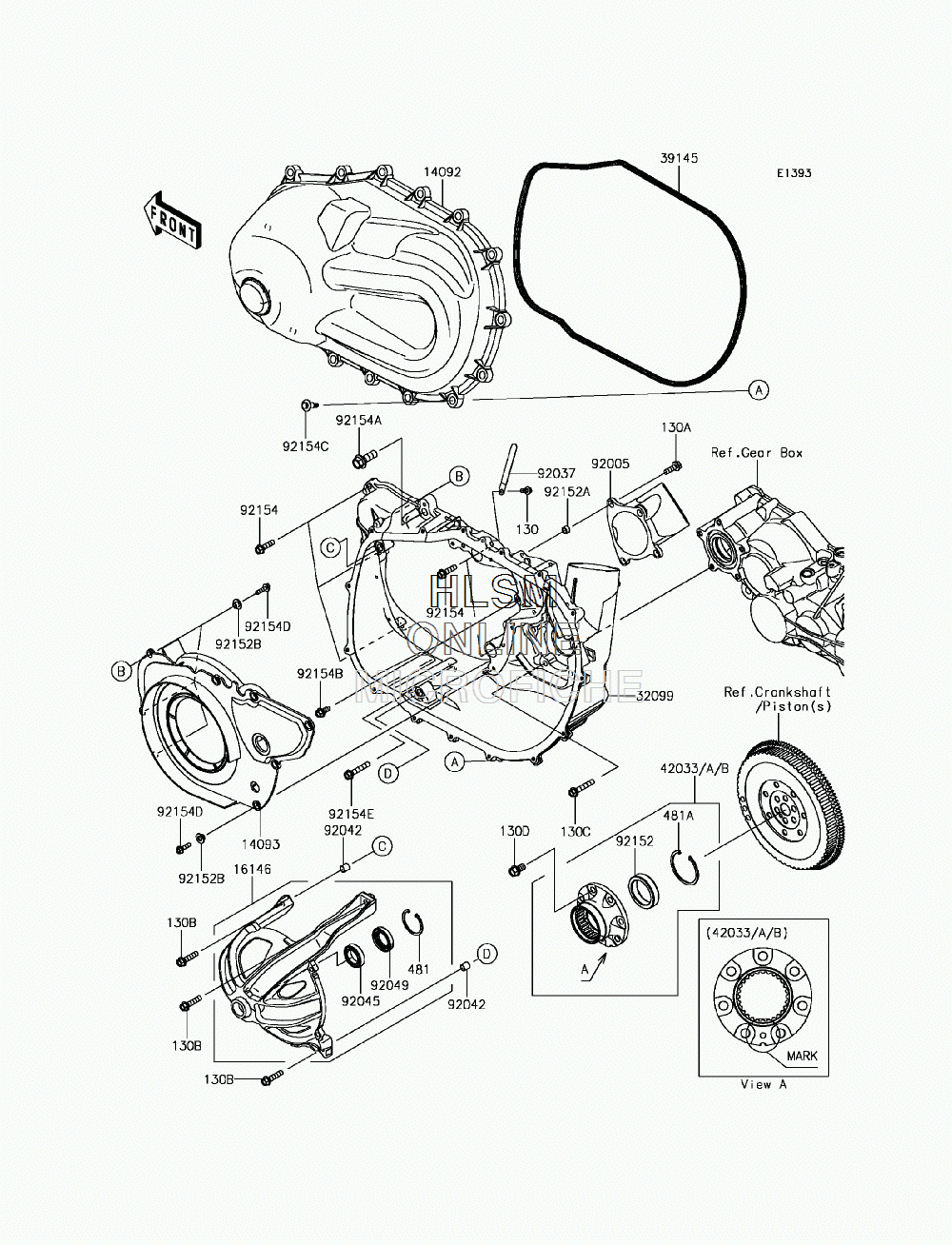

CONVERTER COVER для Kawasaki MULE PRO-FXT EPS (KAF820BHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130BA0825 BOLT-FLANGED,8X25BOLT-FLANGED,8X25
-
130B130BA0835 BOLT-FLANGED,8X35BOLT-FLANGED,8X35
-
130C130BA0845 BOLT-FLANGED,8X45BOLT-FLANGED,8X45
-
130D130CA1018 BOLT-FLANGED,10X18BOLT-FLANGED,10X18
-
481481J4500 CIRCLIP-TYPE-C,45MMCIRCLIP-TYPE-C,45MM
-
481A481J6200 CIRCLIPCIRCLIP
-
1409214092-1202 COVER,CVTCOVER,CVT
-
1409314093-0050 COVERCOVER
-
1614616146-0734 COVER-ASSYCOVER-ASSY
-
3209932099-0746 CASE,CVTCASE,CVT
-
3914539145-0047 TRIM-SEALTRIM-SEAL
-
4203342033-0582 COUPLING-ASSY,B MARK,WHITECOUPLING-ASSY,B MARK,WHITE
-
42033A42033-0583 COUPLING-ASSY,A MARK,BLUECOUPLING-ASSY,A MARK,BLUE
-
42033B42033-0584 COUPLING-ASSY,C MARK,YELLOWCOUPLING-ASSY,C MARK,YELLOW
-
9200592005-0762 FITTING,INTAKEFITTING,INTAKE
-
9203792037-1993 CLAMPCLAMP
-
9204292042-031 PIN,DOWEL,12X14PIN,DOWEL,12X14
-
9204592045-036 BEARING-BALL,#6905BEARING-BALL,#6905
-
9204992049-0767 SEAL-OIL,HTC 28X45X8SEAL-OIL,HTC 28X45X8
-
9215292152-1822 COLLARCOLLAR
-
92152A92152-1853 COLLAR,8.8X12.3X6.9COLLAR,8.8X12.3X6.9
-
92152B92152-1931 COLLARCOLLAR
-
9215492154-0850 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
-
92154A92154-1337 BOLT,FLANGED,12X35BOLT,FLANGED,12X35
-
92154B92154-1386 BOLT,FLANGED,8X18BOLT,FLANGED,8X18
-
92154C92154-1522 BOLT,CVT COVERBOLT,CVT COVER
-
92154D92154-1525 BOLT,FLANGED,6X22BOLT,FLANGED,6X22
-
92154E92154-1526 BOLT,FLANGED,8X45BOLT,FLANGED,8X45
