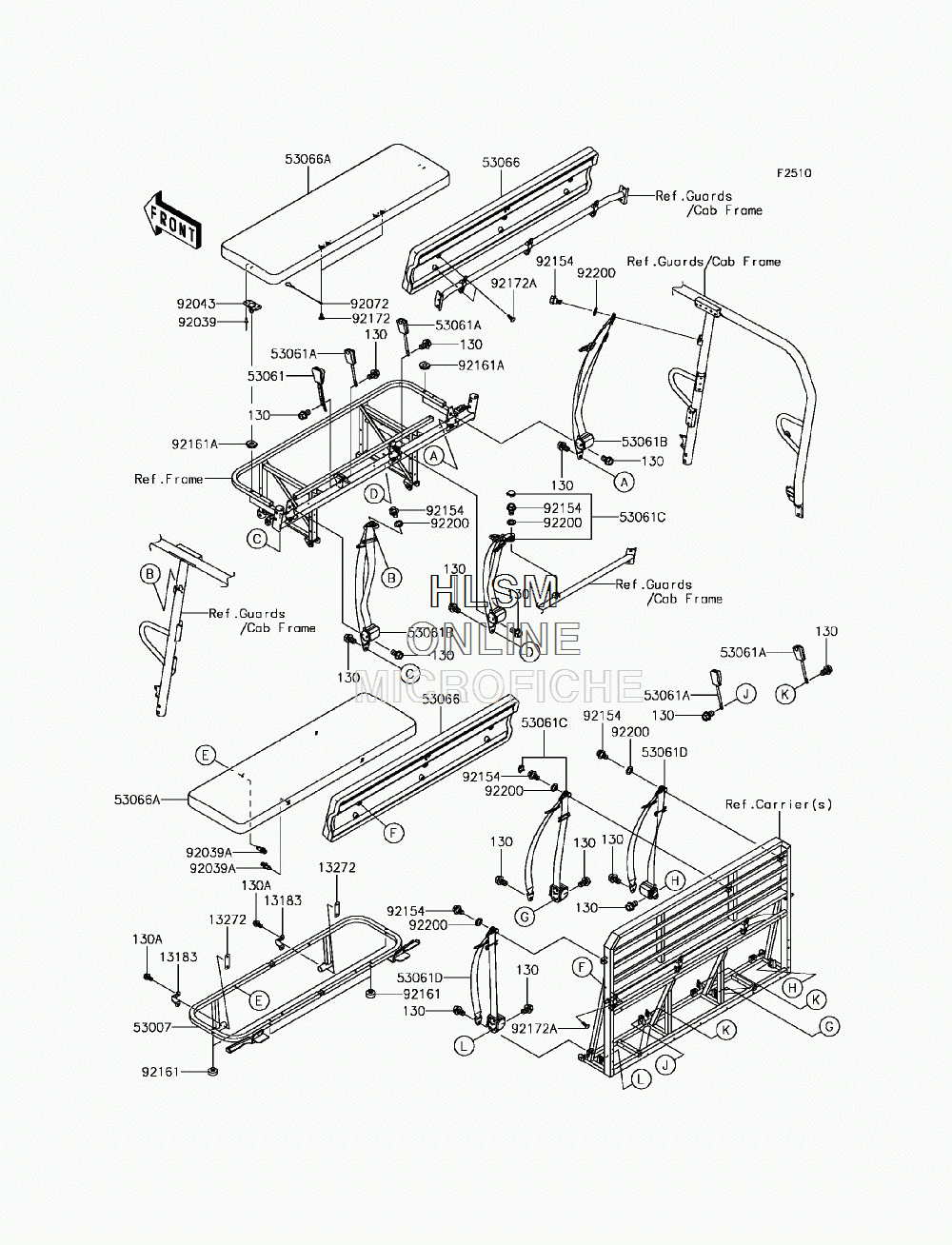

SEAT для Kawasaki MULE PRO-FXT EPS (KAF820BHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED,12X20BOLT-FLANGED,12X20
-
130A130CA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
1318313183-1400 PLATE,SEATPLATE,SEAT
-
1327213272-1699 PLATEPLATE
-
5300753007-0364 FRAME-SEATFRAME-SEAT
-
5306153061-0038 BELT-SEAT,BUCKLE,SW.BELT-SEAT,BUCKLE,SW.
-
53061A53061-0039 BELT-SEAT,BUCKLEBELT-SEAT,BUCKLE
-
53061B53061-0045 BELT-SEAT, FRONT, LEFT HAND & RIGHT HANDBELT-SEAT, FRONT, LEFT HAND & RIGHT HAND
-
53061C53061-0046 BELT-SEAT,MIDDLEBELT-SEAT,MIDDLE
-
53061D53061-0047 BELT-SEAT, REAR, LEFT HAND & RIGHT HANDBELT-SEAT, REAR, LEFT HAND & RIGHT HAND
-
5306653066-0426-MA SEAT-ASSY,BACK,BLACKSEAT-ASSY,BACK,BLACK
-
53066A53066-0495-MA SEAT-ASSY,BOTTOM,BLACKSEAT-ASSY,BOTTOM,BLACK
-
9203992039-0747 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-0859 PINPIN
-
9207292072-0769 BANDBAND
-
9215492154-1959 BOLT,FLANGED,10X19.5BOLT,FLANGED,10X19.5
-
9216192161-1065 DAMPER,SEATDAMPER,SEAT
-
92161A92161-1784 DAMPER,10.5X30X8.2DAMPER,10.5X30X8.2
-
9217292172-0284 SCREW,6X16SCREW,6X16
-
92172A92172-0488 SCREW,TAPPING,6X20SCREW,TAPPING,6X20
-
9220092200-1798 WASHER,16X22X2WASHER,16X22X2
