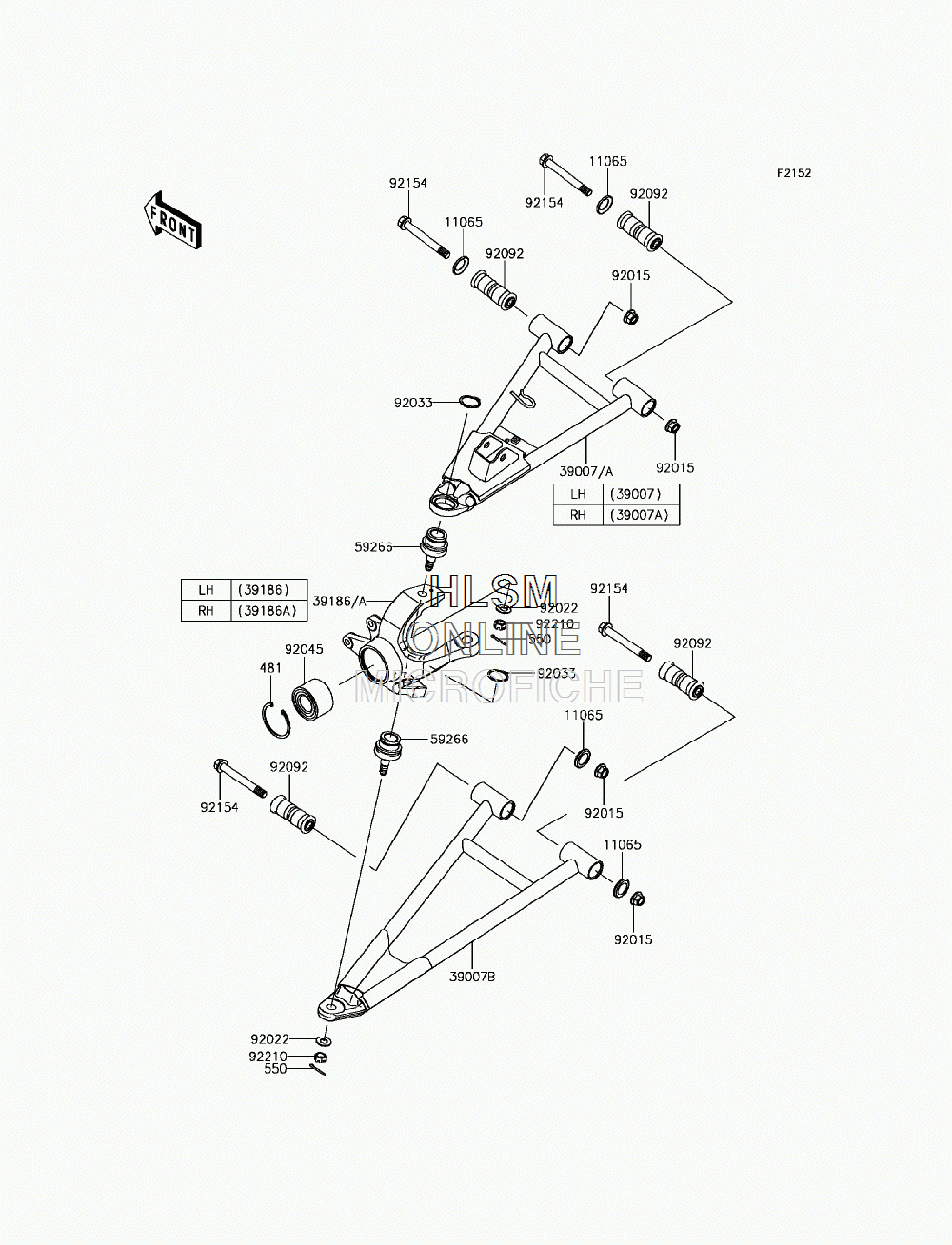

SUSPENSION - FRONT для Kawasaki MULE PRO-FXT (KAF820AHF) - 2017 года выпуска
-
№АртикулНазвание
-
481481J6000 CIRCLIP-TYPE-CCIRCLIP-TYPE-C
-
550550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
1106511065-0838 CAP,ARMCAP,ARM
-
3900739007-0377 ARM-SUSP, FRONT,UPP, LEFT HANDARM-SUSP, FRONT,UPP, LEFT HAND
-
39007A39007-0378 ARM-SUSP, FRONT,UPP, RIGHT HANDARM-SUSP, FRONT,UPP, RIGHT HAND
-
39007B39007-0383 ARM-SUSP, FRONT,LWR, LEFT HAND & RIGHT HANDARM-SUSP, FRONT,LWR, LEFT HAND & RIGHT HAND
-
3918639186-0319 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0320 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
5926659266-0711 JOINT-BALLJOINT-BALL
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9202292022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP,C-TYPE,32MMRING-SNAP,C-TYPE,32MM
-
9204592045-0762 BEARING-BALL,30X60X37BEARING-BALL,30X60X37
-
9209292092-0028 BUSHING-RUBBER,12X20X78BUSHING-RUBBER,12X20X78
-
9215492154-1318 BOLT,FLANGED,12X100BOLT,FLANGED,12X100
-
9221092210-0395 NUT,CASTLE,12MMNUT,CASTLE,12MM
-
481481J6000 CIRCLIP-TYPE-CCIRCLIP-TYPE-C
-
550550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
1106511065-0838 CAP,ARMCAP,ARM
-
3900739007-0377 ARM-SUSP, FRONT,UPP, LEFT HANDARM-SUSP, FRONT,UPP, LEFT HAND
-
39007A39007-0378 ARM-SUSP, FRONT,UPP, RIGHT HANDARM-SUSP, FRONT,UPP, RIGHT HAND
-
39007B39007-0383 ARM-SUSP, FRONT,LWR, LEFT HAND & RIGHT HANDARM-SUSP, FRONT,LWR, LEFT HAND & RIGHT HAND
-
3918639186-0319 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0320 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
5926659266-0711 JOINT-BALLJOINT-BALL
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9202292022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP,C-TYPE,32MMRING-SNAP,C-TYPE,32MM
-
9204592045-0762 BEARING-BALL,30X60X37BEARING-BALL,30X60X37
-
9209292092-0028 BUSHING-RUBBER,12X20X78BUSHING-RUBBER,12X20X78
-
9215492154-1318 BOLT,FLANGED,12X100BOLT,FLANGED,12X100
-
9221092210-0395 NUT,CASTLE,12MMNUT,CASTLE,12MM
