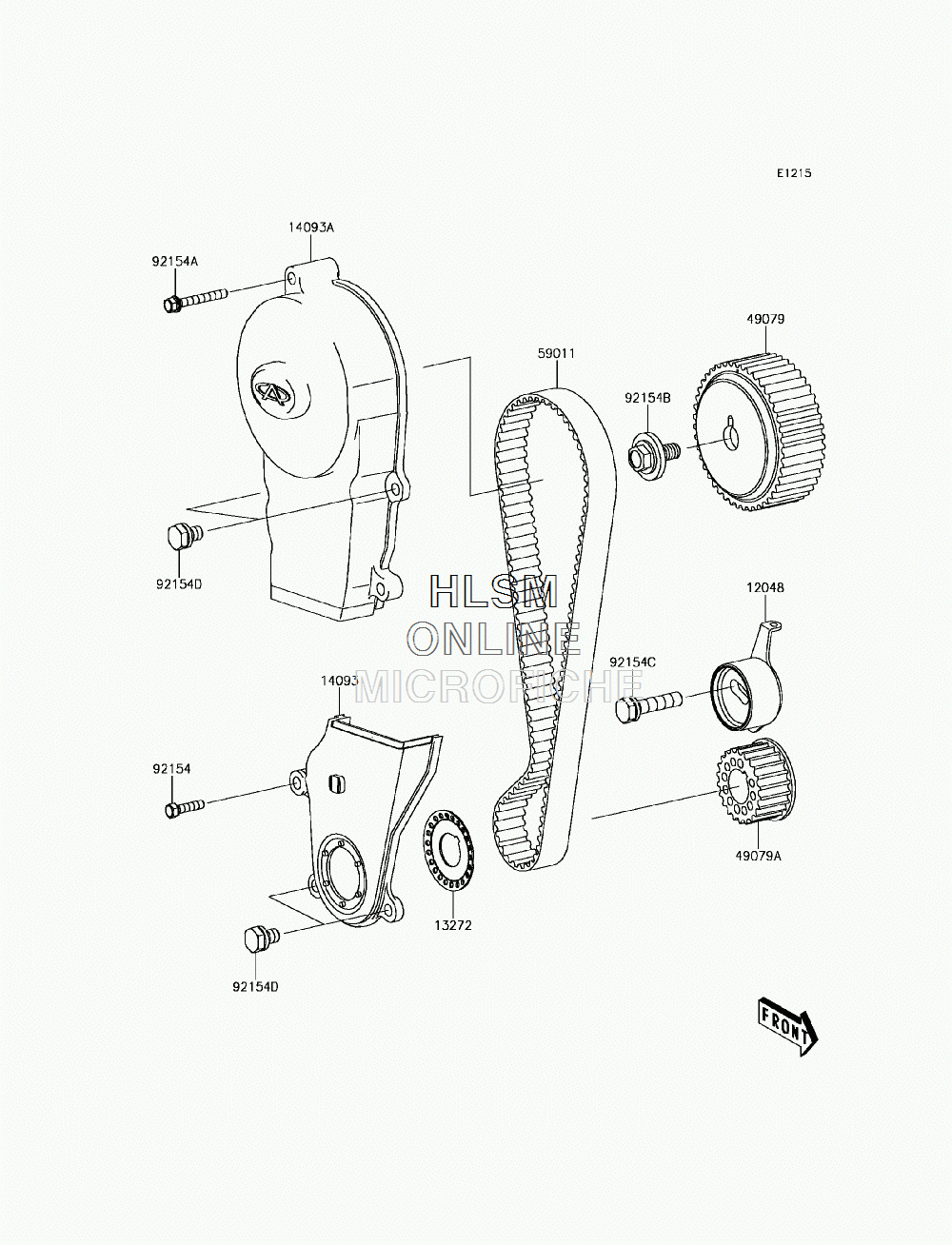

TIMING BELT для Kawasaki MULE PRO-FXT (KAF820AHF) - 2017 года выпуска
-
№АртикулНазвание
-
1204812048-0093 TENSIONER-ASSYTENSIONER-ASSY
-
1327213272-1872 PLATE,TIMING BELTPLATE,TIMING BELT
-
1409314093-0200 COVER,TIMING BELT,LWRCOVER,TIMING BELT,LWR
-
14093A14093-0201 COVER,TIMING BELT,UPPCOVER,TIMING BELT,UPP
-
4907949079-0023 PULLEY-BELT,CAMSHAFTPULLEY-BELT,CAMSHAFT
-
49079A49079-0024 PULLEY-BELT,CRANKSHAFTPULLEY-BELT,CRANKSHAFT
-
5901159011-0042 BELT,TIMINGBELT,TIMING
-
9215492154-1583 BOLT,6X25BOLT,6X25
-
92154A92154-1591 BOLT,6X50BOLT,6X50
-
92154B92154-1614 BOLT,FLANGEDBOLT,FLANGED
-
92154C92154-1615 BOLT,10X45BOLT,10X45
-
92154D92154-1617 BOLT,6X16BOLT,6X16
-
1204812048-0093 TENSIONER-ASSYTENSIONER-ASSY
-
1327213272-1872 PLATE,TIMING BELTPLATE,TIMING BELT
-
1409314093-0200 COVER,TIMING BELT,LWRCOVER,TIMING BELT,LWR
-
14093A14093-0201 COVER,TIMING BELT,UPPCOVER,TIMING BELT,UPP
-
4907949079-0023 PULLEY-BELT,CAMSHAFTPULLEY-BELT,CAMSHAFT
-
49079A49079-0024 PULLEY-BELT,CRANKSHAFTPULLEY-BELT,CRANKSHAFT
-
5901159011-0042 BELT,TIMINGBELT,TIMING
-
9215492154-1583 BOLT,6X25BOLT,6X25
-
92154A92154-1591 BOLT,6X50BOLT,6X50
-
92154B92154-1614 BOLT,FLANGEDBOLT,FLANGED
-
92154C92154-1615 BOLT,10X45BOLT,10X45
-
92154D92154-1617 BOLT,6X16BOLT,6X16
