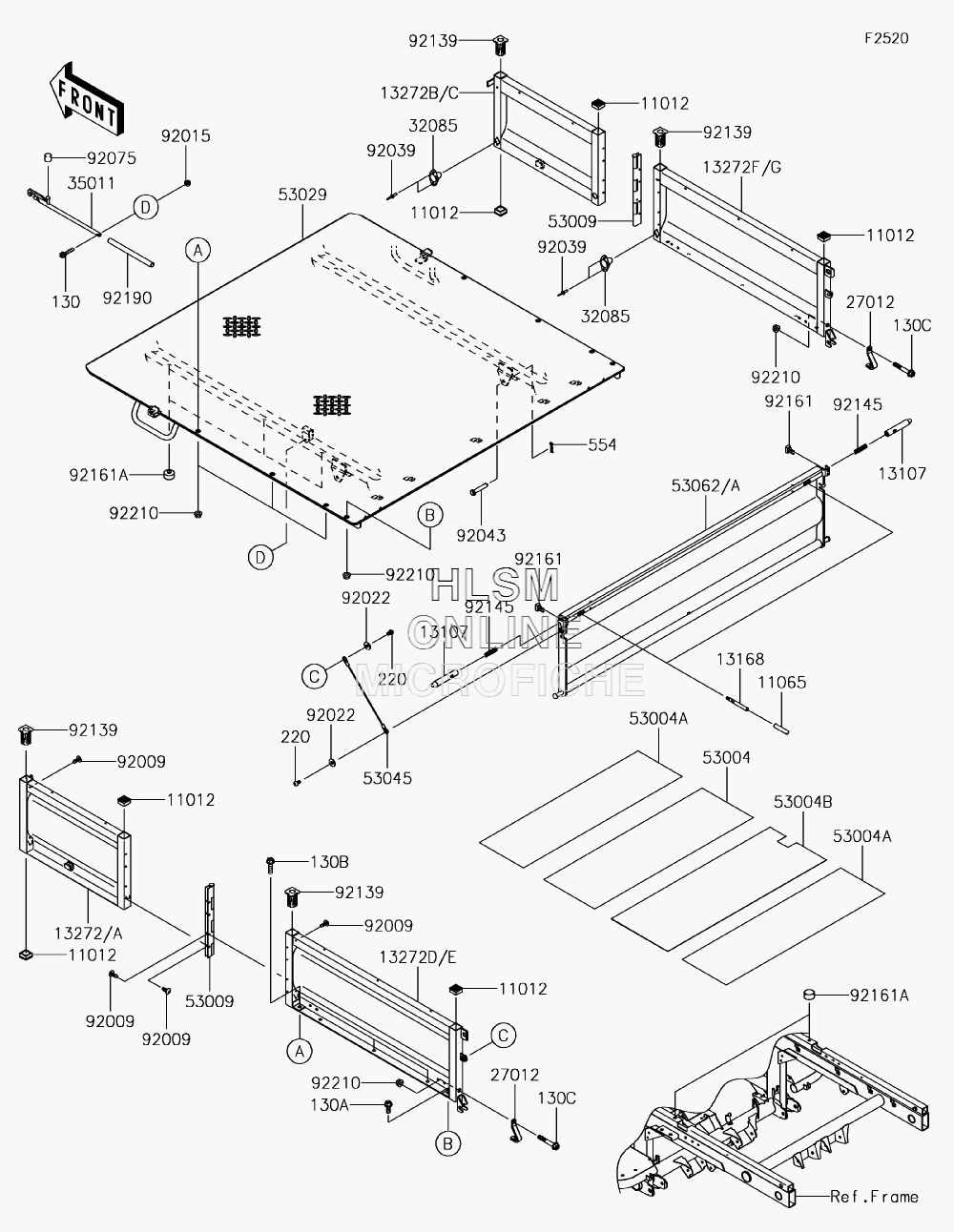

CARRIER(S) для Kawasaki MULE 4000 TRANS (KAF620WJF) - 2018 года выпуска
-
№АртикулНазвание
-
1101211012-1784 CAPCAP
-
1106511065-0126 CAPCAP
-
130130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130A130BB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130BB0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130C130BB0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
1310713107-0082 SHAFTSHAFT
-
1316813168-0090 LEVERLEVER
-
13272A13272-0501-16M PLATE, SIDE, FRONT, LEFT HAND, (D.R.RED)PLATE, SIDE, FRONT, LEFT HAND, (D.R.RED)
-
13272C13272-0502-16M PLATE, SIDE, FRONT, RIGHT HAND, (D.R.RED)PLATE, SIDE, FRONT, RIGHT HAND, (D.R.RED)
-
13272E13272-1233-16M PLATE, SIDE, REAR, LEFT HAND, (D.R.RED)PLATE, SIDE, REAR, LEFT HAND, (D.R.RED)
-
13272G13272-1234-16M PLATE, SIDE, REAR, RIGHT HAND, (D.R.RED)PLATE, SIDE, REAR, RIGHT HAND, (D.R.RED)
-
220220AB0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
2701227012-0022 HOOK, TAIL GATEHOOK, TAIL GATE
-
3208532085-7501 STOPPERSTOPPER
-
3501135011-1648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
5300453004-0031 MAT, CARRIERMAT, CARRIER
-
53004A53004-0032 MAT, CARRIERMAT, CARRIER
-
53004B53004-7501 MATMAT
-
5300953009-7501 HINGE, CARRIERHINGE, CARRIER
-
5302953029-0313-10 CARRIER, BASE PLATE, (BLACK)CARRIER, BASE PLATE, (BLACK)
-
5304553045-0031 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
53062A53062-7503-16M GATE-TAIL, (D.R.RED)GATE-TAIL, (D.R.RED)
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9203992039-1150 RIVETRIVET
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
9213992139-7501 BUSHING, REAR SCREENBUSHING, REAR SCREEN
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9216192161-0258 DAMPERDAMPER
-
92161A92161-7510 DAMPERDAMPER
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
-
9221092210-0555 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
