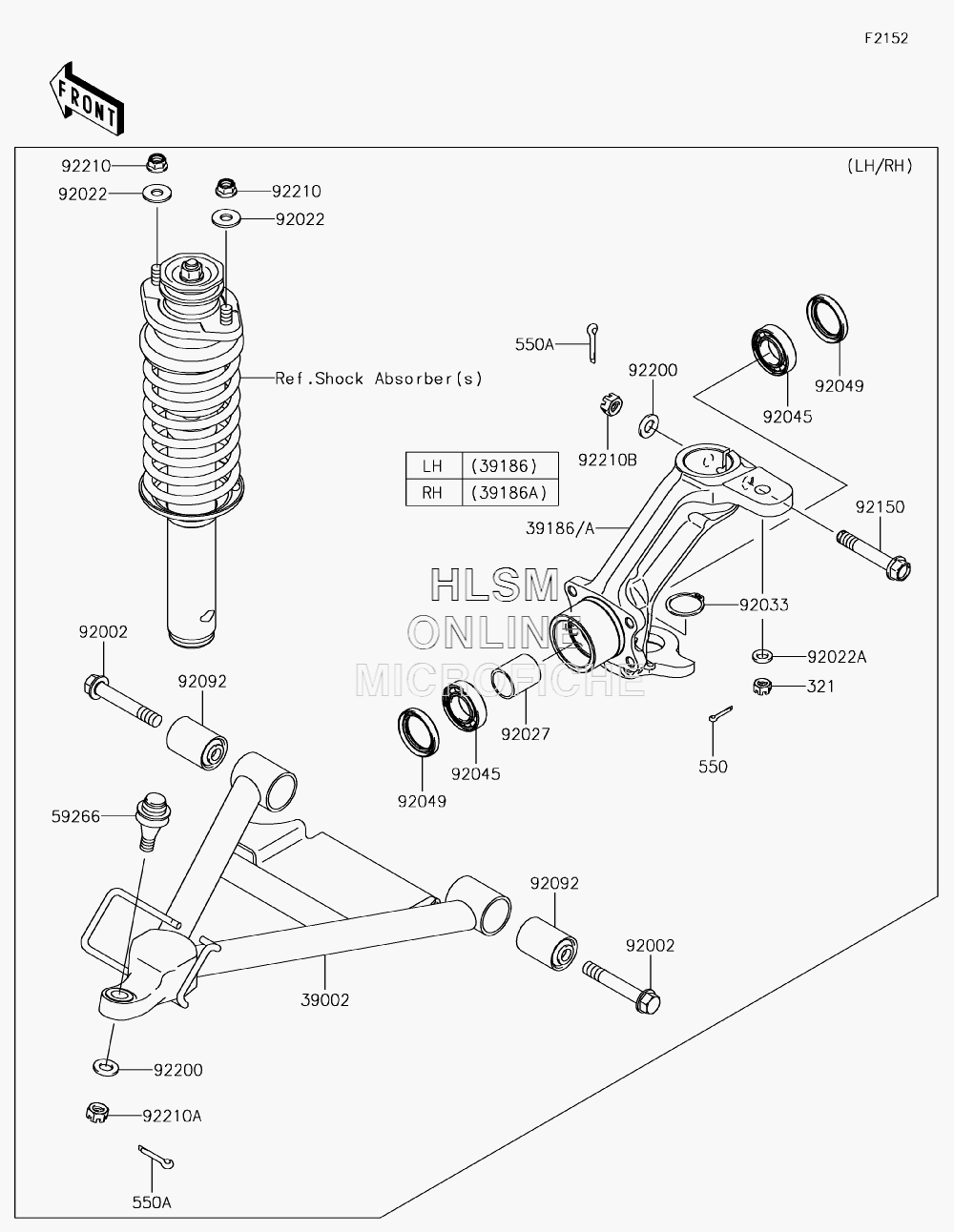

SUSPENSION - FRONT для Kawasaki MULE 4000 TRANS (KAF620WJF) - 2018 года выпуска
-
№АртикулНазвание
-
321321BA1000 NUT-CASTLENUT-CASTLE
-
3900239002-0001 ARM-COMP-SUSPARM-COMP-SUSP
-
3918639186-0074 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0075 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
550550AA2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
550A550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
5926659266-1080 JOINT-BALLJOINT-BALL
-
9200292002-1661 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
92022A92022-1876 WASHER, 10.5X18X2.5WASHER, 10.5X18X2.5
-
9202792027-1538 COLLAR, L=34.5COLLAR, L=34.5
-
9203392033-1262 RING-SNAP, C-TYPE, 32MMRING-SNAP, C-TYPE, 32MM
-
9204592045-3707 BEARING-BALLBEARING-BALL
-
9204992049-1513 SEAL-OIL, SD35X47X7HSSEAL-OIL, SD35X47X7HS
-
9209292092-1065 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1356 BOLT, FLANGED, 12X72BOLT, FLANGED, 12X72
-
9220092200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0395 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
-
92210B92210-7501 NUT, 12MMNUT, 12MM
