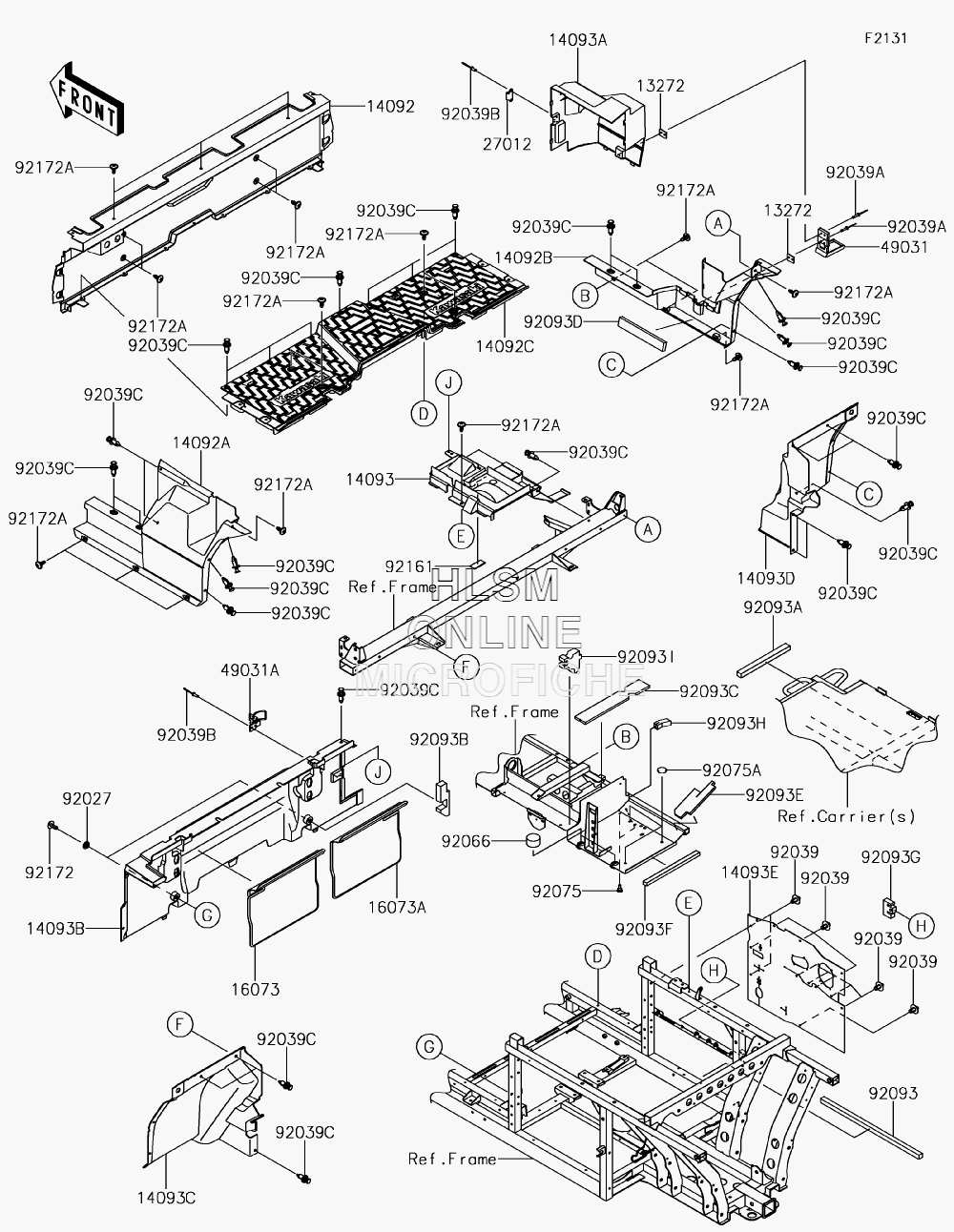

FRAME FITTINGS (REAR) для Kawasaki MULE PRO-DXT (KAF1000HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1327213272-1828 PLATE, LATCHPLATE, LATCH
-
1409214092-1186 COVER, REAR FLOOR, FRONTCOVER, REAR FLOOR, FRONT
-
14092A14092-1190 COVER, SIDE, LEFT HAND, REARCOVER, SIDE, LEFT HAND, REAR
-
14092B14092-1191 COVER, SIDE, RIGHT HAND, REARCOVER, SIDE, RIGHT HAND, REAR
-
14092C14092-1196 COVER, FLOOR, BOTTOMCOVER, FLOOR, BOTTOM
-
1409314093-0296 COVER, DUSTCOVER, DUST
-
14093A14093-0366 COVER, A/CCOVER, A/C
-
14093B14093-0367 COVER, REAR SEATCOVER, REAR SEAT
-
14093C14093-0388 COVER, REAR, FLOOR, MUD, LEFT HANDCOVER, REAR, FLOOR, MUD, LEFT HAND
-
14093D14093-0389 COVER, REAR, FLOOR, MUD, RIGHT HANDCOVER, REAR, FLOOR, MUD, RIGHT HAND
-
14093E14093-0634 COVER, MAINTENANCE ROOM, RUBBERCOVER, MAINTENANCE ROOM, RUBBER
-
1607316073-0814 INSULATOR, LEFT HANDINSULATOR, LEFT HAND
-
16073A16073-0815 INSULATOR, RIGHT HANDINSULATOR, RIGHT HAND
-
2701227012-0806 HOOK, STRIKERHOOK, STRIKER
-
4903149031-0007 LATCH, A/CLATCH, A/C
-
49031A49031-0015 LATCH, TOGGLELATCH, TOGGLE
-
9202792027-1168 COLLAR, L=4.6COLLAR, L=4.6
-
9203992039-0086 RIVETRIVET
-
92039A92039-0739 RIVET, 3.2X13.4RIVET, 3.2X13.4
-
92039B92039-0747 RIVETRIVET
-
92039C92039-0776 RIVETRIVET
-
9206692066-0812 PLUG, 36X20PLUG, 36X20
-
9207592075-1808 DAMPER, 6X10X15DAMPER, 6X10X15
-
92075A92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
9209392093-0631 SEAL, DUST, 20X20X565SEAL, DUST, 20X20X565
-
92093A92093-0633 SEAL, DUST, 20X25X280SEAL, DUST, 20X25X280
-
92093B92093-0642 SEAL, 165X50X25SEAL, 165X50X25
-
92093C92093-0643 SEAL, DUST, 61X368X10SEAL, DUST, 61X368X10
-
92093D92093-0644 SEAL, DUST, 39X255X15SEAL, DUST, 39X255X15
-
92093E92093-0645 SEAL, DUST, 69X207X10SEAL, DUST, 69X207X10
-
92093F92093-0646 SEAL, DUST, 15X305X20SEAL, DUST, 15X305X20
-
92093G92093-0651 SEAL, 52X72X20SEAL, 52X72X20
-
92093H92093-0652 SEAL, 21.5X60X20SEAL, 21.5X60X20
-
92093I92093-0716 SEAL, 99X85X30SEAL, 99X85X30
-
9216192161-1827 DAMPER, 25X60X3.175DAMPER, 25X60X3.175
-
9217292172-0236 SCREW, 6X16SCREW, 6X16
-
92172A92172-0711 SCREW, 6X16SCREW, 6X16
