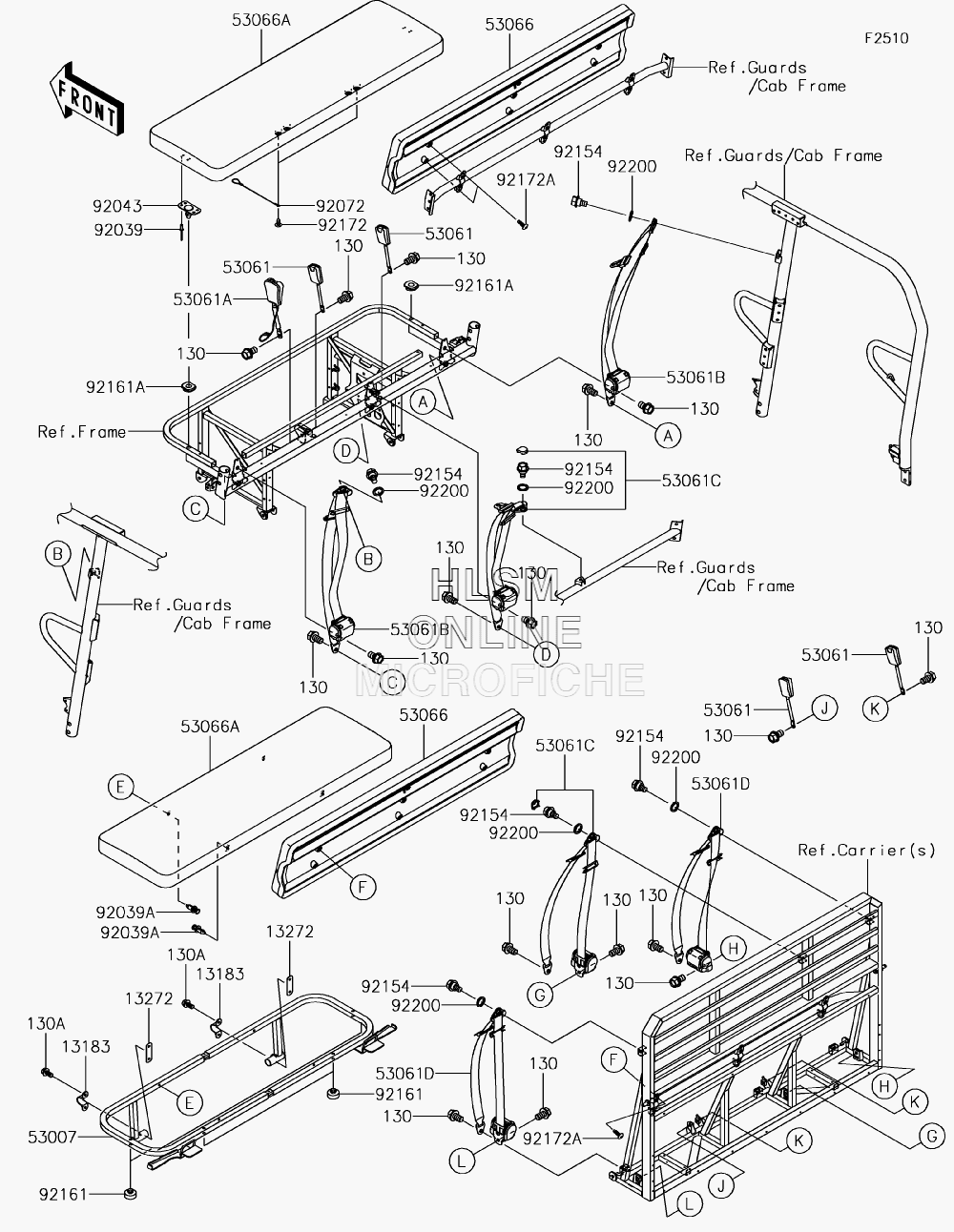

SEAT для Kawasaki MULE PRO-DXT (KAF1000HJF) - 2018 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED, 12X20BOLT-FLANGED, 12X20
-
130A130CA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1327213272-1699 PLATEPLATE
-
5300753007-0364 FRAME-SEATFRAME-SEAT
-
5306153061-0039 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
53061A53061-0338 BELT-SEAT, BUCKLE, SW.BELT-SEAT, BUCKLE, SW.
-
53061B53061-0351 BELT-SEAT, FRONT, LEFT HAND & RIGHT HANDBELT-SEAT, FRONT, LEFT HAND & RIGHT HAND
-
53061C53061-0352 BELT-SEAT, MIDDLEBELT-SEAT, MIDDLE
-
53061D53061-0353 BELT-SEAT, REAR, LEFT HAND & RIGHT HANDBELT-SEAT, REAR, LEFT HAND & RIGHT HAND
-
5306653066-0426-MA SEAT-ASSY, BACK, (BLACK)SEAT-ASSY, BACK, (BLACK)
-
53066A53066-0495-MA SEAT-ASSY, BOTTOM, (BLACK)SEAT-ASSY, BOTTOM, (BLACK)
-
9203992039-0747 RIVETRIVET
-
92039A92039-0776 RIVETRIVET
-
9204392043-0859 PINPIN
-
9207292072-0769 BANDBAND
-
9215492154-1959 BOLT, FLANGED, 10X19.5BOLT, FLANGED, 10X19.5
-
9216192161-1065 DAMPER, SEATDAMPER, SEAT
-
92161A92161-1784 DAMPER, 10.5X30X8.2DAMPER, 10.5X30X8.2
-
9217292172-0284 SCREW, 6X16SCREW, 6X16
-
92172A92172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9220092200-1798 WASHER, 16X22X2WASHER, 16X22X2
