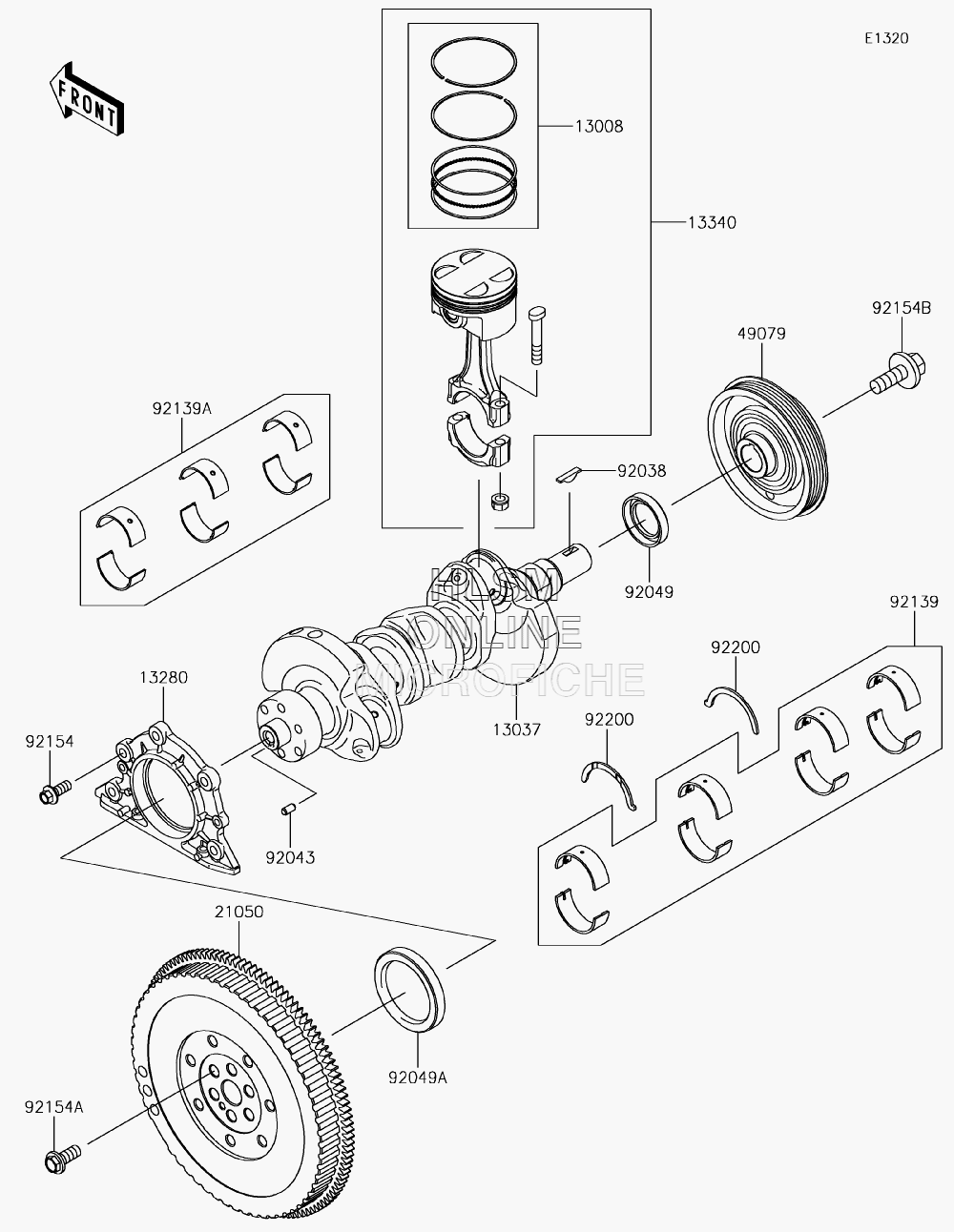

CRANKSHAFT W/ PISTON(S) для Kawasaki MULE PRO-FX EPS LE (KAF820GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1300813008-0561 RING-SET-PISTONRING-SET-PISTON
-
1303713037-0854 CRANKSHAFTCRANKSHAFT
-
1328013280-0826 HOLDERHOLDER
-
1334013340-0003 PISTON-ASSY-ENGINEPISTON-ASSY-ENGINE
-
2105021050-0008 FLYWHEELFLYWHEEL
-
4907949079-0021 PULLEY-BELT, CRANKSHAFTPULLEY-BELT, CRANKSHAFT
-
9203892038-0005 KEYKEY
-
9204392043-0830 PINPIN
-
9204992049-0774 SEAL-OILSEAL-OIL
-
92049A92049-0775 SEAL-OILSEAL-OIL
-
9213992139-0833 BUSHINGBUSHING
-
92139A92139-0838 BUSHINGBUSHING
-
9215492154-1586 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92154A92154-1587 BOLT, FLYWHEELBOLT, FLYWHEEL
-
92154B92154-1831 BOLT, CRANKSHAFT PULLEYBOLT, CRANKSHAFT PULLEY
-
9220092200-1682 WASHERWASHER
