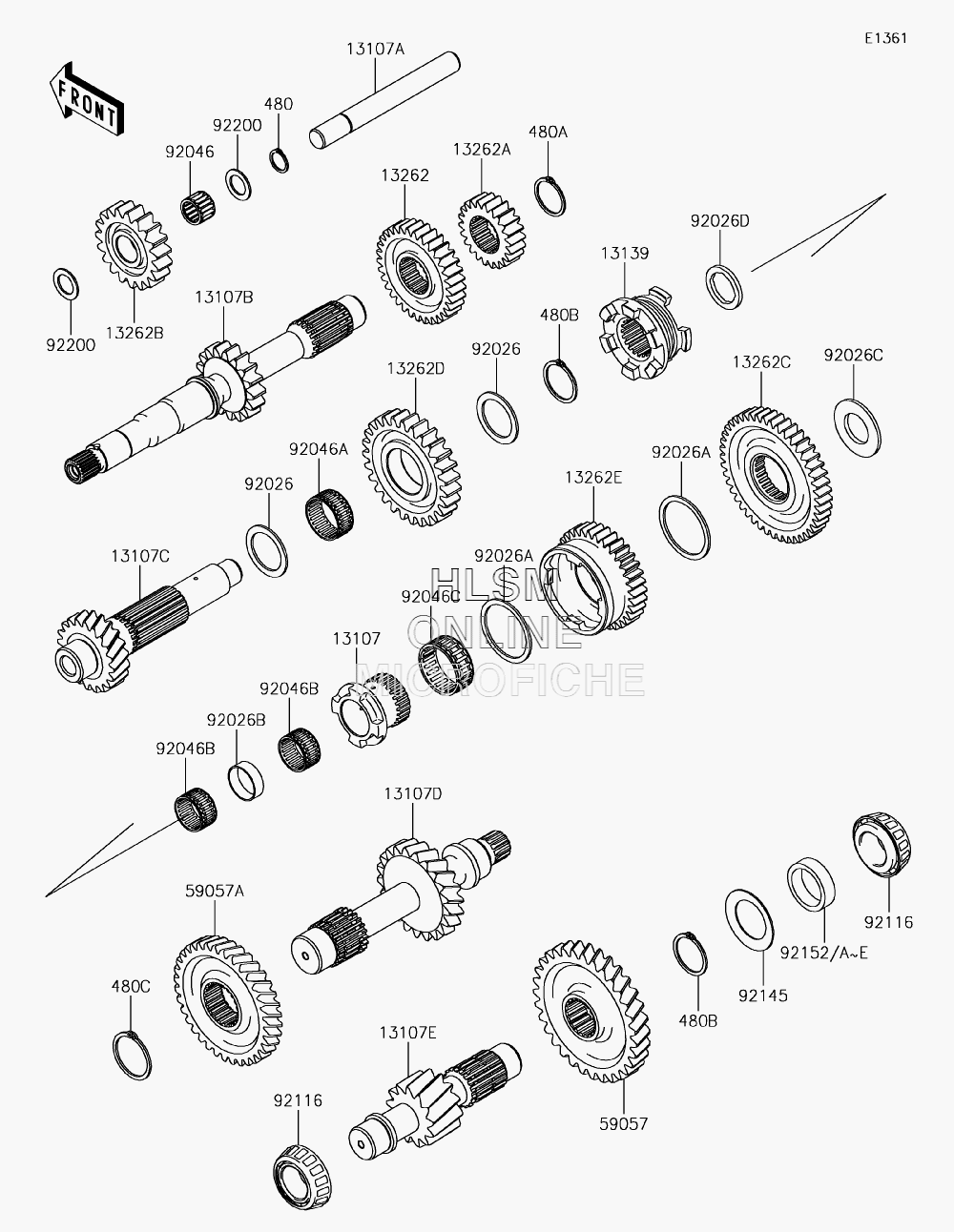

TRANSMISSION для Kawasaki MULE PRO-FX EPS LE (KAF820GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1310713107-0779 SHAFTSHAFT
-
13107A13107-0780 SHAFT, IDLE REVSHAFT, IDLE REV
-
13107B13107-0782 SHAFT, INPUT, 17TSHAFT, INPUT, 17T
-
13107C13107-0783 SHAFT, COUNTER, 20TSHAFT, COUNTER, 20T
-
13107D13107-0784 SHAFT, 3RD, 21TSHAFT, 3RD, 21T
-
13107E13107-0785 SHAFT, 4TH, 13TSHAFT, 4TH, 13T
-
1313913139-0022 SHIFTERSHIFTER
-
1326213262-1085 GEAR, INPUT HI, 33TGEAR, INPUT HI, 33T
-
13262A13262-1086 GEAR, INPUT LOW, 22TGEAR, INPUT LOW, 22T
-
13262B13262-1087 GEAR, IDLE REV, 19TGEAR, IDLE REV, 19T
-
13262C13262-1088 GEAR, COUNTER LOW, 45TGEAR, COUNTER LOW, 45T
-
13262D13262-1089 GEAR, COUNTER REV, 27TGEAR, COUNTER REV, 27T
-
13262E13262-1090 GEAR, COUNTER HI, 34TGEAR, COUNTER HI, 34T
-
480480J1800 CIRCLIP-TYPE-C, 18MMCIRCLIP-TYPE-C, 18MM
-
480A480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
480B480J3500 CIRCLIPCIRCLIP
-
480C480J4000 CIRCLIPCIRCLIP
-
5905759057-0013 GEAR-HELICAL, 31TGEAR-HELICAL, 31T
-
59057A59057-0015 GEAR-HELICAL, 3RD, 35TGEAR-HELICAL, 3RD, 35T
-
9202692026-0765 SPACER, 35.2X47X2SPACER, 35.2X47X2
-
92026A92026-0766 SPACER, 49.2X58X2SPACER, 49.2X58X2
-
92026B92026-0767 SPACER, 29.4X31.8X10SPACER, 29.4X31.8X10
-
92026C92026-0768 SPACERSPACER
-
92026D92026-0795 SPACER, 28.2X39X3.6SPACER, 28.2X39X3.6
-
9204692046-0040 BEARING-NEEDLE, FMJ-182417BEARING-NEEDLE, FMJ-182417
-
92046A92046-0611 BEARING-NEEDLE, 35X40X17BEARING-NEEDLE, 35X40X17
-
92046B92046-0621 BEARING-NEEDLE, KT283317C3BEARING-NEEDLE, KT283317C3
-
92046C92046-1276 BEARING-NEEDLE, HIGH GEARBEARING-NEEDLE, HIGH GEAR
-
9211692116-0007 BEARING-ROLLERBEARING-ROLLER
-
9214592145-1575 SPRINGSPRING
-
9215292152-1815 COLLAR, L=12.1COLLAR, L=12.1
-
92152A92152-1816 COLLAR, L=12.3COLLAR, L=12.3
-
92152B92152-1817 COLLAR, L=12.5COLLAR, L=12.5
-
92152C92152-1818 COLLAR, L=12.7COLLAR, L=12.7
-
92152D92152-1819 COLLAR, L=12.9COLLAR, L=12.9
-
92152E92152-1820 COLLAR, L=13.1COLLAR, L=13.1
-
9220092200-0716 WASHER, 18.2X28X1.5WASHER, 18.2X28X1.5
