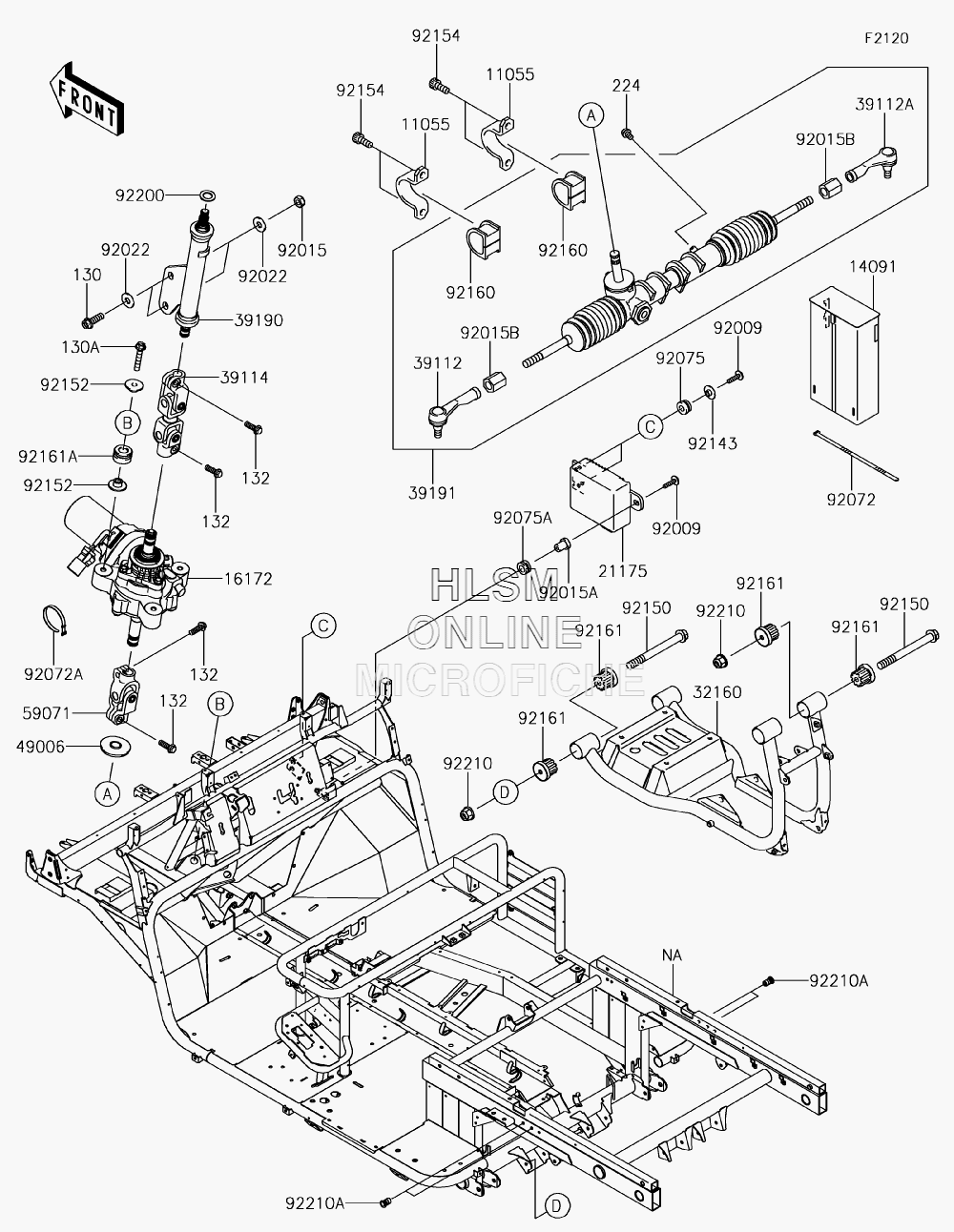

FRAME для Kawasaki MULE 4010 TRANS4X4 CAMO (KAF620SKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105511055-1240 BRACKET, STEERING GEARBRACKET, STEERING GEAR
-
130130BA1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
130A130CA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
132132BA0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
1409114091-7560 COVER, ECUCOVER, ECU
-
1617216172-0028 ACTUATORACTUATOR
-
2117521175-7501 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
224224AA0508 SCREW-PAN-WP-CROS, 5X8SCREW-PAN-WP-CROS, 5X8
-
3216032160-0004 FRAME-COMP, REARFRAME-COMP, REAR
-
3911239112-1068 RODEND-TIE, STEERING GEAR, LEFT HANDRODEND-TIE, STEERING GEAR, LEFT HAND
-
39112A39112-1069 RODEND-TIE, STEERING GEAR, RIGHT HANDRODEND-TIE, STEERING GEAR, RIGHT HAND
-
3911439114-0019 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3919039190-7501 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0021 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
4900649006-1255 BOOT, STEERING SHAFT, LOWERBOOT, STEERING SHAFT, LOWER
-
5907159071-7501 JOINTJOINT
-
9200992009-1400 SCREW, 6X28, (BLACK)SCREW, 6X28, (BLACK)
-
9201592015-1189 NUT, LOCK, 10MM, (BLACK)NUT, LOCK, 10MM, (BLACK)
-
92015A92015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
92015B92015-1864 NUTNUT
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-056 BAND, L=186BAND, L=186
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-294 DAMPERDAMPER
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
9215092150-1731 BOLT, FLANGED, 10X100BOLT, FLANGED, 10X100
-
9215292152-2149 COLLAR, 8.5X30X10.6COLLAR, 8.5X30X10.6
-
9215492154-1434 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9216092160-1084 DAMPER, STEERING GEARDAMPER, STEERING GEAR
-
9216192161-0800 DAMPERDAMPER
-
92161A92161-7517 DAMPER, ACTUATORDAMPER, ACTUATOR
-
9220092200-0460 WASHER, 15X25X1.6WASHER, 15X25X1.6
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
