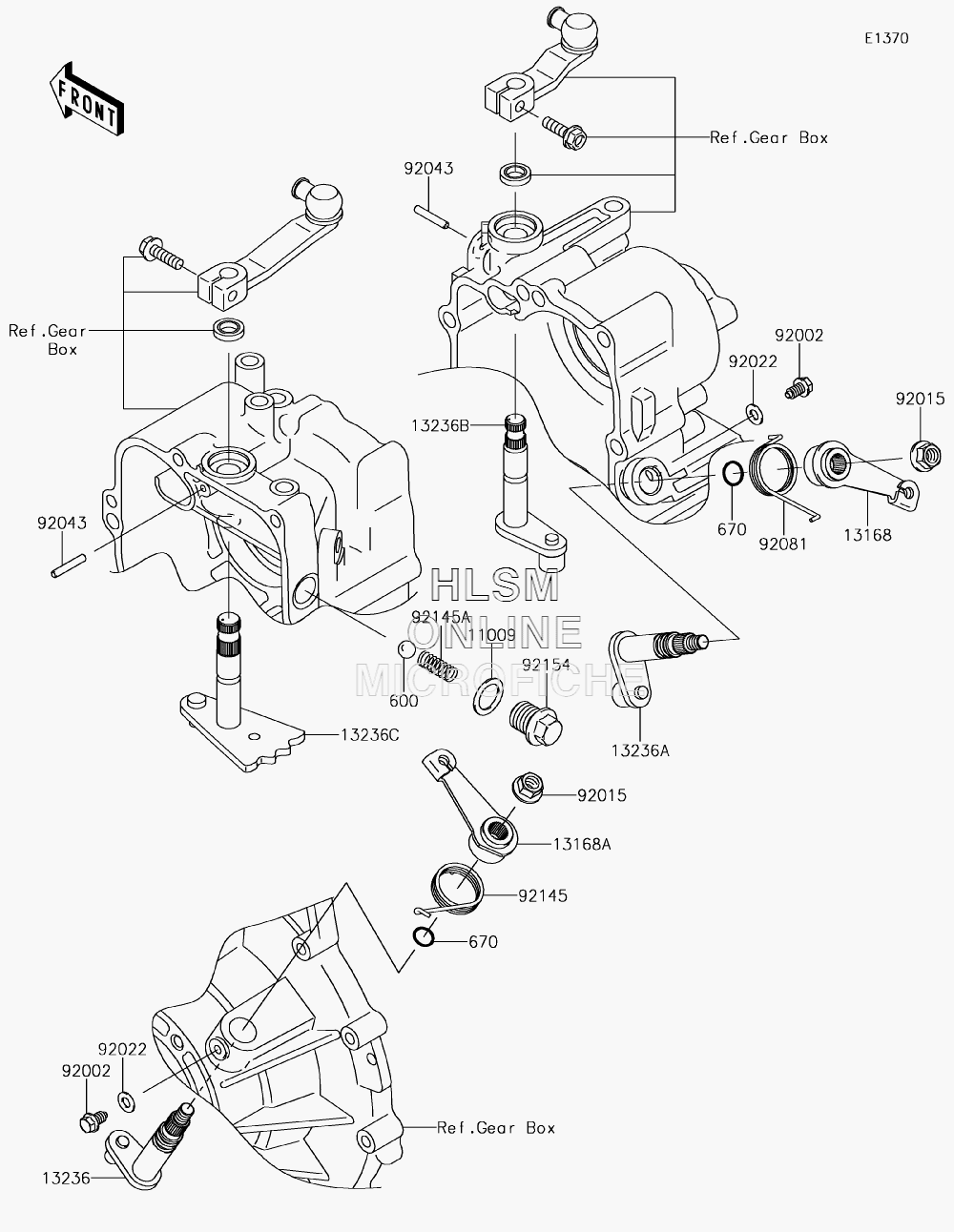

GEAR CHANGE MECHANISM для Kawasaki MULE 4010 TRANS4X4 CAMO (KAF620SKF) - 2019 года выпуска
-
№АртикулНазвание
-
1100911009-1008 GASKET, 15.5X22X1GASKET, 15.5X22X1
-
1316813168-1268 LEVERLEVER
-
13168A13168-1523 LEVER, DIFF LOCKLEVER, DIFF LOCK
-
1323613236-1219 LEVER-COMP, DIFF LOCKLEVER-COMP, DIFF LOCK
-
13236A13236-1247 LEVER-COMP, CHANGE, 2WD/4WDLEVER-COMP, CHANGE, 2WD/4WD
-
13236B13236-1360 LEVER-COMP, HI/LOWLEVER-COMP, HI/LOW
-
13236C13236-1366 LEVER-COMP, FR/RRLEVER-COMP, FR/RR
-
600600A1300 BALL-STEEL, 13/32BALL-STEEL, 13/32
-
670670B2010 O RING, 10MMO RING, 10MM
-
9200292002-1962 BOLT, FLANGED-SMALL, 6X8.1X2.5BOLT, FLANGED-SMALL, 6X8.1X2.5
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9204392043-1415 PINPIN
-
9208192081-1853 SPRINGSPRING
-
9214592145-0253 SPRINGSPRING
-
92145A92145-0949 SPRINGSPRING
-
9215492154-1139 BOLT, NEUTRAL POSITIONBOLT, NEUTRAL POSITION
