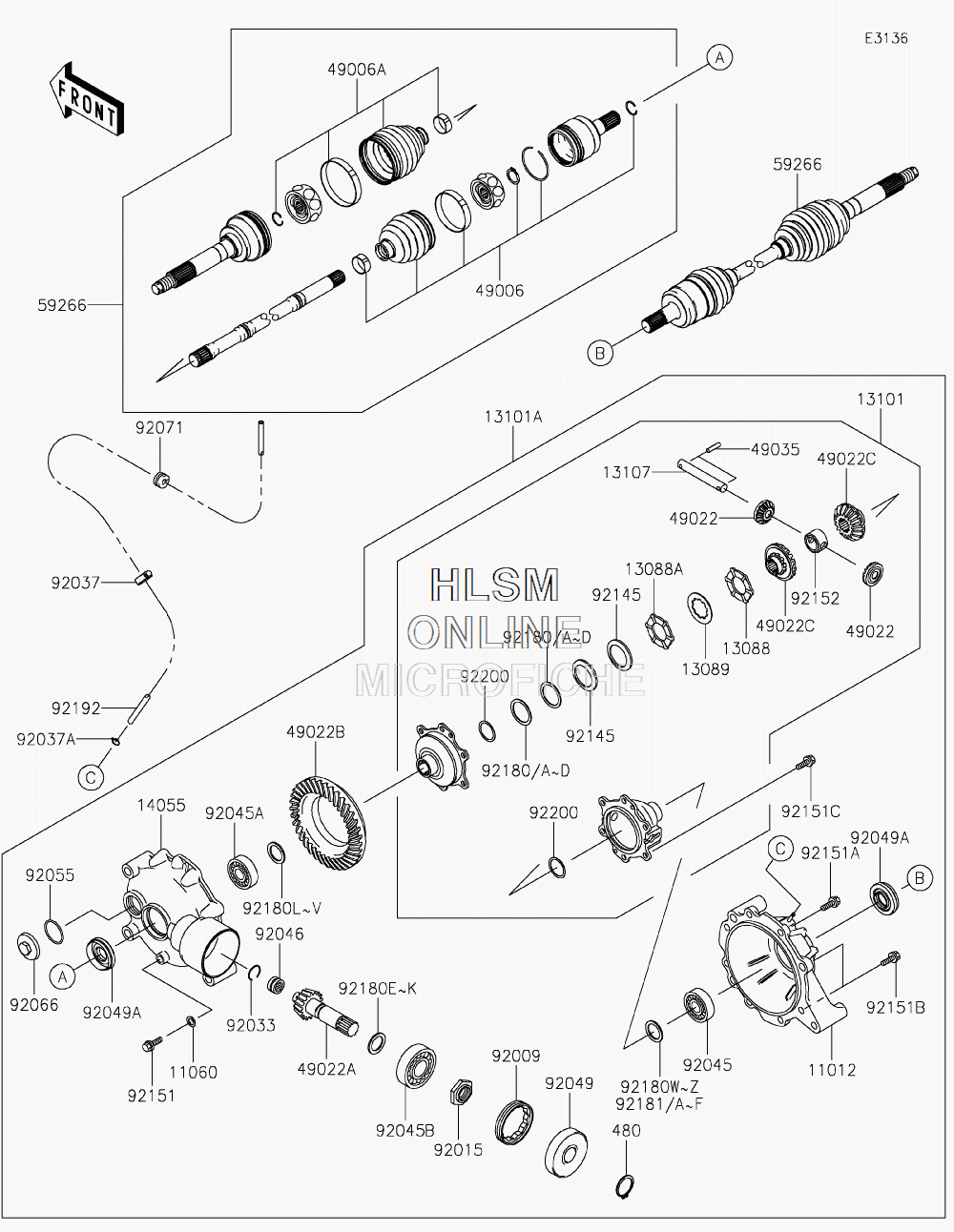

DRIVE SHAFT (FRONT) для Kawasaki MULE SX 4X4 FI (KAF400PKS) - 2019 года выпуска
-
№АртикулНазвание
-
1101211012-1955 CAP, DRIVE SHAFTCAP, DRIVE SHAFT
-
1106011060-1735 GASKETGASKET
-
1308813088-0008 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0009 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1118 PLATE-CLUTCHPLATE-CLUTCH
-
1310113101-0047 GEAR-ASSYGEAR-ASSY
-
13101A13101-0112 GEAR-ASSY, FRONT DIFFERENTIALGEAR-ASSY, FRONT DIFFERENTIAL
-
1310713107-1369 SHAFTSHAFT
-
1405514055-1129 CASE-GEARCASE-GEAR
-
480480J2200 CIRCLIP-TYPE-C, 22MMCIRCLIP-TYPE-C, 22MM
-
4900649006-0074 BOOT, DOJBOOT, DOJ
-
49006A49006-0105 BOOT, UJBOOT, UJ
-
4902249022-0017 GEAR-BEVELGEAR-BEVEL
-
49022A49022-1147 GEAR-BEVELGEAR-BEVEL
-
49022B49022-1148 GEAR-BEVELGEAR-BEVEL
-
49022C49022-1153 GEAR-BEVELGEAR-BEVEL
-
4903549035-1065 PIN-SPRINGPIN-SPRING
-
5926659266-0039 JOINT-BALL, FRONTJOINT-BALL, FRONT
-
9200992009-1762 SCREW, LOCKSCREW, LOCK
-
9201592015-1992 NUT, LOCKNUT, LOCK
-
9203392033-1289 RING-SNAPRING-SNAP
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1835 CLAMPCLAMP
-
9204592045-0147 BEARING-BALLBEARING-BALL
-
92045A92045-1331 BEARING-BALLBEARING-BALL
-
92045B92045-1332 BEARING-BALLBEARING-BALL
-
9204692046-1248 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1454 SEAL-OILSEAL-OIL
-
92049A92049-1455 SEAL-OILSEAL-OIL
-
9205592055-1553 RING-O, OIL FILLERRING-O, OIL FILLER
-
9206692066-1441 PLUG, OIL FILLERPLUG, OIL FILLER
-
9207192071-0012 GROMMETGROMMET
-
9214592145-1053 SPRINGSPRING
-
9215192151-1051 BOLT, SEALINGBOLT, SEALING
-
92151A92151-1052 BOLT, FLANGEDBOLT, FLANGED
-
92151B92151-1053 BOLT, FLANGEDBOLT, FLANGED
-
92151C92151-1054 BOLTBOLT
-
9215292152-0145 COLLARCOLLAR
-
9218092180-1214 SHIM, T=1.0SHIM, T=1.0
-
92180A92180-1215 SHIM, T=1.2SHIM, T=1.2
-
92180B92180-1216 SHIM, T=1.4SHIM, T=1.4
-
92180C92180-1217 SHIM, T=1.6SHIM, T=1.6
-
92180D92180-1218 SHIM, T=1.8SHIM, T=1.8
-
92180E92180-1219 SHIM, 26X34X1.82SHIM, 26X34X1.82
-
92180F92180-1220 SHIM, 26X34X1.88SHIM, 26X34X1.88
-
92180G92180-1221 SHIM, 26X34X1.94SHIM, 26X34X1.94
-
92180H92180-1222 SHIM, 26X34X2.00SHIM, 26X34X2.00
-
92180I92180-1223 SHIM, 26X34X2.06SHIM, 26X34X2.06
-
92180J92180-1224 SHIM, 26X34X2.12SHIM, 26X34X2.12
-
92180K92180-1225 SHIM, 26X34X2.18SHIM, 26X34X2.18
-
92180L92180-1231 SHIM, T=1.75SHIM, T=1.75
-
92180M92180-1232 SHIM, T=1.80SHIM, T=1.80
-
92180N92180-1233 SHIM, T=1.85SHIM, T=1.85
-
92180O92180-1234 SHIM, T=1.90SHIM, T=1.90
-
92180P92180-1235 SHIM, T=1.95SHIM, T=1.95
-
92180Q92180-1236 SHIM, T=2.00SHIM, T=2.00
-
92180R92180-1237 SHIM, T=2.05SHIM, T=2.05
-
92180S92180-1238 SHIM, T=2.10SHIM, T=2.10
-
92180T92180-1239 SHIM, T=2.15SHIM, T=2.15
-
92180U92180-1240 SHIM, T=2.20SHIM, T=2.20
-
92180V92180-1241 SHIM, T=2.25SHIM, T=2.25
-
92180W92180-1254 SHIM, T=0.75SHIM, T=0.75
-
92180X92180-1255 SHIM, T=0.80SHIM, T=0.80
-
92180Y92180-1256 SHIM, T=0.85SHIM, T=0.85
-
92180Z92180-1257 SHIM, T=0.90SHIM, T=0.90
-
9218192180-1258 SHIM, T=0.95SHIM, T=0.95
-
92181A92180-1259 SHIM, T=1.00SHIM, T=1.00
-
92181B92180-1260 SHIM, T=1.05SHIM, T=1.05
-
92181C92180-1261 SHIM, T=1.10SHIM, T=1.10
-
92181D92180-1262 SHIM, T=1.15SHIM, T=1.15
-
92181E92180-1263 SHIM, T=1.20SHIM, T=1.20
-
92181F92180-1264 SHIM, T=1.25SHIM, T=1.25
-
9219292192-0165 TUBE, 4X7X1100TUBE, 4X7X1100
-
9220092200-1344 WASHERWASHER
