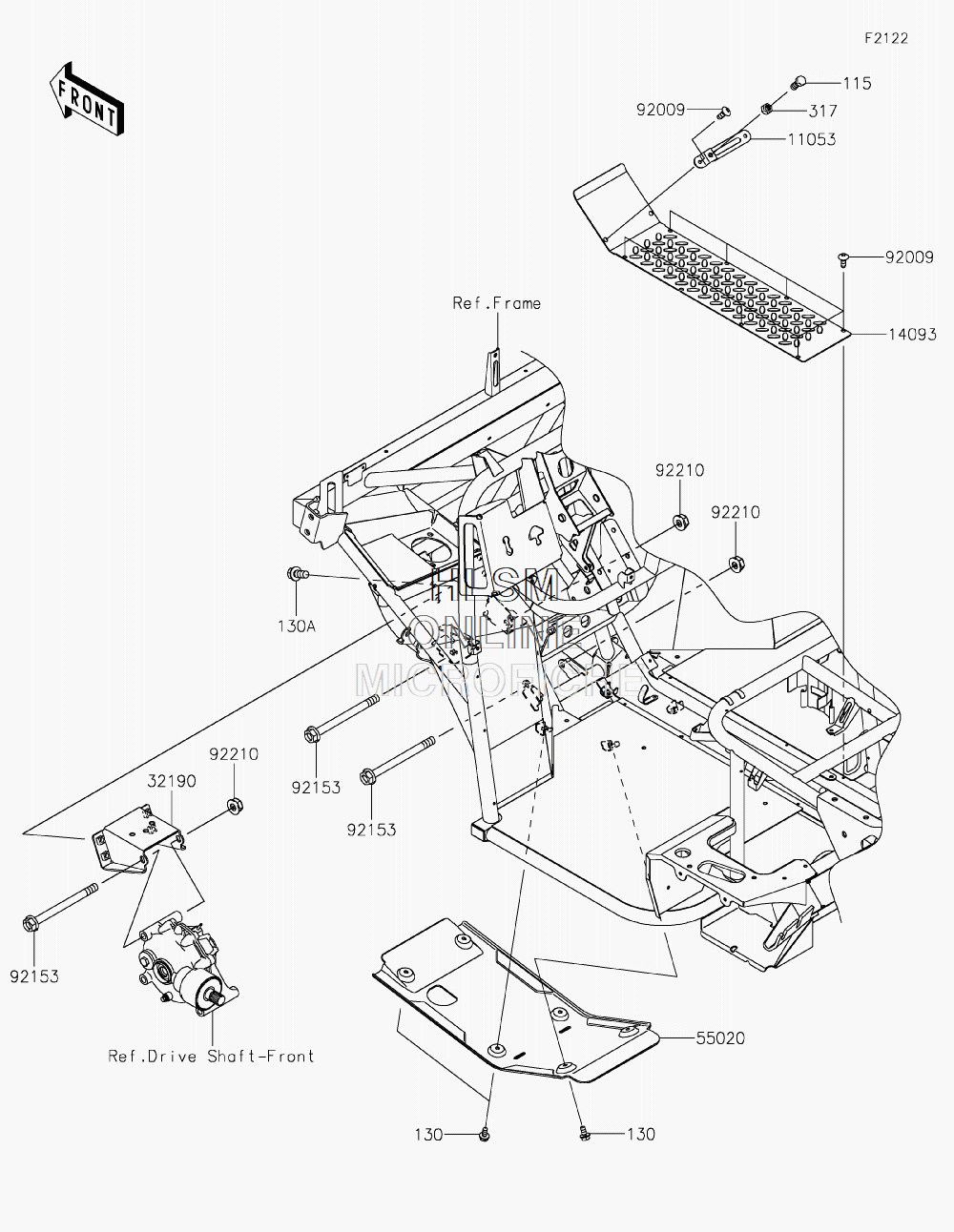

ENGINE MOUNT для Kawasaki MULE SX 4X4 FI (KAF400PKS) - 2019 года выпуска
-
№АртикулНазвание
-
1105311053-1670 BRACKET, THROTTLE LEVERBRACKET, THROTTLE LEVER
-
115115BA0820 BOLT-SMALL-UPSET, 8X20BOLT-SMALL-UPSET, 8X20
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
1409314093-0469 COVER, FLOOR, CENTERCOVER, FLOOR, CENTER
-
317317BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3219032190-0639 BRACKET-ENGINEBRACKET-ENGINE
-
5502055020-0165 GUARD, FRONT DIFFGUARD, FRONT DIFF
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9215392153-7502 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
