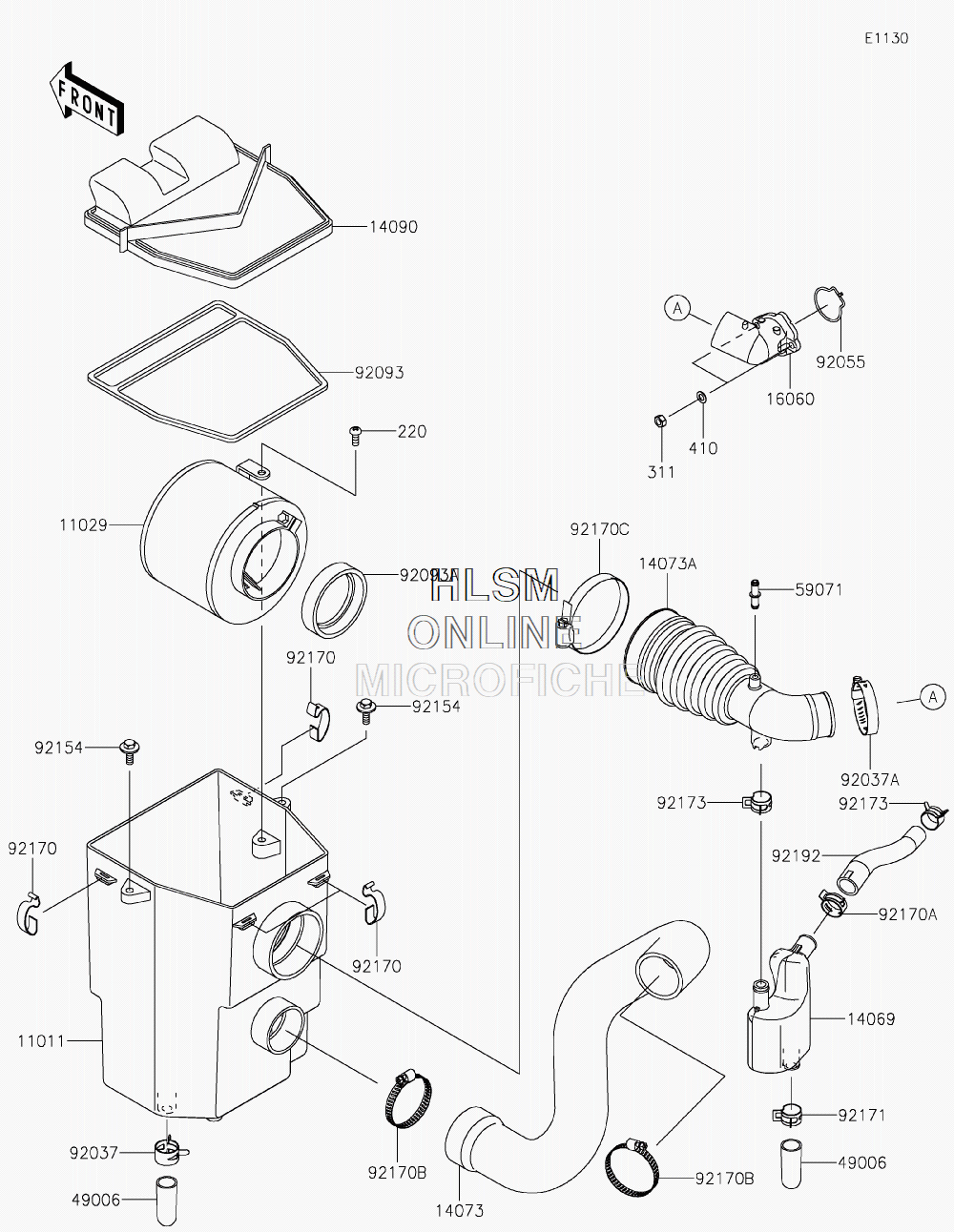

AIR CLEANER для Kawasaki MULE SX 4X4 XC FI (KAF400RKS) - 2019 года выпуска
-
№АртикулНазвание
-
1101111011-1367 CASE-AIR FILTERCASE-AIR FILTER
-
1102911029-1004 ELEMENT-ASSY-AIR FILTERELEMENT-ASSY-AIR FILTER
-
1406914069-0030 BREATHERBREATHER
-
1407314073-0072 DUCT, FRAME-AIR FILTERDUCT, FRAME-AIR FILTER
-
14073A14073-0893 DUCT, AIR FILTER-IN.PIPEDUCT, AIR FILTER-IN.PIPE
-
1409014090-1106 COVER, AIR FILTERCOVER, AIR FILTER
-
1606016060-0752 PIPE-INTAKEPIPE-INTAKE
-
220220AA0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
311311AA0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
4900649006-1351 BOOTBOOT
-
5907159071-3717 JOINTJOINT
-
9203792037-1460 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
92037A92037-506 CLAMPCLAMP
-
9205592055-0901 RING-O, PIPE-TBRING-O, PIPE-TB
-
9209392093-1241 SEAL, AIR FILTERSEAL, AIR FILTER
-
92093A92093-1322 SEAL, DUSTSEAL, DUST
-
9215492154-1516 BOLT, WP, 6X20BOLT, WP, 6X20
-
9217092170-1211 CLAMP, AIR FILTERCLAMP, AIR FILTER
-
92170A92170-1640 CLAMPCLAMP
-
92170B92170-1674 CLAMPCLAMP
-
92170C92170-1679 CLAMPCLAMP
-
9217192171-1277 CLAMPCLAMP
-
9217392173-7003 CLAMPCLAMP
-
9219292192-1935 TUBE, BREATHERTUBE, BREATHER
