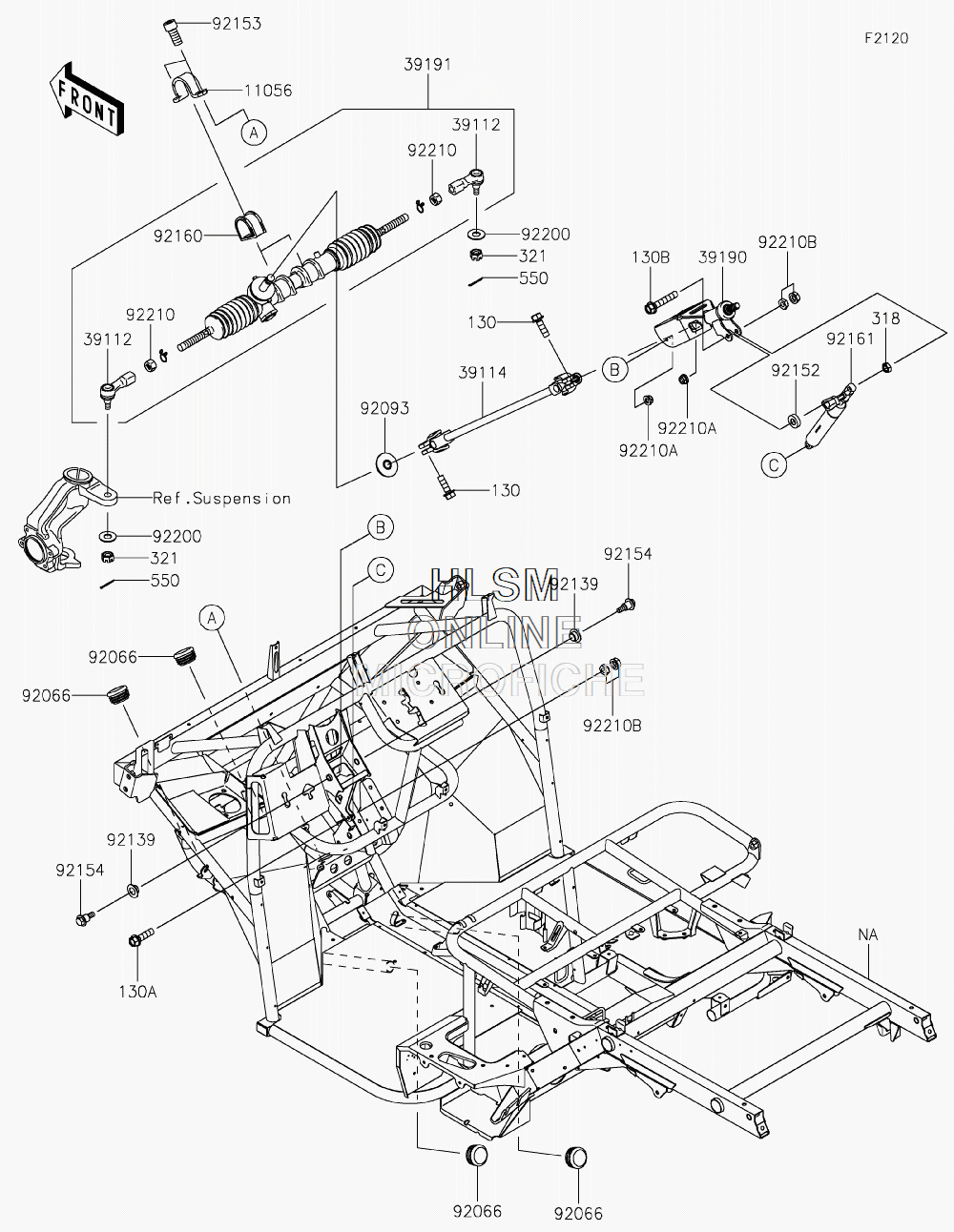

FRAME для Kawasaki MULE SX 4X4 XC FI (KAF400RKS) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-2238 BRACKET, STEERING GEARBRACKET, STEERING GEAR
-
130130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130A130CA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130B130CA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
318318BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
321321BA1000 NUT-CASTLENUT-CASTLE
-
3911239112-0008 RODEND-TIE, STEERING GEARRODEND-TIE, STEERING GEAR
-
3911439114-0022 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3919039190-0006 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0023 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
550550AA2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
9206692066-0036 PLUGPLUG
-
9209392093-1313 SEALSEAL
-
9213992139-0230 BUSHINGBUSHING
-
9215292152-1848 COLLAR, 8.2X18X5COLLAR, 8.2X18X5
-
9215392153-1269 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9215492154-1320 BOLT, 6X21.5BOLT, 6X21.5
-
9216092160-1084 DAMPER, STEERING GEARDAMPER, STEERING GEAR
-
9216192161-1825 DAMPER, GAS SPRINGDAMPER, GAS SPRING
-
9220092200-2009 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
9221092210-0217 NUT, 14MMNUT, 14MM
-
92210A92210-0303 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92210B92210-0934 NUT, HARD LOCK, 8MMNUT, HARD LOCK, 8MM
