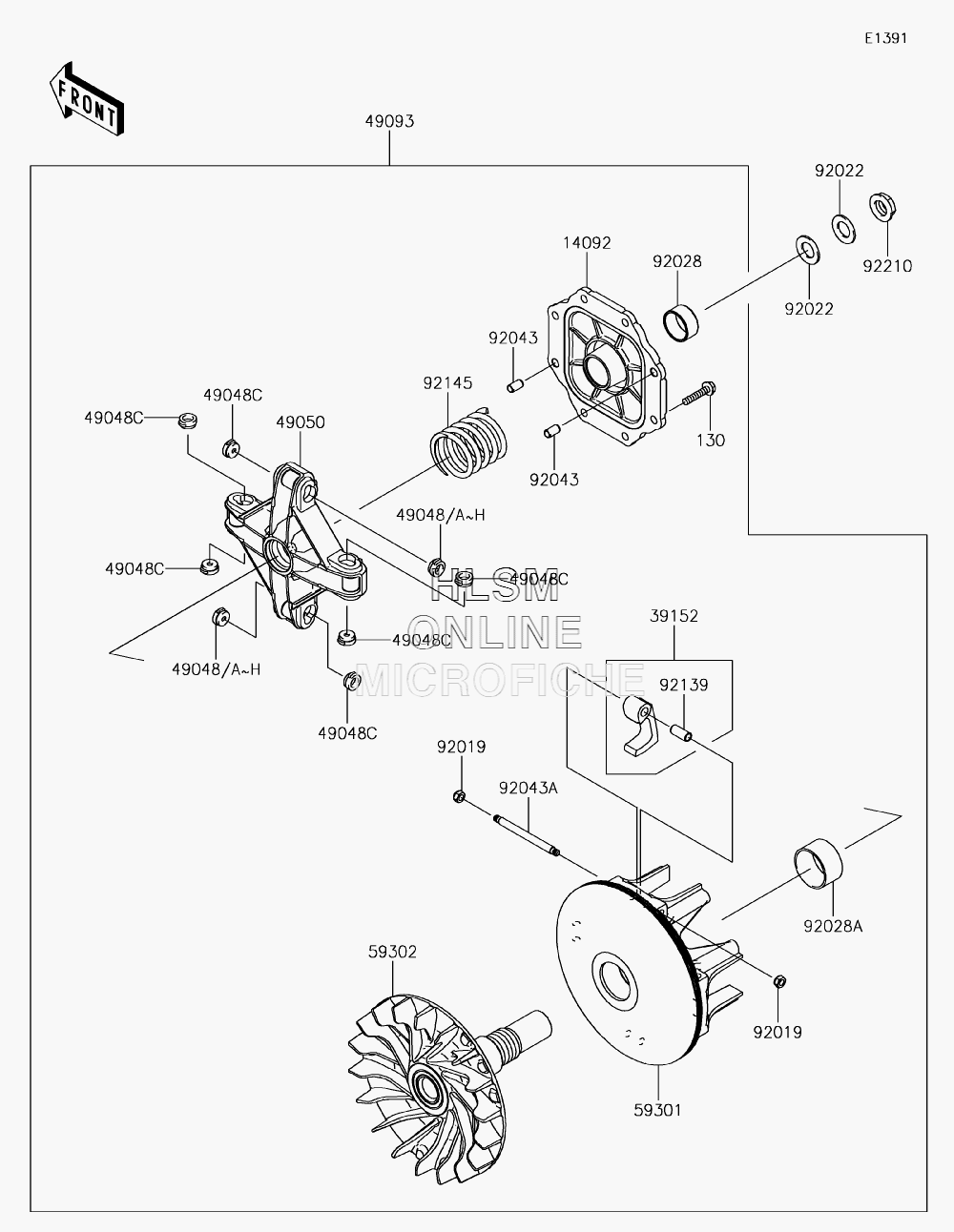

DRIVE CONVERTER для Kawasaki TERYX4 CAMO (KRT800HKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130CA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1409214092-1107 COVERCOVER
-
3915239152-0042 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1087 SHOE, T=7.2SHOE, T=7.2
-
49048A49048-1088 SHOE, T=7.3SHOE, T=7.3
-
49048B49048-1089 SHOE, T=7.4SHOE, T=7.4
-
49048C49048-1090 SHOE, T=7.5SHOE, T=7.5
-
49048D49048-1091 SHOE, T=7.6SHOE, T=7.6
-
49048E49048-1092 SHOE, T=7.7SHOE, T=7.7
-
49048F49048-1093 SHOE, T=7.8SHOE, T=7.8
-
49048G49048-1094 SHOE, T=7.9SHOE, T=7.9
-
49048H49048-1095 SHOE, T=8.0SHOE, T=8.0
-
4905049050-0039 SPIDERSPIDER
-
4909349093-0049 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-0029 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-0087 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1356 WASHER, 16.3X29X1.75WASHER, 16.3X29X1.75
-
9202892028-1900 BUSHING, KICK LEVER, OUTSIDEBUSHING, KICK LEVER, OUTSIDE
-
92028A92028-1975 BUSHINGBUSHING
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1688 PINPIN
-
9213992139-0852 BUSHINGBUSHING
-
9214592145-0958 SPRINGSPRING
-
9221092210-0350 NUT, LEFT HANDED, 16MMNUT, LEFT HANDED, 16MM
