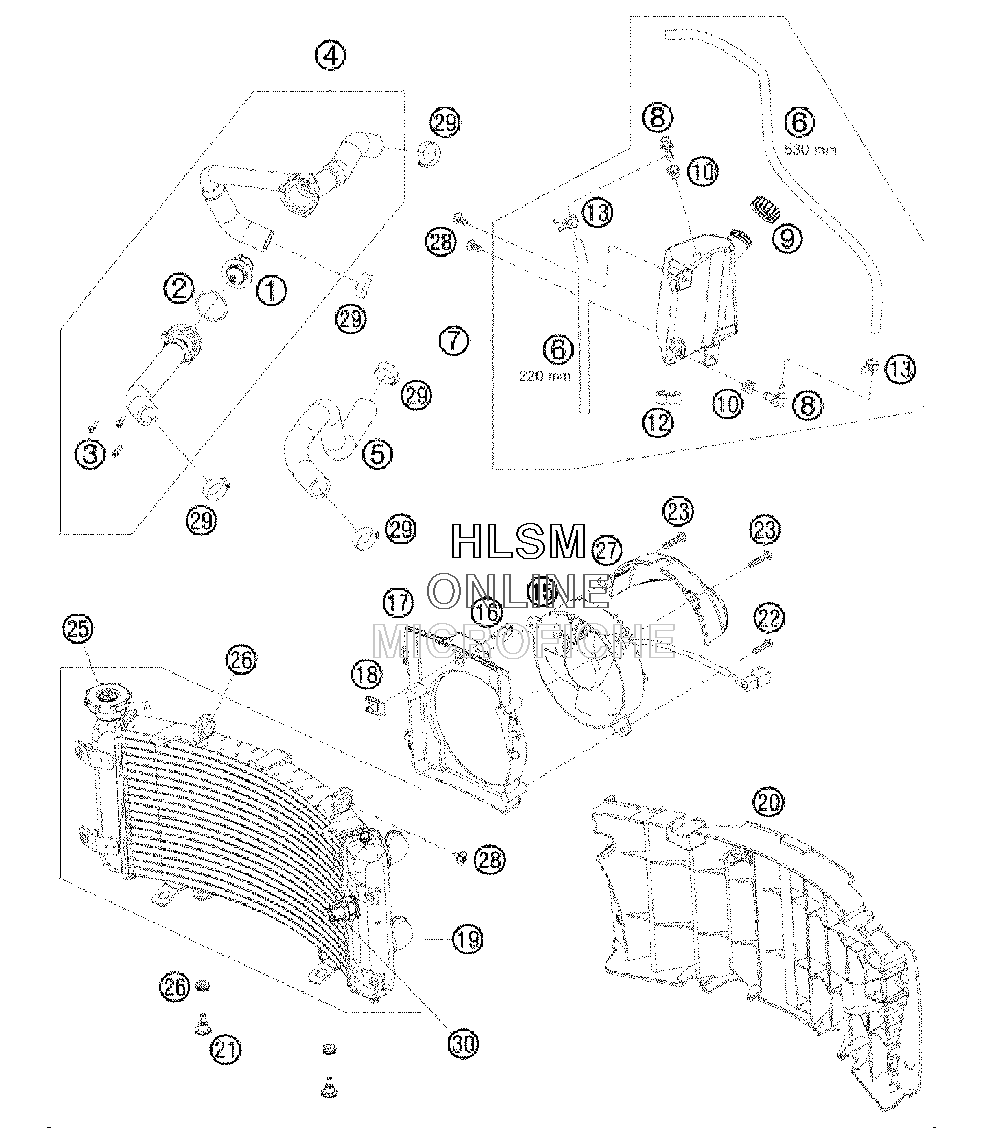

COOLING SYSTEM для Ktm 450 XC - 2009 года выпуска
-
№АртикулНазвание
-
159435017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
20770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
30016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
483035090000 COOLING WATER HOSE SYSTEM R/SCOOLING WATER HOSE SYSTEM R/S
-
583035027000 PREFORMED HOSE RADIATOR-CYL.PREFORMED HOSE RADIATOR-CYL.
-
660035067001 HOSE 6X10 EPDMHOSE 6X10 EPDM
-
783035065000 EXPANSION TANKEXPANSION TANK
-
860035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
960035066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
1060035069000 RUBBER GROMMET 6X9X13MMRUBBER GROMMET 6X9X13MM
-
1260038039000 DISTANCE HOLDER 10/10 BLACKDISTANCE HOLDER 10/10 BLACK
-
1358031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
1560035041000 FAN L/SFAN L/S
-
160024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1783035041000 FAN COWL ATVFAN COWL ATV
-
1854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1983035010000 RADIATOR ATVRADIATOR ATV
-
2083035040000 RADIATOR PROTECTORRADIATOR PROTECTOR
-
2160035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
220017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
230017060303 SPECIAL SCREW T60 6X30SPECIAL SCREW T60 6X30
-
2559035009000 RADIAT.CAP 20,3PSIRADIAT.CAP 20,3PSI
-
2641001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
2783035042000 AIR CONDUCTION COWL ATVAIR CONDUCTION COWL ATV
-
280024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
2910001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
3083035045000 THERMOSWITCH 80-85 DGTHERMOSWITCH 80-85 DG
